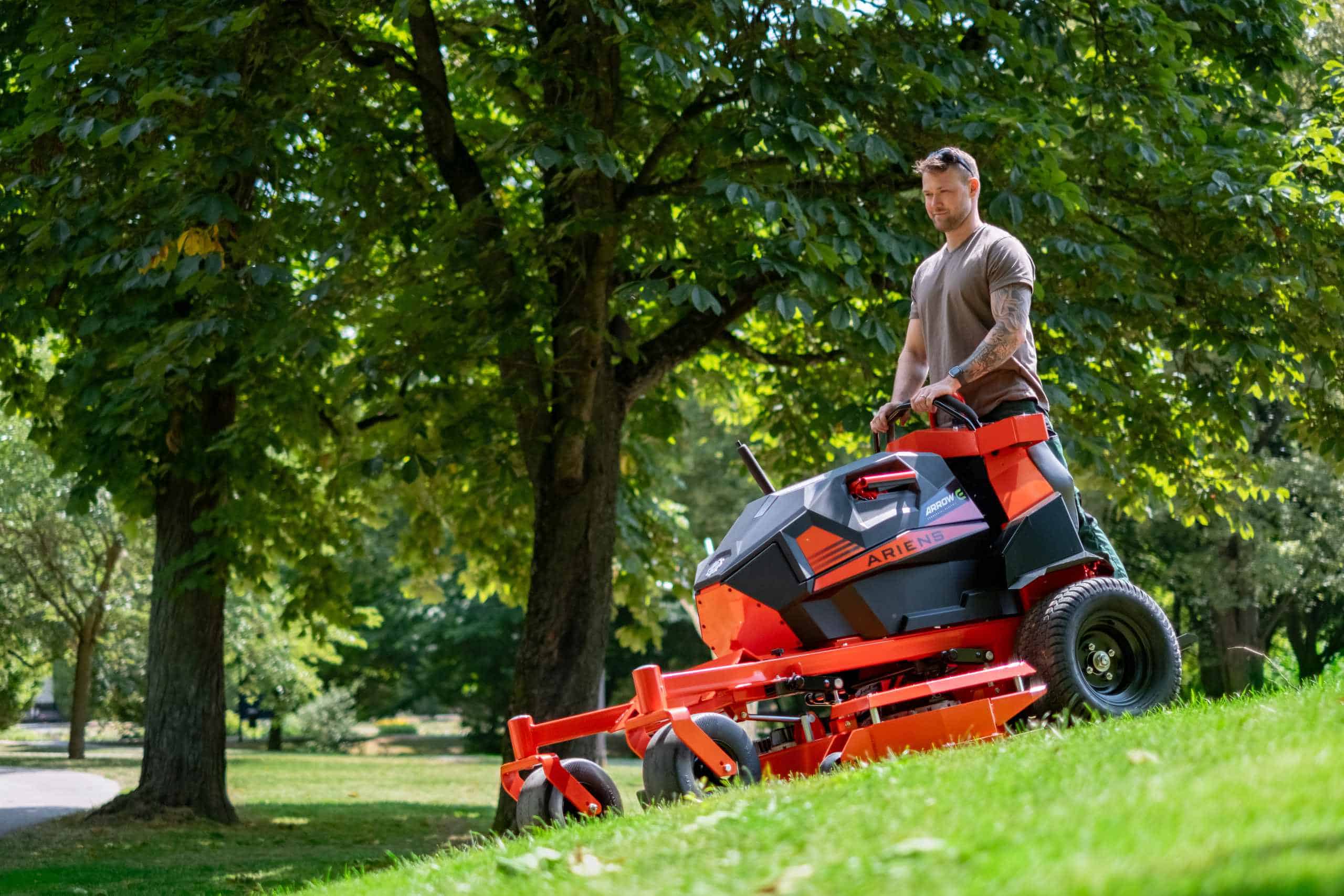

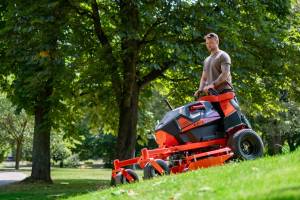

ARROW E 48
Maximum maneuverability with gentle working posture in a standing position – With Li-Ion rechargeable battery system
Stand-on mowers are comfortable and fast, but particularly compact, agile and spacesaving. Your back and muscles will thank you for the upright working position.

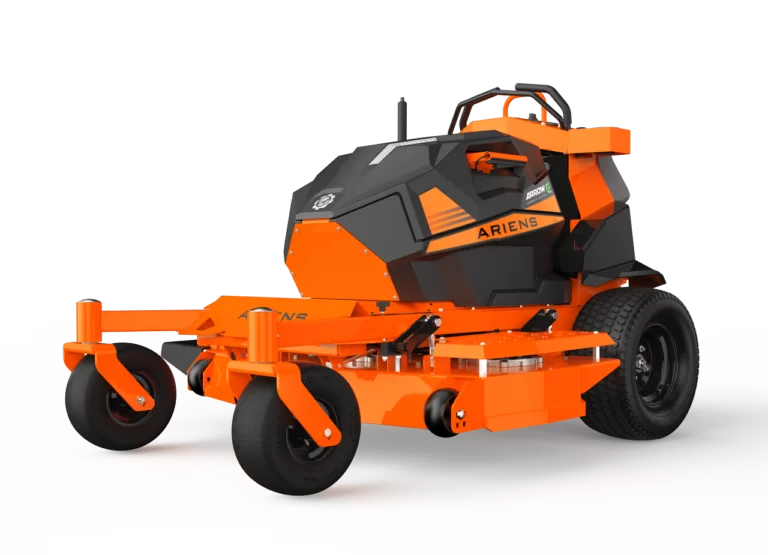

The ARROW E 48 is a fully commercial battery-powered stand-on mower. Features a 122cm (48″) side discharge cutting deck. Designed for mowing in areas where noise and carbon emissions are restricted.
- Powered by four interchangeable FusionCore lithium-ion 56V DC, 4kWh batteries
- Features patent-pending spindle technology, designed to absorb impact with minimal damage to spindles
- QuickSwap battery system enables all-day cutting (dependent on cutting conditions)
- Charge time of 5.3 – 12 hours (depending on charger)
- Features a 122cm (48″) fabricated side discharge deck constructed of strong 4.5mm steel
- Optional mulch kit available
- Intuitive controls
- Folding operator platform for maximum versatility
- ECO mode – increases battery life
- LED interface displays important information
- Foot-assisted cutter deck adjustment
- 5-year or 1500 hours warranty/ 3-year battery warranty
*Photos and illustrations are a representation of the product, actual product may differ
Einsätze
Merkmale & Vorteile
4 individual 56V battery packs of 4 kWh each = 16 kWh total capacity. Premium Panasonic Li-NMC cells.
The swappable battery system gives you the capability to mow all day*. When batteries run out, just swap them in seconds and continue working. The Ariens FusionCore battery system is currently the only commercial system on the market with swappable batteries. It allows unrivalled flexibility and compatibility between the ZENITH E and ARROW E.
* Depending upon operational hours, operator usage and cutting conditions
The high-performance spindle motors of the knives are equipped with a slip clutch. In the event of a collision with a foreign object, it allows the blade to "slip" and thus protect the motor from damage. If the worst comes to the worst, the cutter shafts and lower bearings can be replaced.

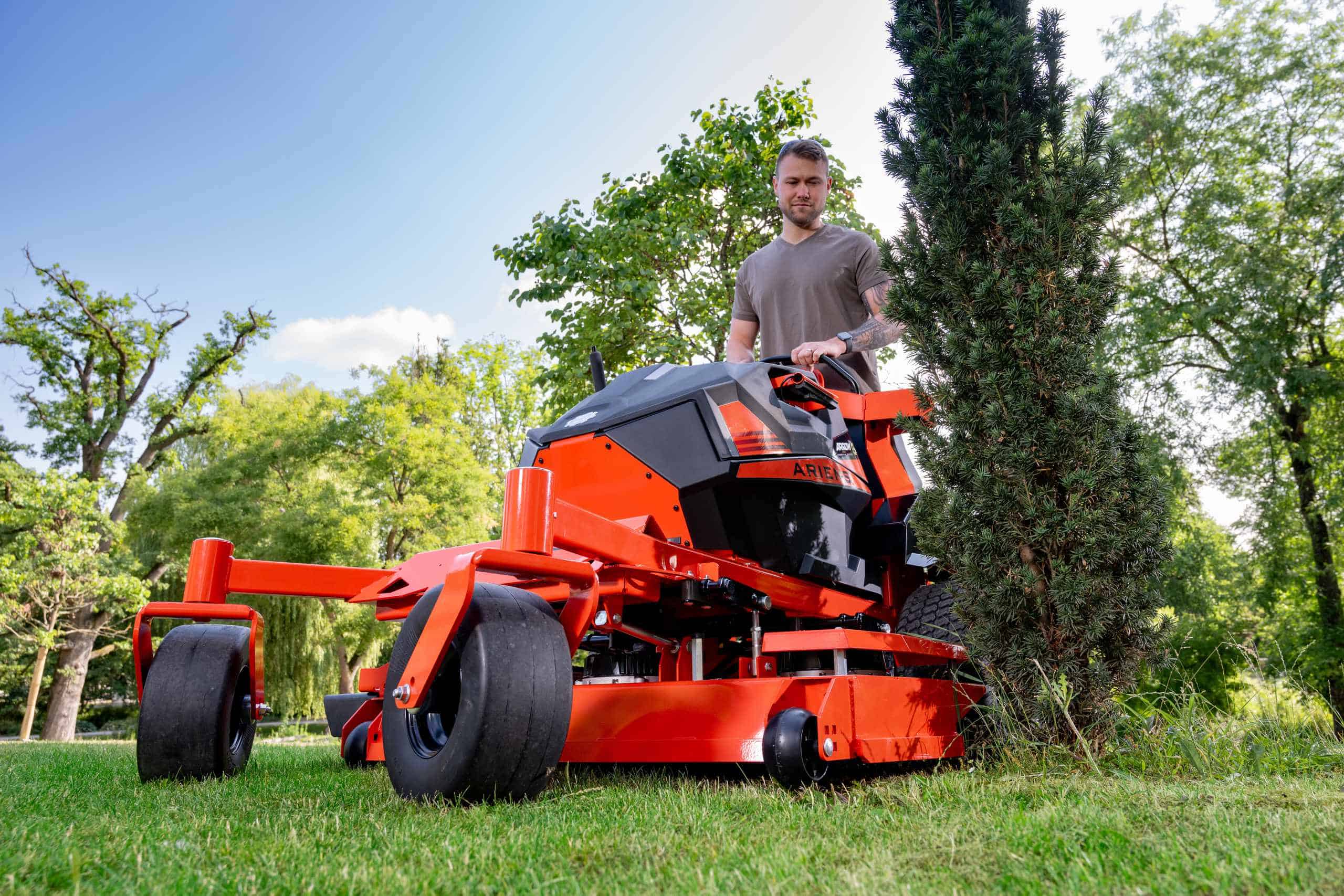

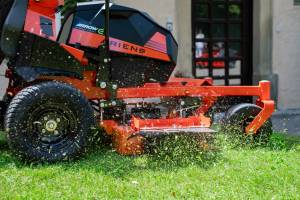

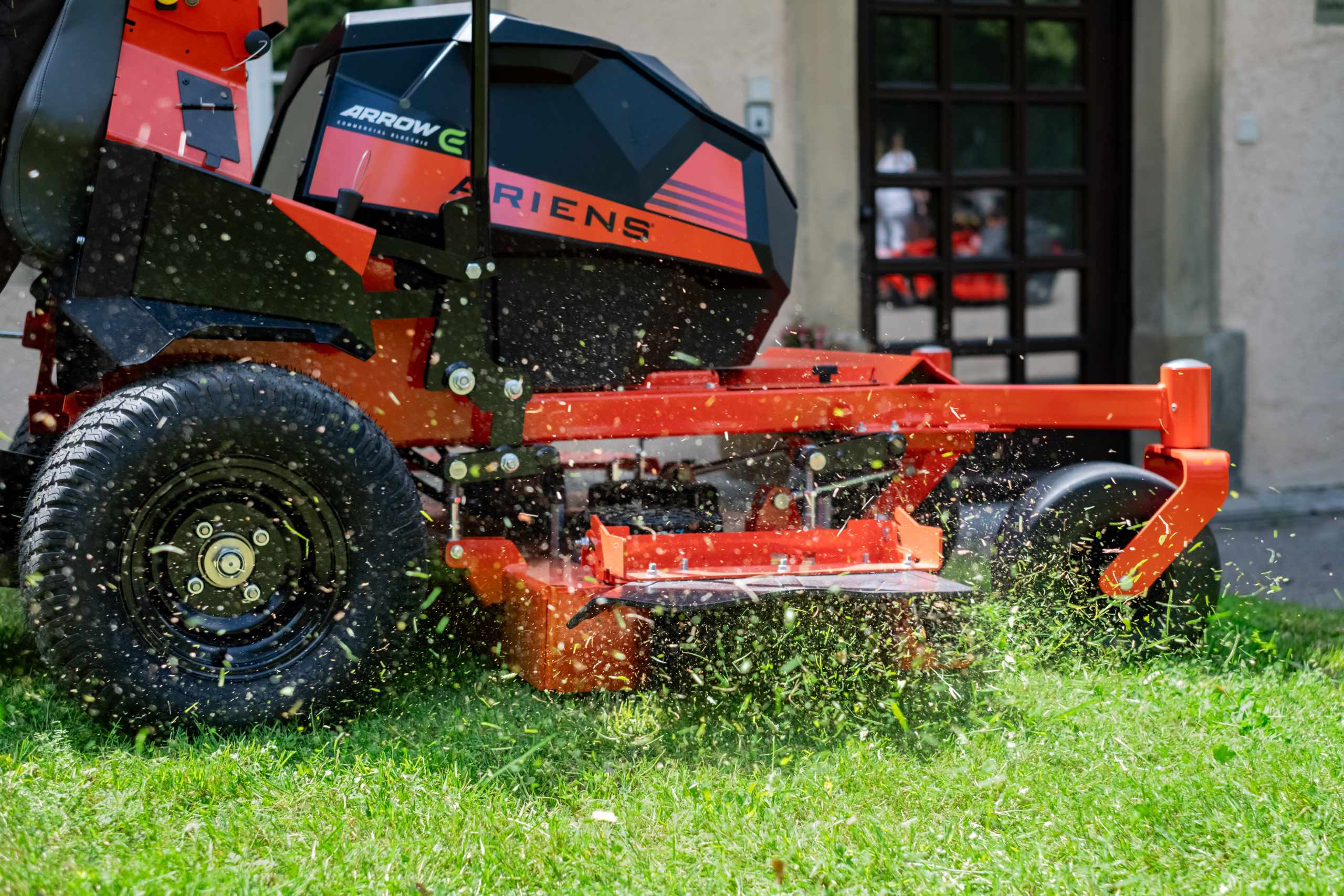

Quality has its weight. The solid mowing deck of the ARROW E is welded from 4.5 mm thick sheet steel. The deck height is adjusted smoothly using a combined system of foot pedal and manual lift.
The color LED display keeps you constantly up to date.
• Charge status of all batteries
• Operating modes.
• Operating hours counter
• System diagnostics
• Fault messages
No external device is required for diagnostics.
The ARROW E has an ECO mode switch. The highest blade speed is not required when the amount of clippings is low or the driving speed is slow. In this case, use the ECO mode to reduce the blade speed.

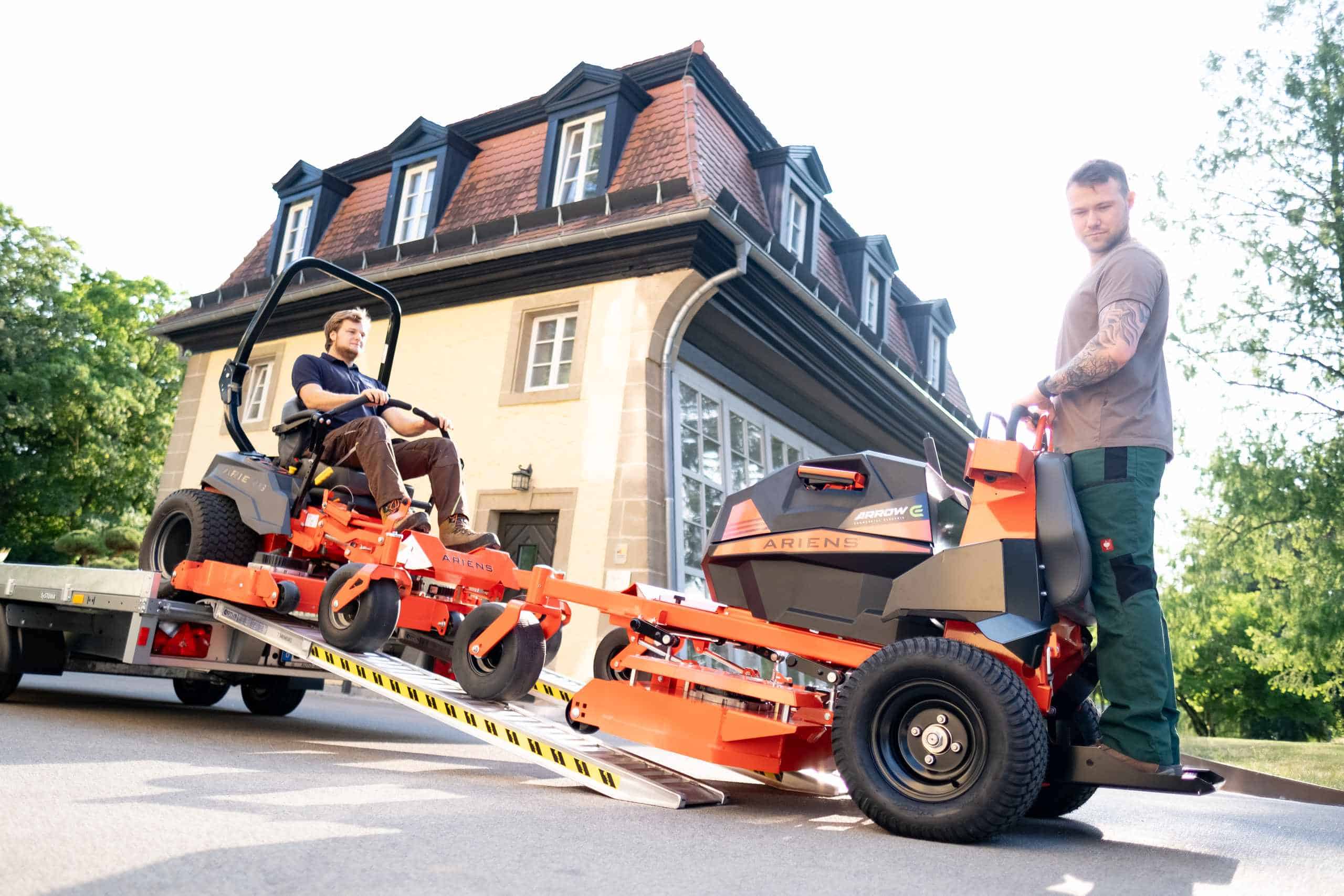

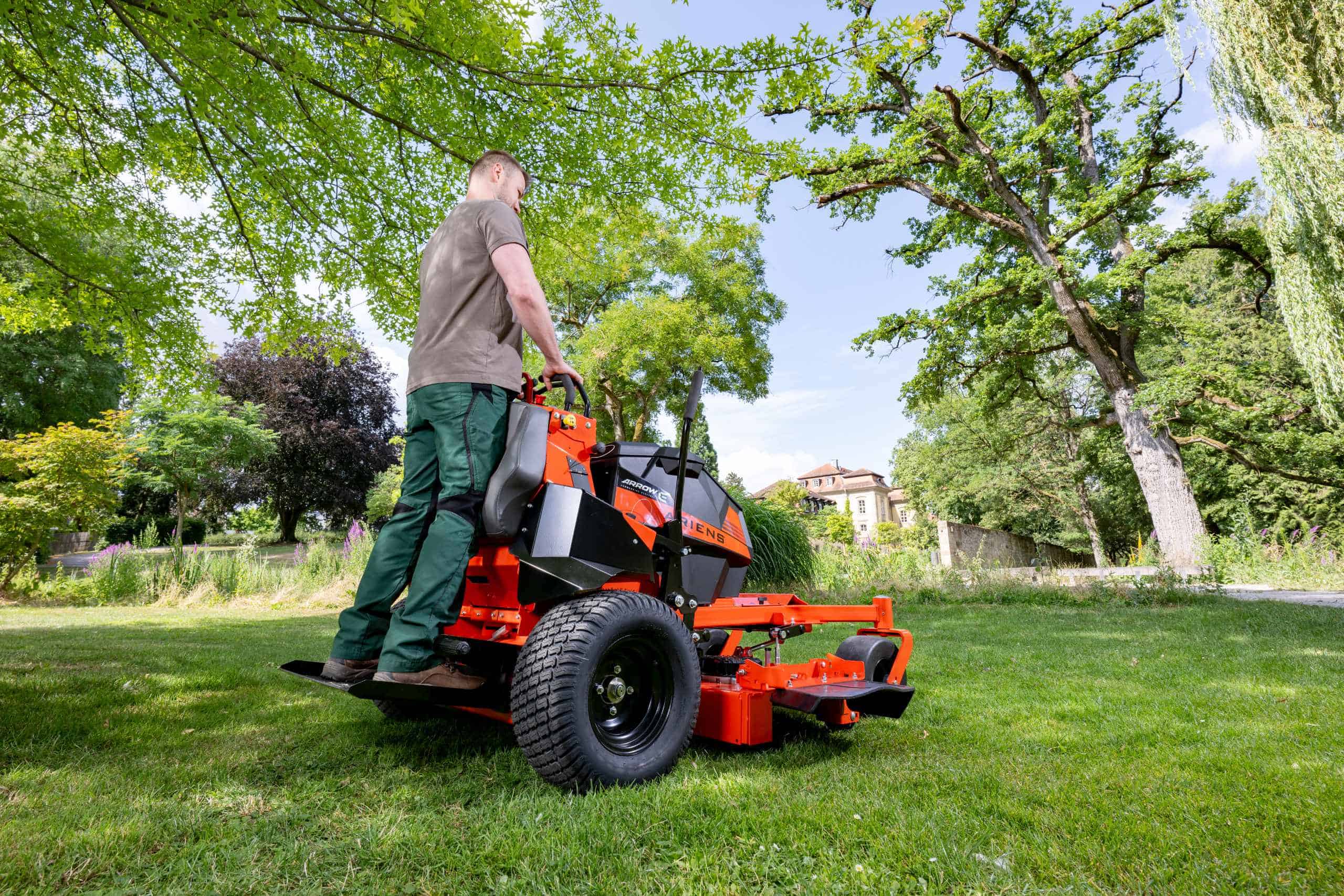

The spring-mounted driver's platform can be folded upwards for transportation. It can also be used when working under low-hanging branches or when driving on slopes of up to 20°. This turns the ARROW E into a walk-behind mower in no time. By the way: No suspension system in the world is as good as human legs. This is a major advantage of stand-on mowers for the health of the driver.

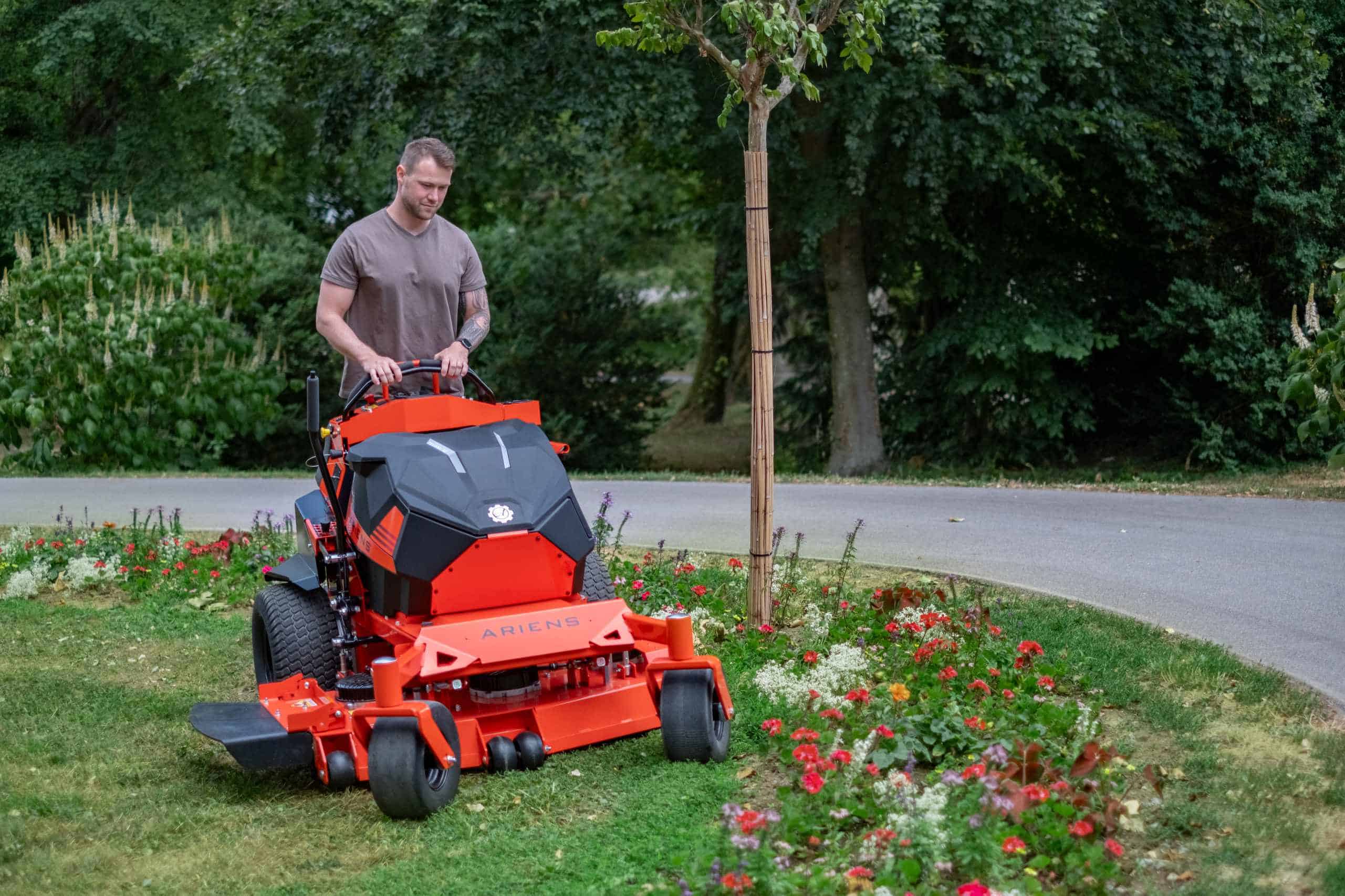

Control the two independently operating wheel drives with just two driving levers. You will be amazed at the precision and ease of this steering system. Every user will become a real zero-turn pro in no time at all. Try it out for yourself.
Datos técnicos
Accesorios
56V battery kit (single battery)
Extend your cutting time capability with an additional Lithium-Ion QuickSwap 4 kWh battery.
Off board charger kit
Charge up to four additional batteries outside of the machine. Charging time 4 batteries 0-100%: 12 hours. Option to upgrade to Fast Charger.
Fast charger w/y harness kit
Additional charger. Charges the four batteries in the machine in just 5.3 hours.
Mulch kit
For installation in side discharge cutter decks. Ensures a clean mulching result. Closes the side discharge. Side deflector can then be removed.
Aplicaciones
Service providers
Time is money for a service provider. Modern zero-turn mowers are therefore particularly popular with them. Time savings of up to 40 % come into their own here. Daily changing job sites and high annual operating times place demands on the material. The Ariens APEX and ARROW zero-turn models bring momentum and speed to the daily work of lawn care service providers.
Municipalities & building yards
User comfort for long mowing jobs in public spaces. Efficient work that is fun and enjoyable. The Ariens models ZENITH, ZENITH E, ARROW and ARROW E zero-turn mowers are made for long and frequent mowing intervals on large areas. Perfect cut and durability come as standard. Suspended wheel forks, optimum seating comfort or ergonomic, upright driving position on the ARROW models protect the user and increase their well-being.
Janitorial services
The constantly changing activities of a janitor service are part of daily routine. Regular lawn mowing is often perceived as a chore and is particularly time-consuming. With a zero-turn mower, you'll be done faster. You can save up to 40% time compared to a conventional lawn tractor. The Ariens IKON is made for private gardens of any size or even semi-professional applications. For smaller janitor services, it is the ideal machine for mowing green spaces quickly and maneuverably.
Leisure Facilities

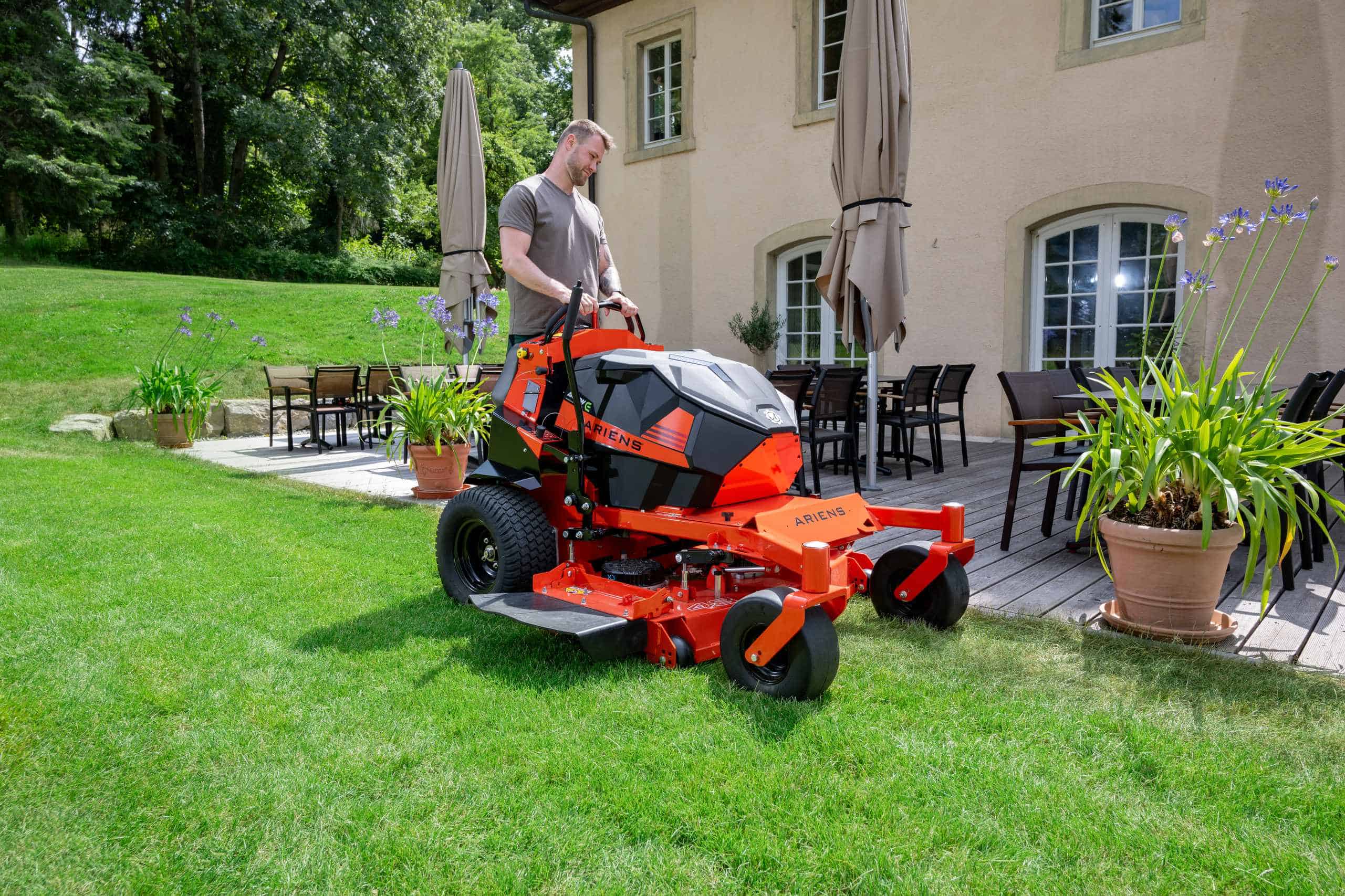

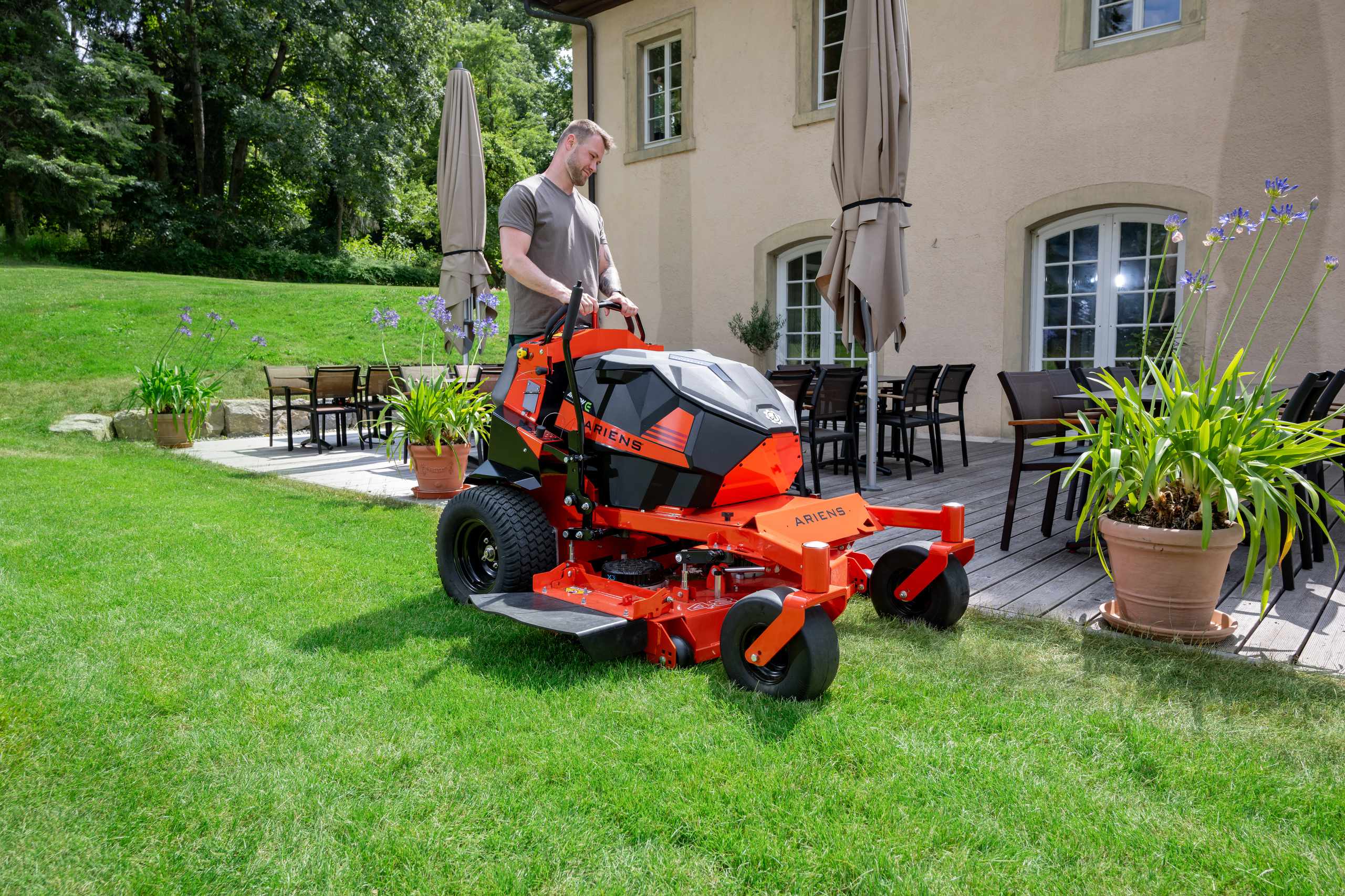

Camping sites and playgrounds are usually very winding. A zero-turn mower is ideal here and fully in its element. You can steer around obstacles with absolute maneuverability and precision. You can drive around a tree in one go. A zero-turn mower makes your work much easier.
