Cutting Width: 132 cm (52")
Deck Type: Side Discharge

Made for regular mowing and service providers

Made for service providers who mow frequently. Top components in the engine, drive and cutter deck combined with an excellent price-performance ratio.

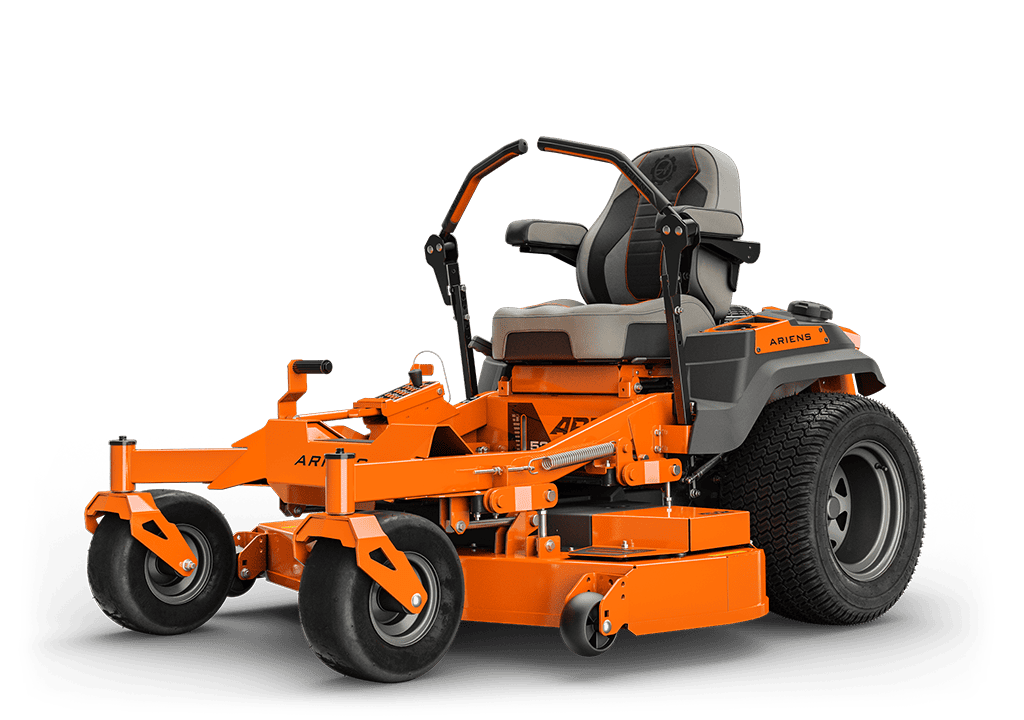

The ‘R’ on the APEX 52 R stands for ‘rear-discharge’. The mown grass is discharged to the rear, between the wheels. Advantage: Cuttings are not thrown onto paths or into flower beds. With its first-class Kawasaki FR691 V-Twin engine, its highly stable frame and its professional cutting deck with a cutting width of 132 cm, it is ideal for commercial use.

  • The APEX 52R features a 132cm (52″) fabricated rear discharge deck that’s 14cm (5½”) deep and made of 10-gauge steel
  • Powerful Kawasaki®​ FR691 V-Twin 726cc engine
  • Industry-leading, fully welded tubular steel frame
  • Self-adjusting belt technology
  • High-back plush seat with padded arm rests
  • Foot-operated, spring assisted deck lift with 15 cutting positions
  • ROPS capable design
  • Range of optional accessories is available
  • 4-year or 500 hours warranty

Use Cases

Semi-Pro Petrol Ride-On (sitting) Rear discharge Flat terrain Undulating terrain Hilly terrain Large areas

Features & Benefits

Curved tubular steel frame

The frame, made entirely of tubular steel, forms the skeleton of the mower. It bears the entire load of the machine for many years and must be able to cope with shocks and vibrations over the long term. State-of-the-art bending technology avoids weak points due to welded joints.

Professional mowing deck

The mowing deck is the most heavily loaded component of a mower. Stability is particularly important here. The APEX has a 14 cm deep, fully welded mower deck made of 3.2 mm thick sheet steel with double spindle supports, 12.7 mm steel edge, enclosed anti-scalp wheels, all-steel pulleys, welded 4-point suspension and high-quality blade spindles made of forged aluminium. Everything about it is designed for a long service life.

Automatic belt tensioner system

The automatic CBT (Constant Belt Tension) technology keeps the belt tension of the mower deck constant at all times. This increases the service life of the belt, compensates for wear and prevents belt slippage for a consistently high-quality cutting pattern.

Mower deck lifting by foot pedal

The solid cutting deck is raised conveniently and effortlessly using a foot pedal. To select one of the 15 cutting heights from 3.8 - 12.7 cm, a metal plug is inserted into the respective recess in the display.

Easy access to the mowing deck

The mowing deck is easy to access from above for cleaning and maintenance. Thanks to CBT technology, changing the belt takes just a few minutes. Simply slacken the tensioning pulleys, thread in the belt, tension the tensioning pulleys again - done.

Padded seat and armrests

The soft, adjustable seat with high backrest is equipped with padded armrests for greater comfort even during long periods of mowing. Coil spring damping absorbs shocks on uneven surfaces.

Technical Data

Model Number 991327
Engine Kawasaki® FR691 V-Twin OHV
Engine Displacement 726 cm³
Drive System Hydro-Gear® ZT-3100 Transaxles
Maximum engine Power 15.5 kW / 20.8 hp at 3,600 rpm.
Fuel Capacity 19.3 l
Max. Speed Forward / Backward 12.9 km/h / 6.4 km/h (8 mph / 4 mph)
Deck Type, Rear discharge / Side discharge /
Deck Material 3.6 mm sheet steel with double thickness around the blade support
Deck Construction welded
Deck Lift System foot operated
Number of blades 3
Spindle Material Forged Aluminium
Spindle Shaft Steel, StressProof®
Spindles drive V-belt
Spindle Clutch Electric Ogura®
Cutting Width 132 cm (52")
Cutting Hights 3.8 cm - 12.7 cm (1.5" - 5.0")
Cutting Positions 15
Wheels Front Axle optional
Front Wheels 13 x 6.5-6
Rear Wheels (inch) 22 x 10.5-12
Seat High back premium w/ padded armrests, adjustable
ROPS Rollover Protection optional
Hour Meter
Weight 389 kg
Length 201 cm
Width 137 cm
Height 120 cm
Limited Warranty Machine 4 years / 500 hrs.
Changes in technology, equipment and price are reserved. Of information or illustrations no claims can be derived.


Trailer hitch kit

Transform your Ariens zero-turn into a versatile machine simply by adding the hitch. The kit's robust design allows you to tow a range of accessories.

ROPS - Rollover protection structure

Increases security for the operator. Ergonomic shape protects the driver's elbows from impact. Foldable for driving under trees. With mandatory seatbelt. Can be retrofitted to all APEX models.

Full suspension seat kit

For all APEX models. Replaces standard seat. Suspension hardness adjustable. Without seatbelt.

Suspension forks kit

Reduces vibrations and shocks for increased driving comfort. For all APEX models. Standard on all ZENITH models.

Operator controlled chute baffle

For all side discharge cutter decks. Controls the ejection distance of the clippings with a hand lever.

LED headlight kits

Mow longer, later, and safer with a headlight kit from Ariens. For mounting on the side frame. For ZENITH, APEX and IKON XD.

Zero-turn cover

Protect your investment and extend the life of your equipment with an Ariens zero-turn cover. Fits EDGE, IKON XD and APEX models.

"TWEELS" kit

Lasts as long as 2-3 conventional sets of pneumatic tyres. Excellent suspension comfort. 100% puncture proof. For APEX und ZENITH models.

Aggressive tread pattern rear tyre kit

Tackle slopes with confidence and reduce turf scuffing with an upgraded tread pattern. Fits APEX and ZENITH models.

13" semi-pneumatic front tyre kit

Puncture proof.
