Cutting Width: 107 cm (42")
Deck Type: Rear Discharge

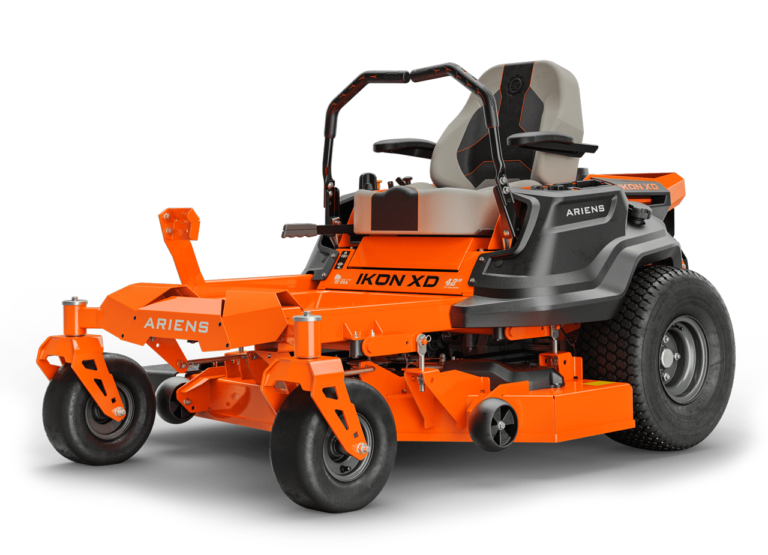

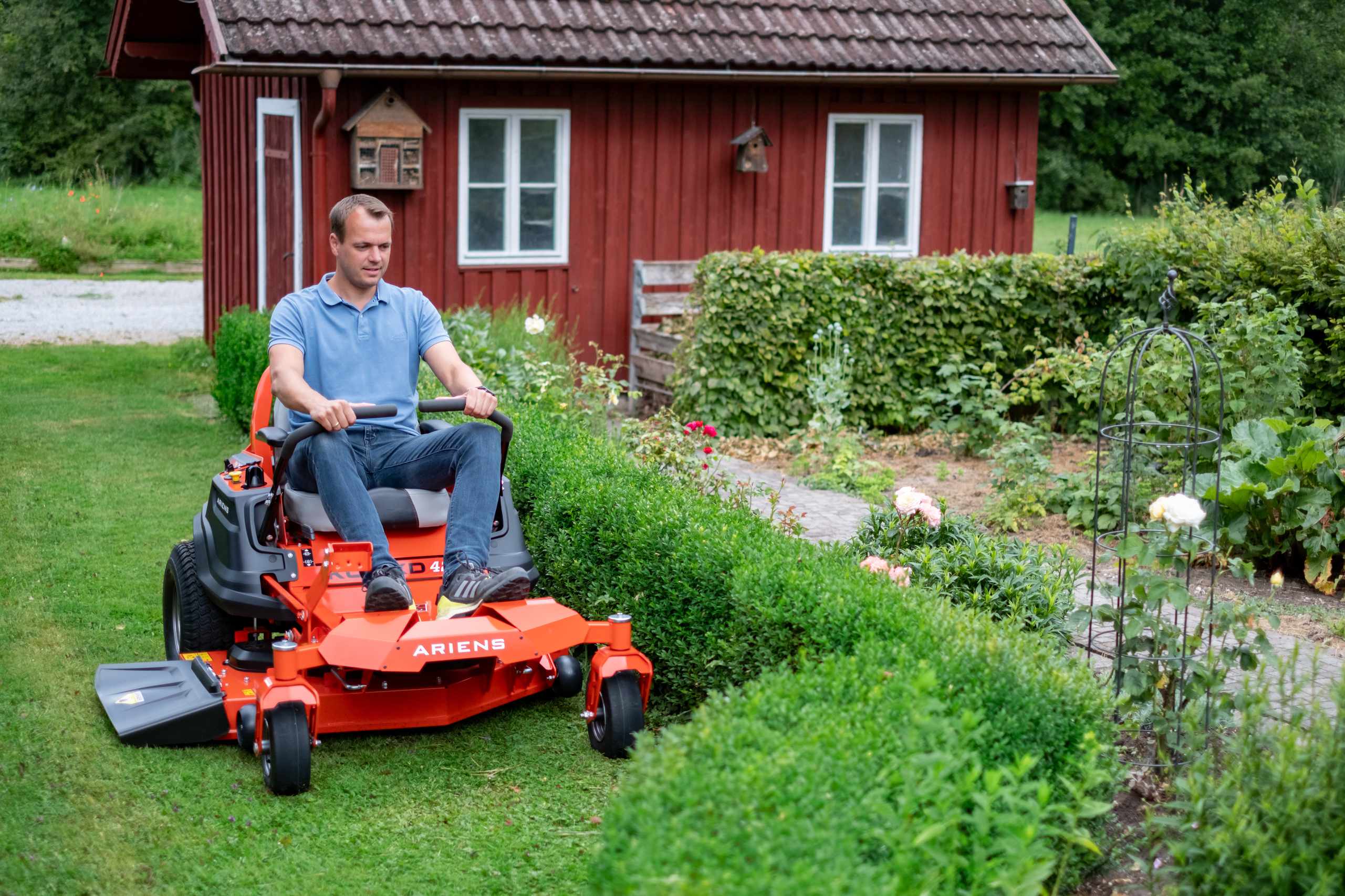

Comfort and performance for large gardens

Made for gardens of all sizes. Packed with the features found on its larger siblings. Treat yourself to its increased comfort and performance. With a premium Kawasaki engine, a cutting width of 107 cm, its tubular steel frame and plenty of comfort, the IKON XD 42 is the ideal mower for medium-sized lawns and gardens. For years to come.

  • The IKON XD 42 features a 107cm (42″) fabricated deck constructed from 11-gauge steel
  • Powered by a Kawasaki® FR651 ​726cc engine
  • Dial-operated cutting height adjustment with 13 cutting positions
  • Tubular steel frame
  • Plush high-back seat with arm rests and padded control arms
  • Range of optional accessories is available
  • 3-year or 300 hour warranty


Semi-Pro Private Petrol Optional mulching kit Ride-On (sitting) Side discharge Flat terrain Undulating terrain Hilly terrain Small areas Medium-sized areas

Merkmale & Vorteile

Commercial-style deck

10.2 cm deep, made of 2.9 mm thick sheet steel with reinforced edge and 4-point suspension. Powerful air flow and extra large ejection for a clean cut. Anti-scalp rollers prevent contact with the ground.

Comfort seat

The comfortable, adjustable seat with high backrest makes longer mowing intervals less tiring.

Large tyres

The large-diameter tyres with a wide footprint offer excellent traction and a smooth and comfortable ride.

Integrated hydrostatic wheel motors

The continuously variable, hydrostatic drive (combination of oil pump, oil motor and mechanical gearbox in one housing) delivers an enormous torque of 291 Nm and ensures smooth driving and the most precise reactions. It is also maintenance-free.

Rotary selector switch for cutting height adjustment

Ergonomic quick selector switch for the 13 cutting heights - from 3.8 cm to 11.4 cm. Convenient lifting of the cutting deck using the foot pedal.

Premium engines

The name Kawasaki stands for absolute reliability, high performance and durability when it comes to engines. 726 cm³ OHV 4-stroke engine. Max. 15.4 kW (20.6 hp)/3,600 rpm.

Datos técnicos

Model Number 915340
Engine Kawasaki® FR651 V-Twin OHV
Engine Displacement 726 cm³
Drive System Hydro-Gear® EZT® 2200 Transaxles
Maximum engine Power 14.5 kW / 19.4 hp at 3,600 rpm.
Fuel Capacity 10.5 l
Max. Speed Forward / Backward 11.3 km/h / 4.8 km/h (7 mph / 3 mph)
Deck Type, Rear discharge / Side discharge /
Mulching Kit optional
Deck Material 2.9 mm sheet steel with double thickness around blade support
Deck Construction welded
Deck Lift System foot operated
Number of blades 3
Spindle Material Steel
Spindle Shaft Steel
Spindles drive V-belt
Spindle Clutch Electric Warner®
Cutting Width 107 cm (42")
Cutting Hights 3.8 cm - 11.4 cm (1.5" - 4.5")
Cutting Positions 13
Wheels Front Axle optional
Front Wheels 11 x 4-5
Rear Wheels (inch) 22 x 8-8
Seat High back padded seat w/ armrests
Hour Meter
Weight 270 kg
Length 197 cm
Width 138 cm w/ chute; 112 cm w/ mulch kit
Height 102 cm
Limited Warranty Machine 3 years / 300 hrs.
Se reservan el derecho de los cambios mostrados de las descripciones y tecnología, equipamientos y precios. De la información o las ilustraciones no se puede derivar ninguna reclamación.

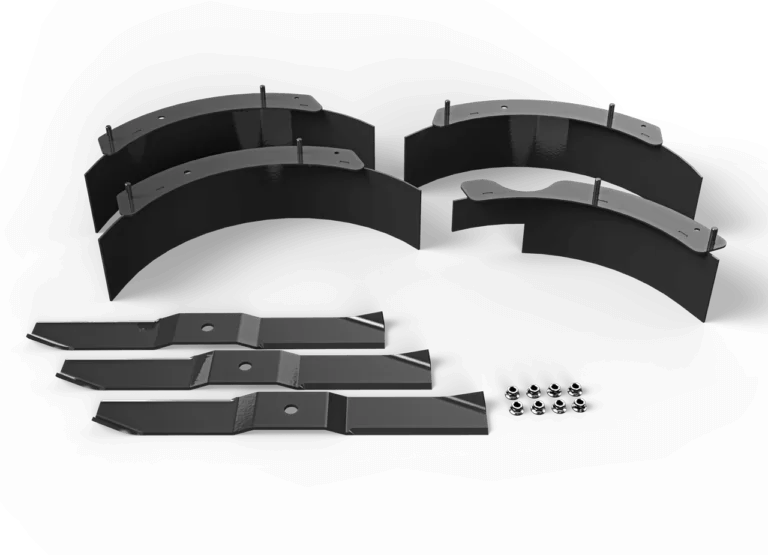

Mulch kits

For installation in side discharge cutter decks. With every rotation of the blade, the mower sucks up grass in the closed cutting chamber, where the clippings are cut several times before they fall finely chopped onto the lawn.

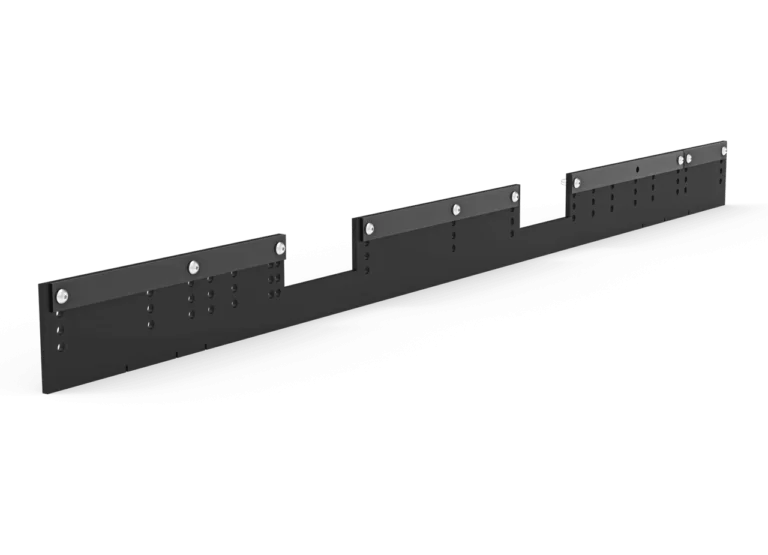

Striping kit

There is nothing more pristine in the spring and summer than a newly mown lawn with stripes. Add that finishing touch with a striping kit that easily mounts to ZENITH, APEX and IKON XD side discharge models.

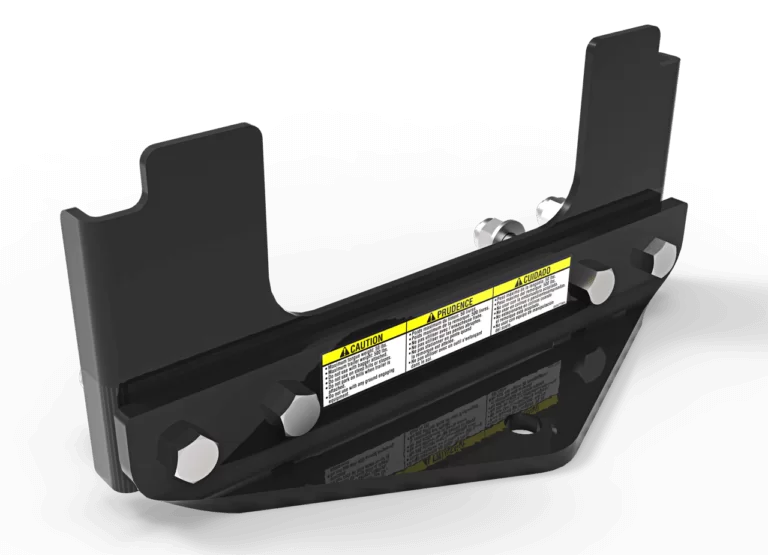

Trailer hitch kit

Transform your Ariens zero-turn into a versatile machine simply by adding the hitch. The kit's robust design allows you to tow a range of accessories.

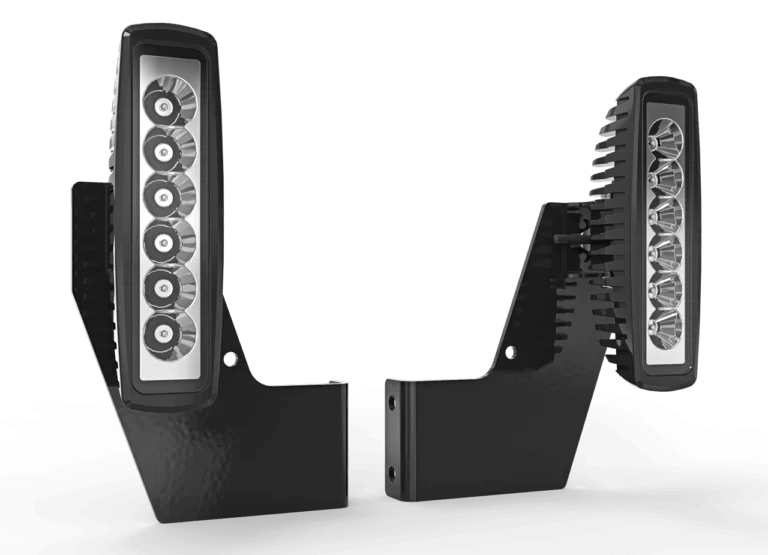

LED headlight kits

Mow longer, later, and safer with a headlight kit from Ariens. For mounting on the side frame. For ZENITH, APEX and IKON XD.

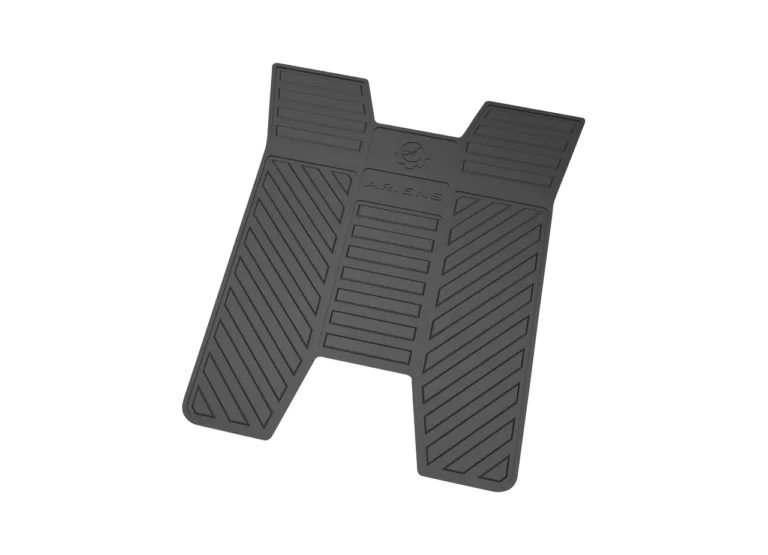

Floor mat (IKON XD)

For the IKON XD. Increases driving comfort. The mat absorbs vibrations on the feet and prevents feet from slipping while driving and when dismounting. 100% weatherproof rubber. Easy to remove for cleaning.

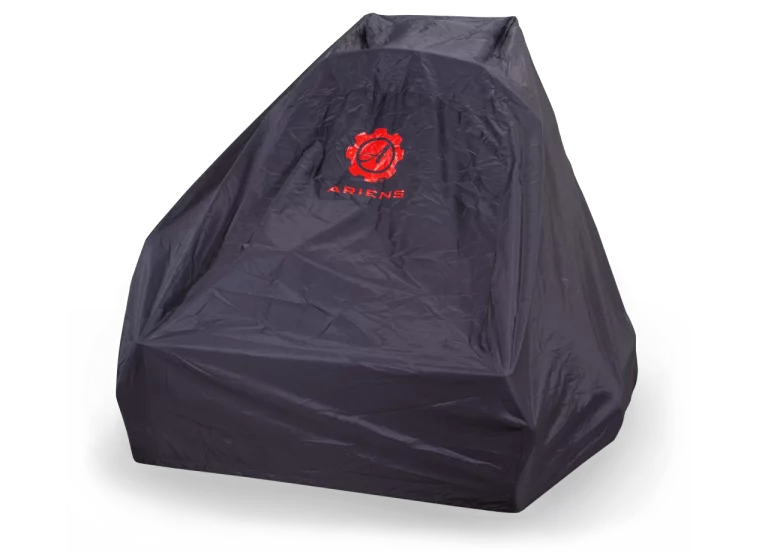

Zero-turn cover

Protect your investment and extend the life of your equipment with an Ariens zero-turn cover. Fits EDGE, IKON XD and APEX models.

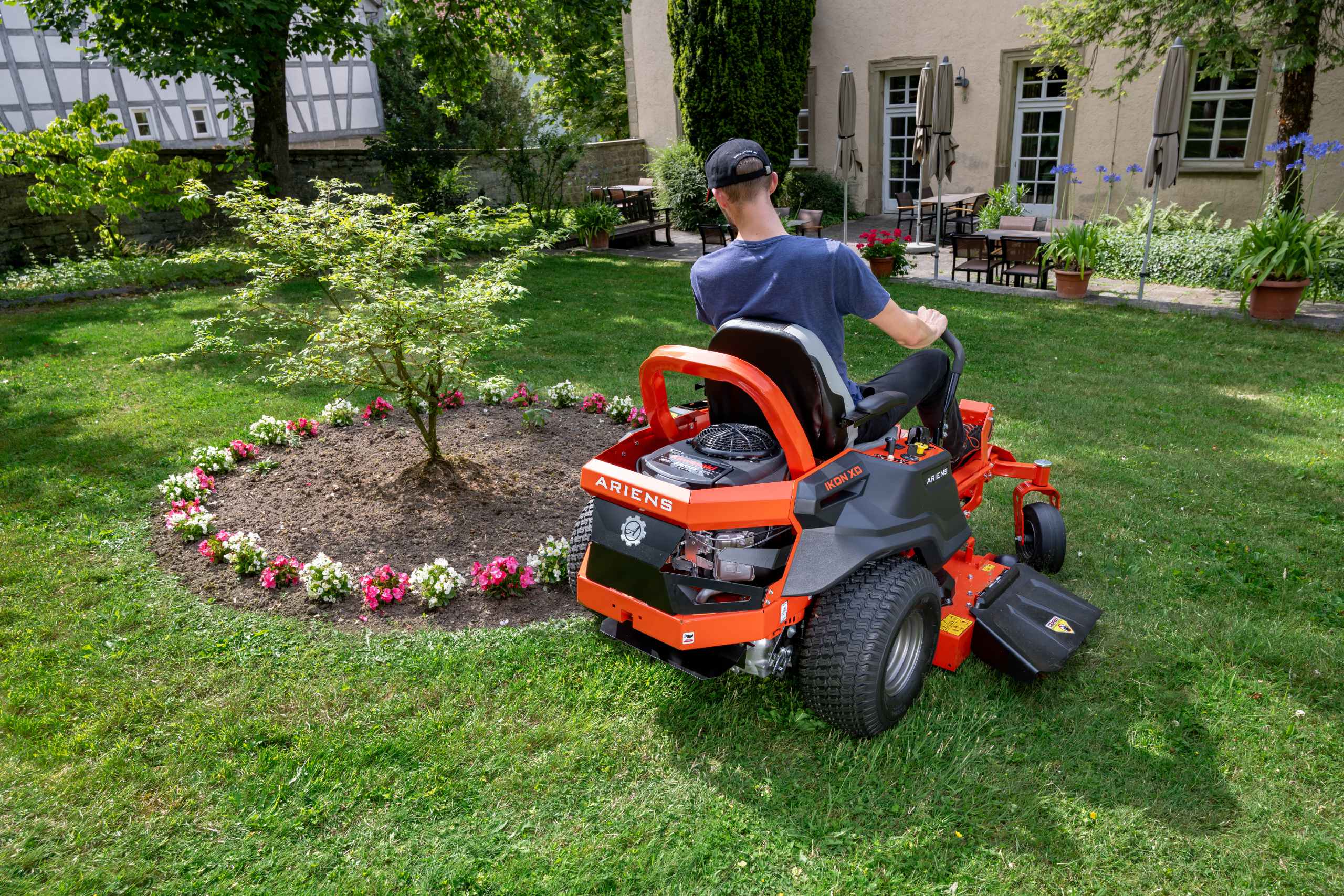

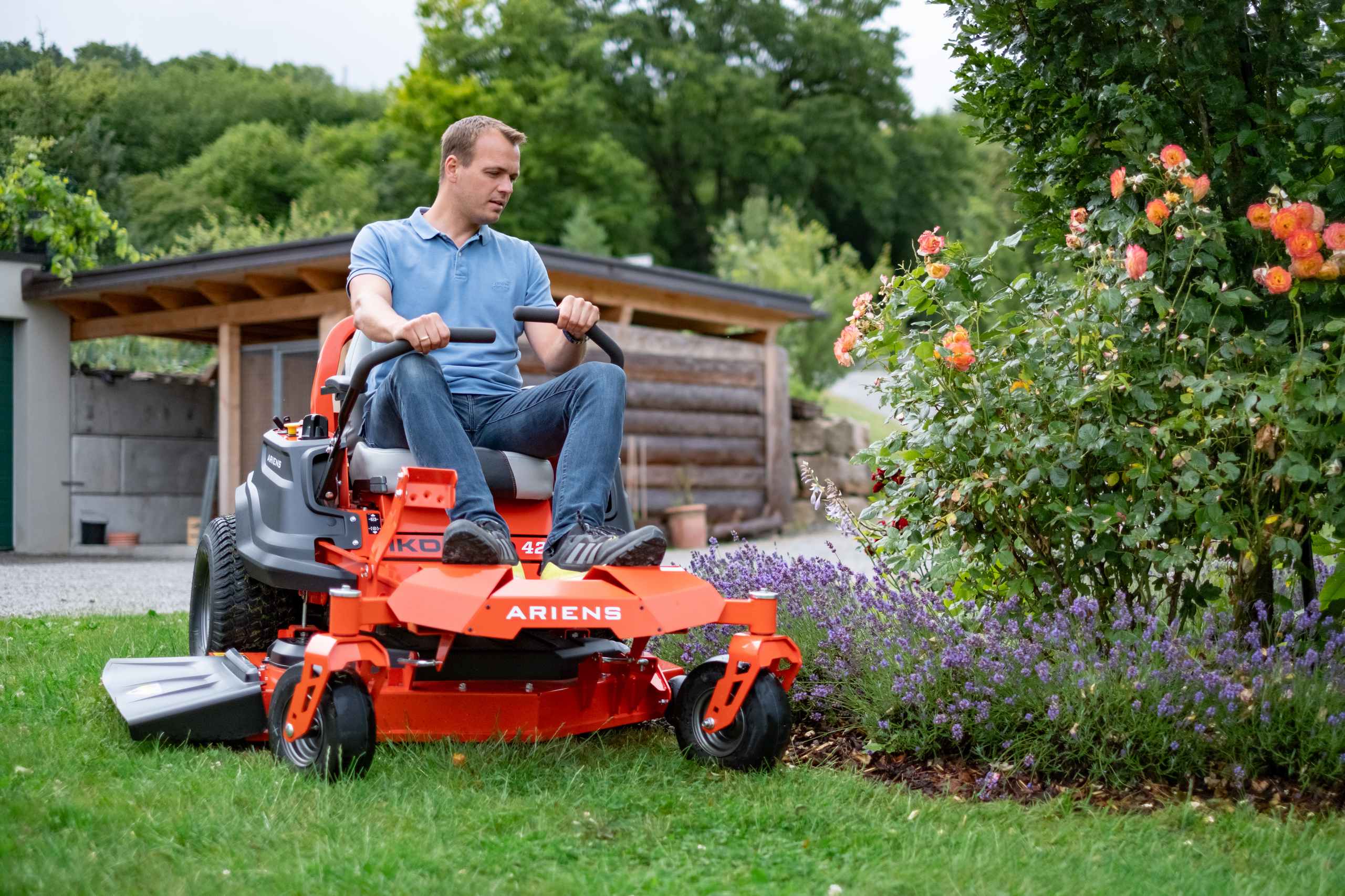

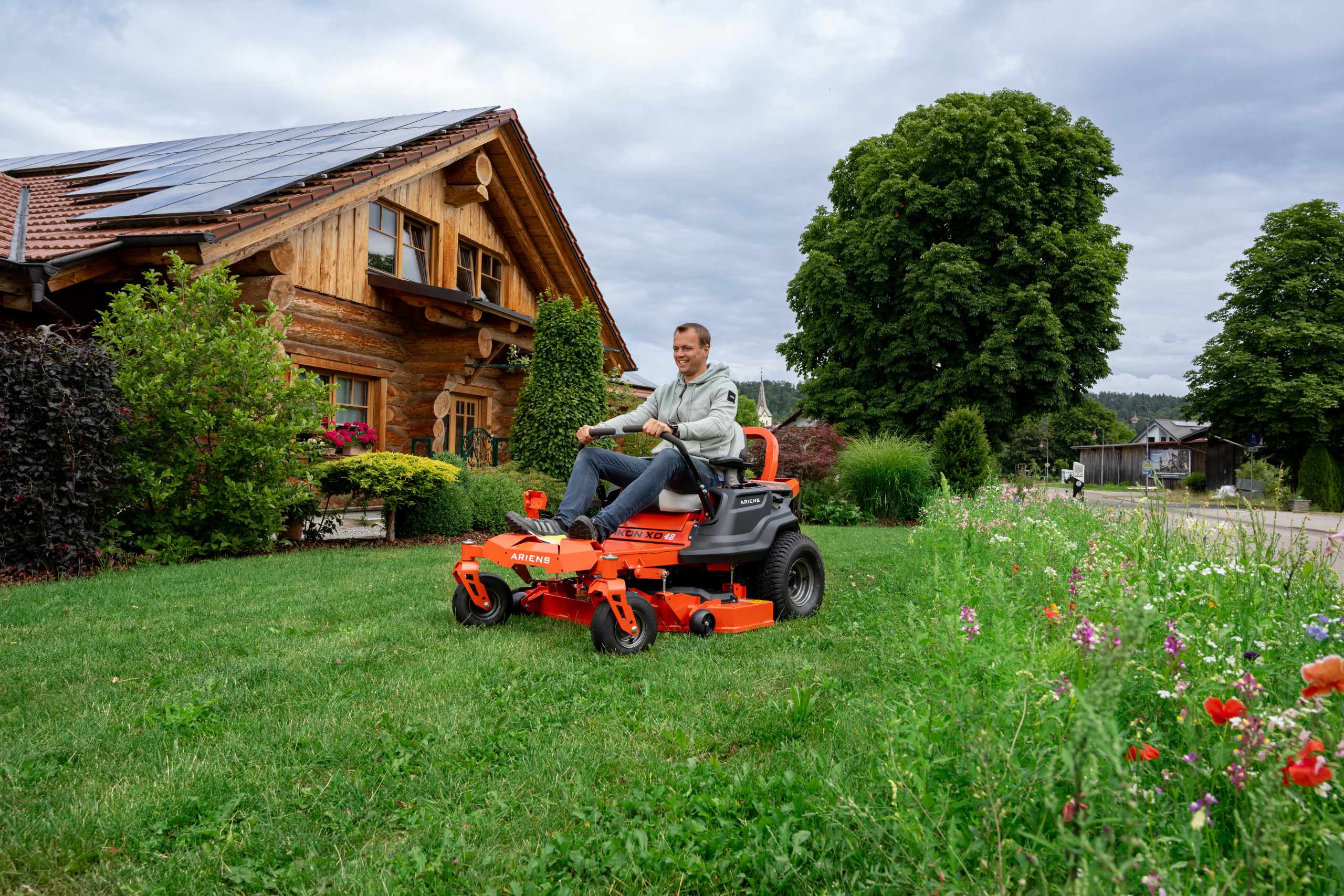

Private gardens

Ariens zero-turn mowers are not only for professionals and service providers, but also for private users. Zero-turn mowers are available in different sizes and cutting widths for private lawns from 1,000 m². The compact Ariens EDGE and IKON models are made for winding gardens and narrow driveways. Saving time is also the main advantage here. Mowing fun comes as standard.

Janitorial services

The constantly changing activities of a janitor service are part of daily routine. Regular lawn mowing is often perceived as a chore and is particularly time-consuming. With a zero-turn mower, you'll be done faster. You can save up to 40% time compared to a conventional lawn tractor. The Ariens IKON is made for private gardens of any size or even semi-professional applications. For smaller janitor services, it is the ideal machine for mowing green spaces quickly and maneuverably.

Leisure Facilities

Camping sites and playgrounds are usually very winding. A zero-turn mower is ideal here and fully in its element. You can steer around obstacles with absolute maneuverability and precision. You can drive around a tree in one go. A zero-turn mower makes your work much easier.
