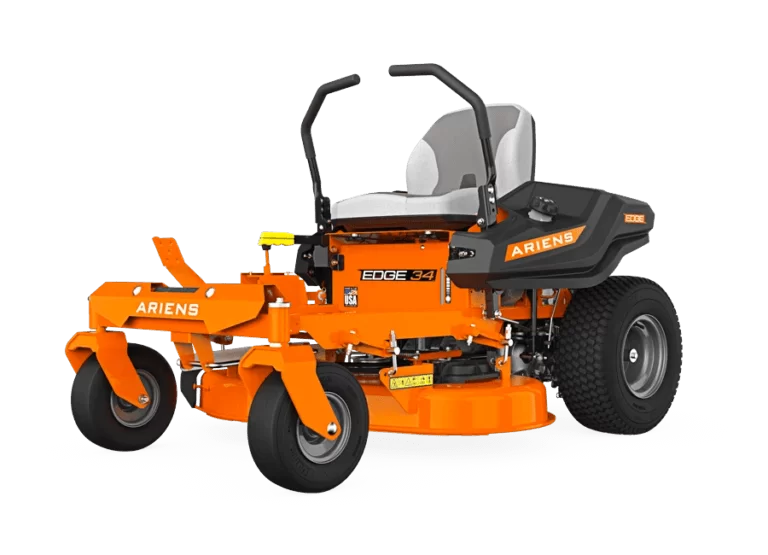

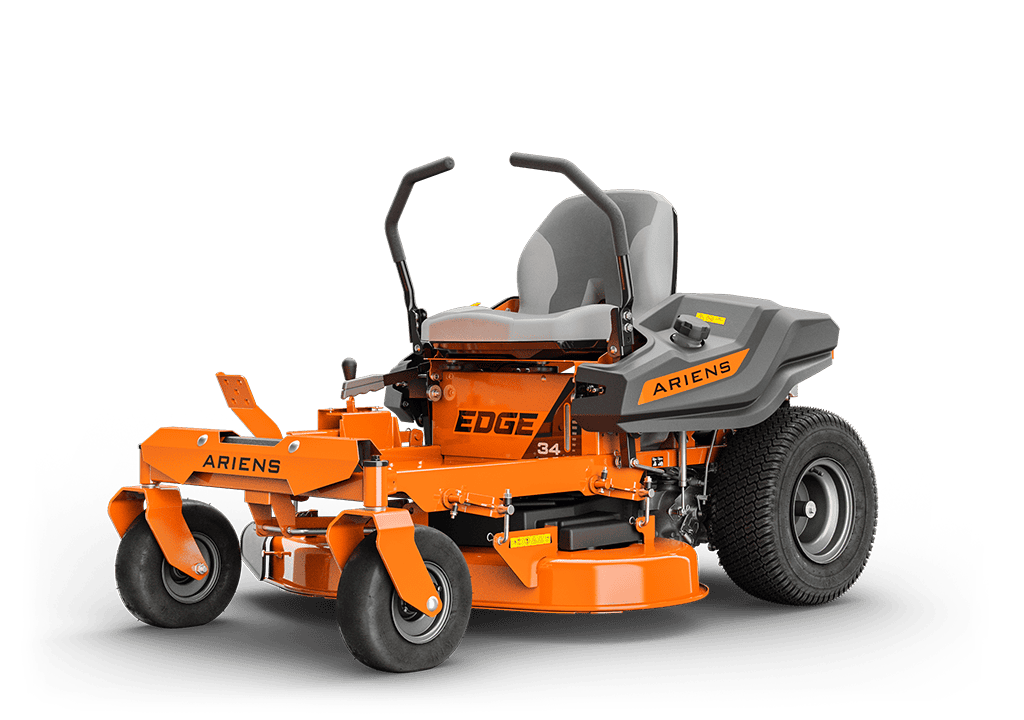

EDGE 34 - For medium sized lawns | Ariens zero-tur mower

Solicitar demostración Manual del operario Ficha técnica

Para ver este vídeo, acepte las cookies de medios externos

Cutting Width: 86 cm (34")

Deck Type: Side Discharge

Brings the speed and fun of mowing to your garden

Enjoy the benefits of a zero-turn mower in your garden. Mow with more manoeuvrability and comfort than a lawn tractor and have fun doing it. Made for small to medium gardens with narrow passages.

The EDGE 34 features an 86cm (34″) stamped deck constructed from 12 gauge steel
Powered by an Ariens 635cc twin cylinder engine
Foot-operated deck lift offers quick and easy cutting height adjustment
Four-point deck lift system offers unmatched stability and consistent cutting
High-back padded seat fitted as standard for operator comfort
A range of optional accessories is available
2-year or 150 hour warranty

Einsätze

Private Petrol Optional mulching kit Ride-On (sitting) Side discharge Flat terrain Undulating terrain Hilly terrain Small areas

Merkmale & Vorteile

Cutting deck

Choose between a super compact 86 cm (34″) stamped steel cutting deck or a 107 cm (42″) welded cutting deck.

Intuitive controls

Control the two independently operating wheel drives with just two driving levers. You will be amazed at the precision and ease of this steering system. Every user will become a real zero-turn pro in no time at all. Try it out for yourself.

Larger tyres

The large-diameter tires with a wide footprint offer greater traction and a smoother and more comfortable ride.

Comfort

The contoured seat of the EDGE has a large cut-out. This allows air to circulate, keeping your back dry and increase riding comfort in high outside temperatures.

Deck height lever

The cutting height can be adjusted in 7 stages from 3.8 cm to 11.4 cm using the easily accessible lever on the side of the seat. The cutting deck is raised conveniently using a foot pedal.

ARIENS engine

The EDGE is powered by the reliable Ariens 635 cm³ two-cylinder, Stage V, OHV engine.

Datos técnicos

Model Number 915338

Engine Ariens OHV Twin Cylinder

Engine Displacement 635 cm³

Drive System Hydro-Gear^{^®} EZT^{^®} Transaxles

Maximum engine Power 14.5 kW / 19.4 hp at 3,600 rpm.

Fuel Capacity 7.5 l

Max. Speed Forward / Backward 9.6 km/h / 4.8 km/h (6 mph / 3 mph)

Deck Type, Rear discharge / Side discharge /

Mulching Kit optional

Deck Material 2.4 mm sheet steel

Deck Construction Stamped

Deck Lift System foot operated

Number of blades 2

Spindle Material Steel

Spindles drive V-belt

Spindle Clutch Electric Warner^{^®}

Cutting Width 86 cm (34")

Cutting Hights 3.8 cm - 11.4 cm (1.5" - 4.5")

Cutting Positions 7

Front Wheels 11 x 4

Rear Wheels (inch) 18 x 6.50 - 8

Seat Padded seat w/ back cut-out

Hour Meter

Weight 203 kg

Length 173 cm

Width 114 cm w/ chute; 92 cm w/ mulch kit

Height 100 cm

Limited Warranty Machine 2 years / 150 hrs.

Se reservan el derecho de los cambios mostrados de las descripciones y tecnología, equipamientos y precios. De la información o las ilustraciones no se puede derivar ninguna reclamación.

Accesorios

FLEXTEND™ shoulder support system

Gives additional support to the shoulder area when mowing for extended periods. For EDGE models.

Zero-turn cover

Protect your investment and extend the life of your equipment with an Ariens zero-turn cover. Fits EDGE, IKON XD and APEX models.

Mulch kits

For installation in side discharge cutter decks. With every rotation of the blade, the mower sucks up grass in the closed cutting chamber, where the clippings are cut several times before they fall finely chopped onto the lawn.

Aplicaciones

Private gardens

Ariens zero-turn mowers are not only for professionals and service providers, but also for private users. Zero-turn mowers are available in different sizes and cutting widths for private lawns from 1,000 m². The compact Ariens EDGE and IKON models are made for winding gardens and narrow driveways. Saving time is also the main advantage here. Mowing fun comes as standard.

» sigue leyendo

Janitorial services

The constantly changing activities of a janitor service are part of daily routine. Regular lawn mowing is often perceived as a chore and is particularly time-consuming. With a zero-turn mower, you'll be done faster. You can save up to 40% time compared to a conventional lawn tractor. The Ariens IKON is made for private gardens of any size or even semi-professional applications. For smaller janitor services, it is the ideal machine for mowing green spaces quickly and maneuverably.

» sigue leyendo
