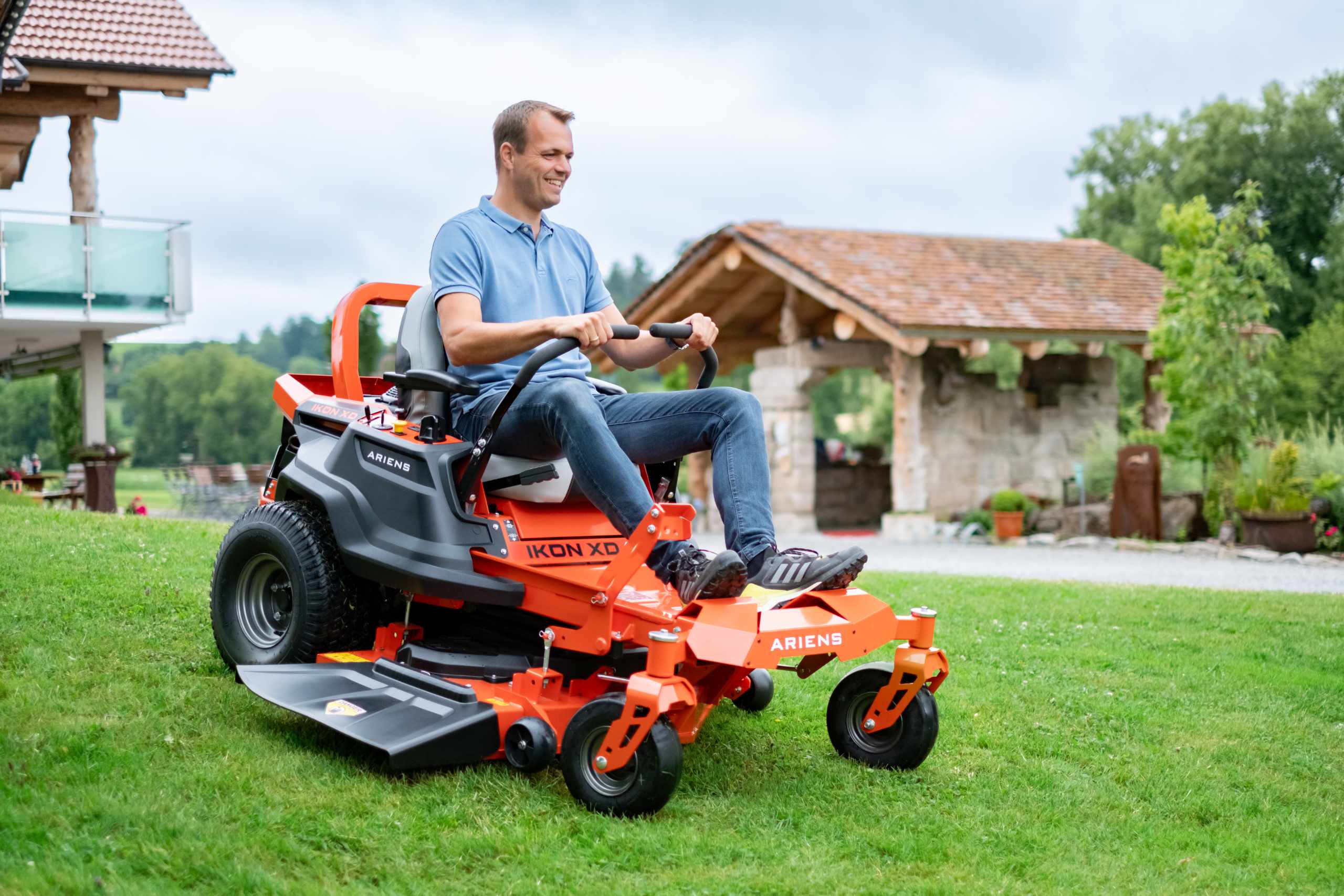

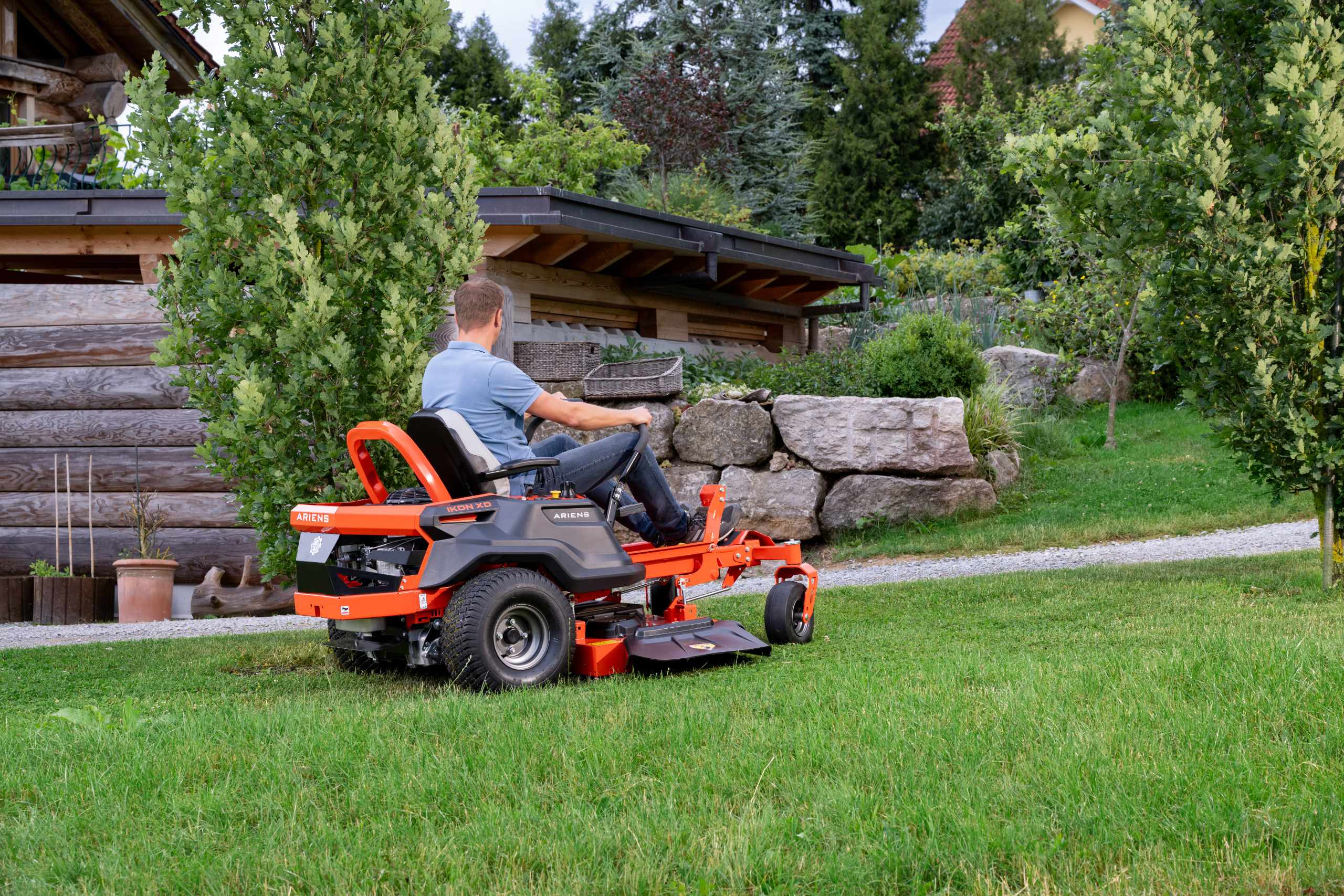

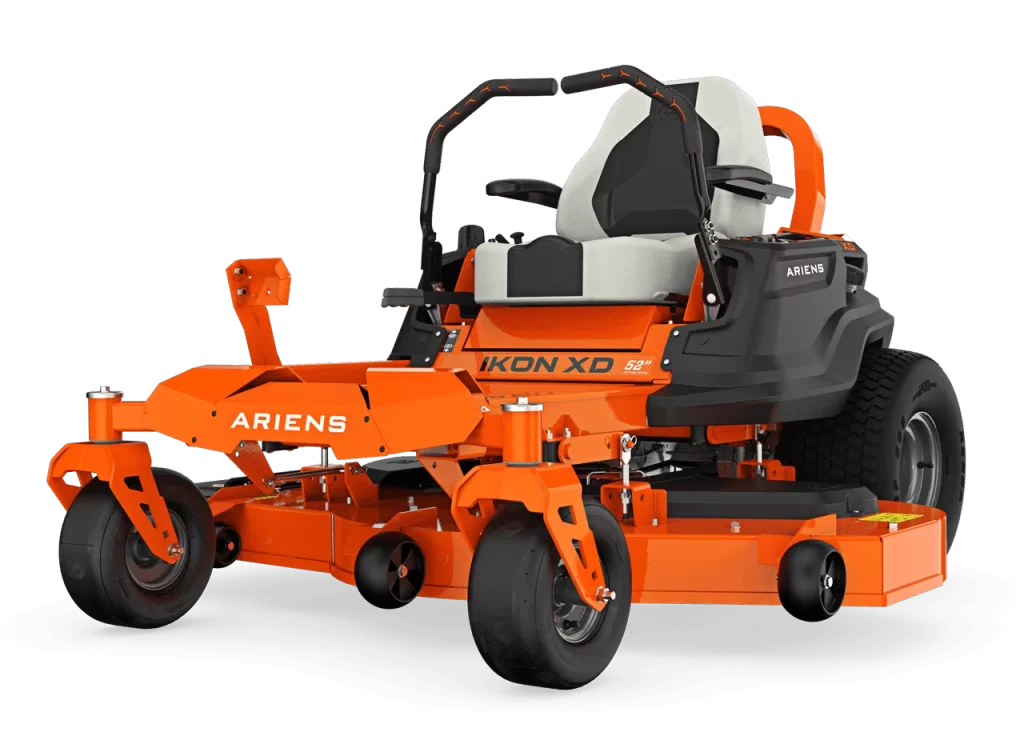

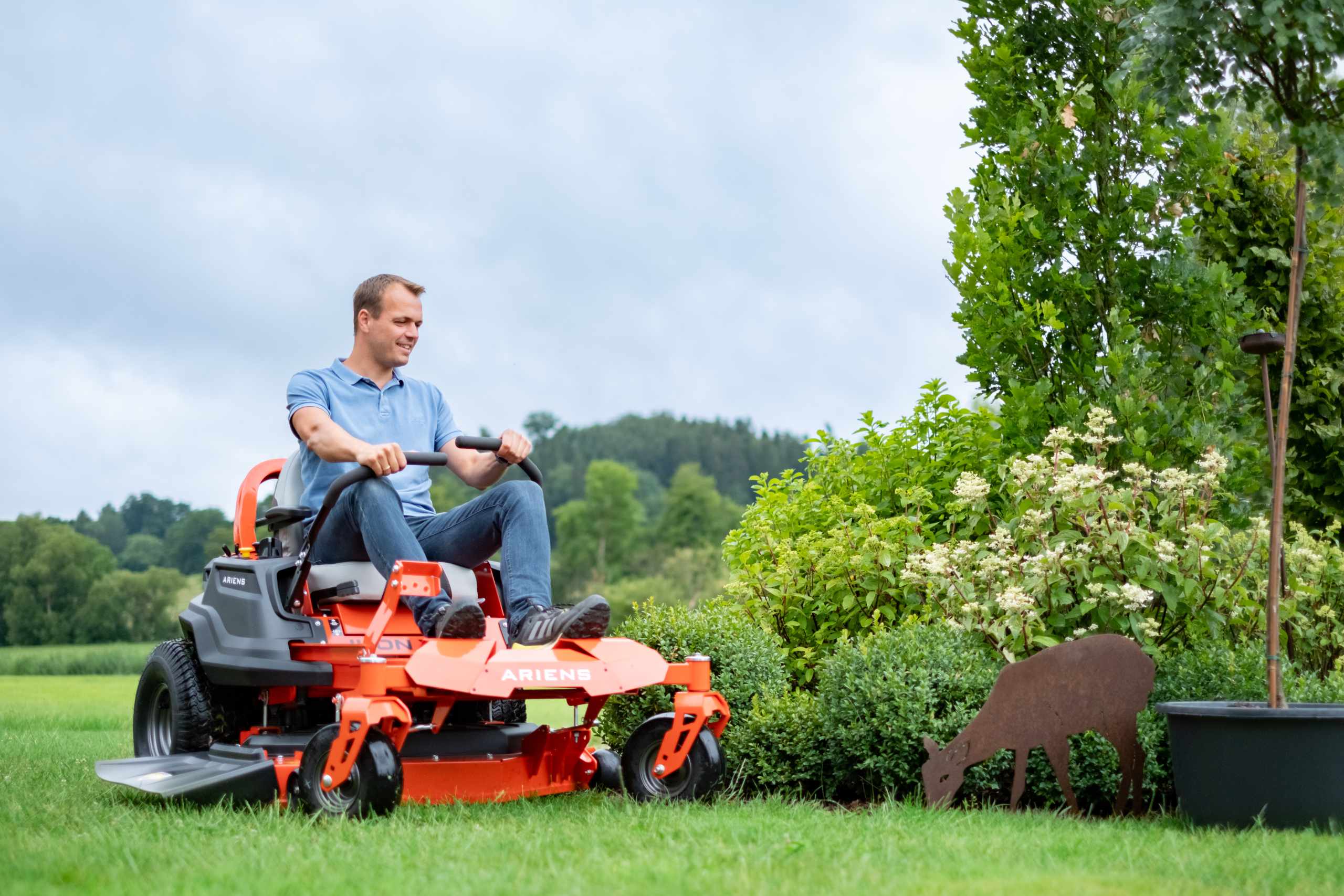

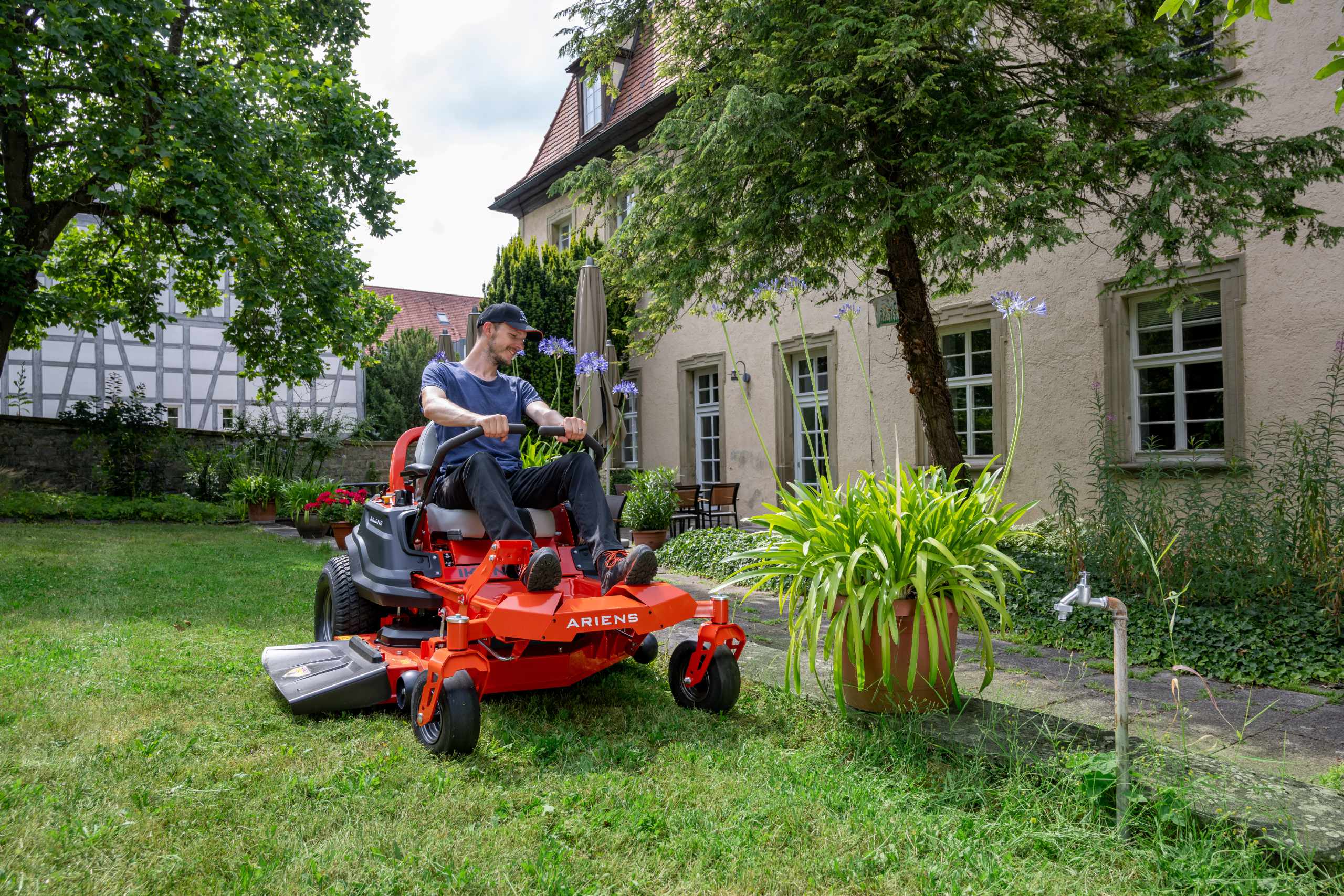

IKON XD 52

testing a deviceOperator's manualData sheet

Made for gardens of all size - Comfortable and robust

Made for gardens of all sizes. Packed with the features found on its larger siblings. Treat yourself to its increased comfort and performance.

With ist premium Kawasaki engine, a cutting width of 132 cm, a welded cutting deck and plenty of comfort, the IKON XD is the ideal mower for larger lawns.

  • The IKON XD 52 features a 132cm (52″) fabricated deck constructed from 11-gauge steel
  • Powered by a Kawasaki® FR691 ​726cc engine
  • Dial-operated cutting height adjustment with 13 cutting positions
  • Tubular steel frame
  • Plush high-back seat with arm rests and padded control arms
  • Range of optional accessories is available
  • 3-year or 300 hour warranty

Einsätze

Semi-Pro Private Petrol Optional mulching kit Ride-On (sitting) Side discharge Flat terrain Undulating terrain Hilly terrain Medium-sized areas Large areas

Features & Benefits

Large tyres

The large-diameter tyres with a wide footprint offer excellent traction and a smooth and comfortable ride.

Integrated hydrostatic wheel motors

The continuously variable, hydrostatic drive (combination of oil pump, oil motor and mechanical gearbox in one housing) delivers an enormous torque of 291 Nm and ensures smooth driving and the most precise reactions. It is also maintenance-free.

Rotary selector switch for cutting height adjustment

Ergonomic quick selector switch for the 13 cutting heights - from 3.8 cm to 11.4 cm. Convenient lifting of the cutting deck using the foot pedal.

Premium engines

The name Kawasaki stands for absolute reliability, high performance and durability when it comes to engines. 726 cm³ OHV 4-stroke engine. Max. 15.4 kW (20.6 hp)/3,600 rpm.

Technical Data

Model Number 915341
Engine Kawasaki® FR691 V-Twin OHV
Engine Displacement 726 cm³
Drive System Hydro-Gear® EZT® 2200 Transaxles
Maximum engine Power 15.5 kW / 20.8 hp at 3,600 rpm.
Fuel Capacity 10.5 l
Max. Speed Forward / Backward 11.3 km/h / 4.8 km/h (7 mph / 3 mph)
Deck Type, Rear discharge / Side discharge /
Mulching Kit optional
Deck Material 2.9 mm sheet steel with double thickness around blade support
Deck Construction welded
Deck Lift System foot operated
Number of blades 3
Spindle Material Steel
Spindle Shaft Steel
Spindles drive V-belt
Spindle Clutch Electric Warner®
Cutting Width 132 cm (52")
Cutting Hights 3.8 cm - 11.4 cm (1.5" - 4.5")
Cutting Positions 13
Front Wheels 11 x 4-5
Rear Wheels (inch) 22 x 10-8
Seat High back padded seat w/ armrests
Hour Meter
Weight 290 kg
Length 197 cm
Width 161 cm w/ chute; 135 cm w/ mulch kit
Height 102 cm
Limited Warranty Machine 3 years / 300 hrs.
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

Mulch kits

For installation in side discharge cutter decks. With every rotation of the blade, the mower sucks up grass in the closed cutting chamber, where the clippings are cut several times before they fall finely chopped onto the lawn.

Striping kit

There is nothing more pristine in the spring and summer than a newly mown lawn with stripes. Add that finishing touch with a striping kit that easily mounts to ZENITH, APEX and IKON XD side discharge models.

Trailer hitch kit

Transform your Ariens zero-turn into a versatile machine simply by adding the hitch. The kit's robust design allows you to tow a range of accessories.

LED dash headlight

Ariens OEM LED headlight replacement kit to be used on all Ariens snow-blowers model years 2011 and newer that have halogen light original.

Floor mat (IKON XD)

For the IKON XD. Increases driving comfort. The mat absorbs vibrations on the feet and prevents feet from slipping while driving and when dismounting. 100% weatherproof rubber. Easy to remove for cleaning.

Zero-turn cover

Protect your investment and extend the life of your equipment with an Ariens zero-turn cover. Fits EDGE, IKON XD and APEX models.
