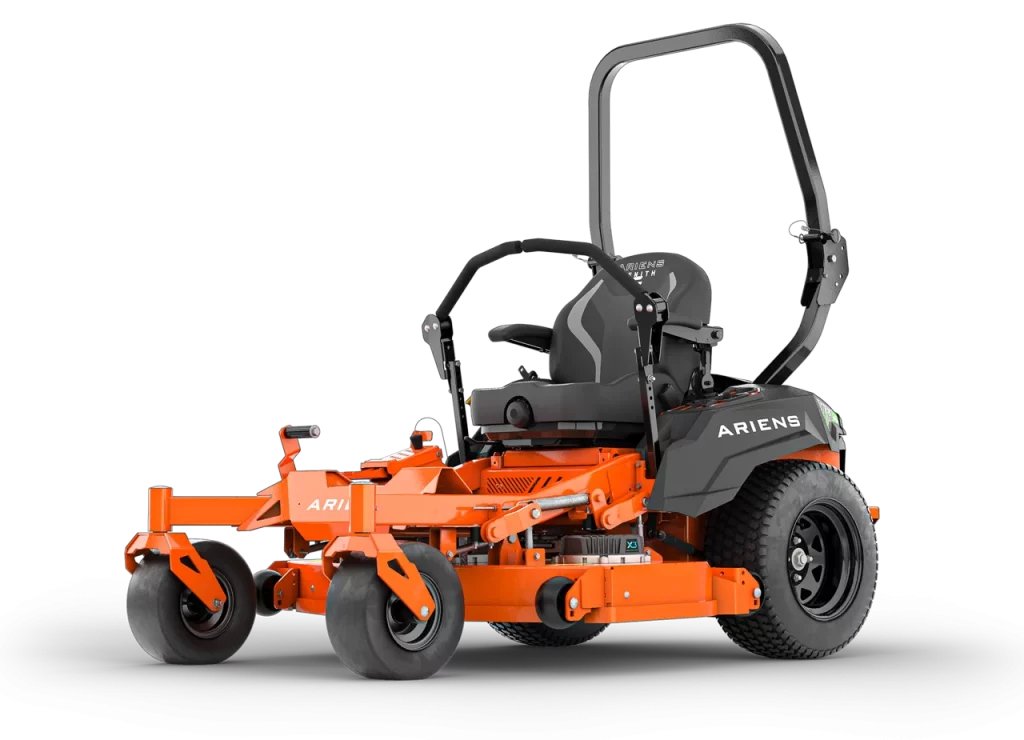

ZENITH E 48R

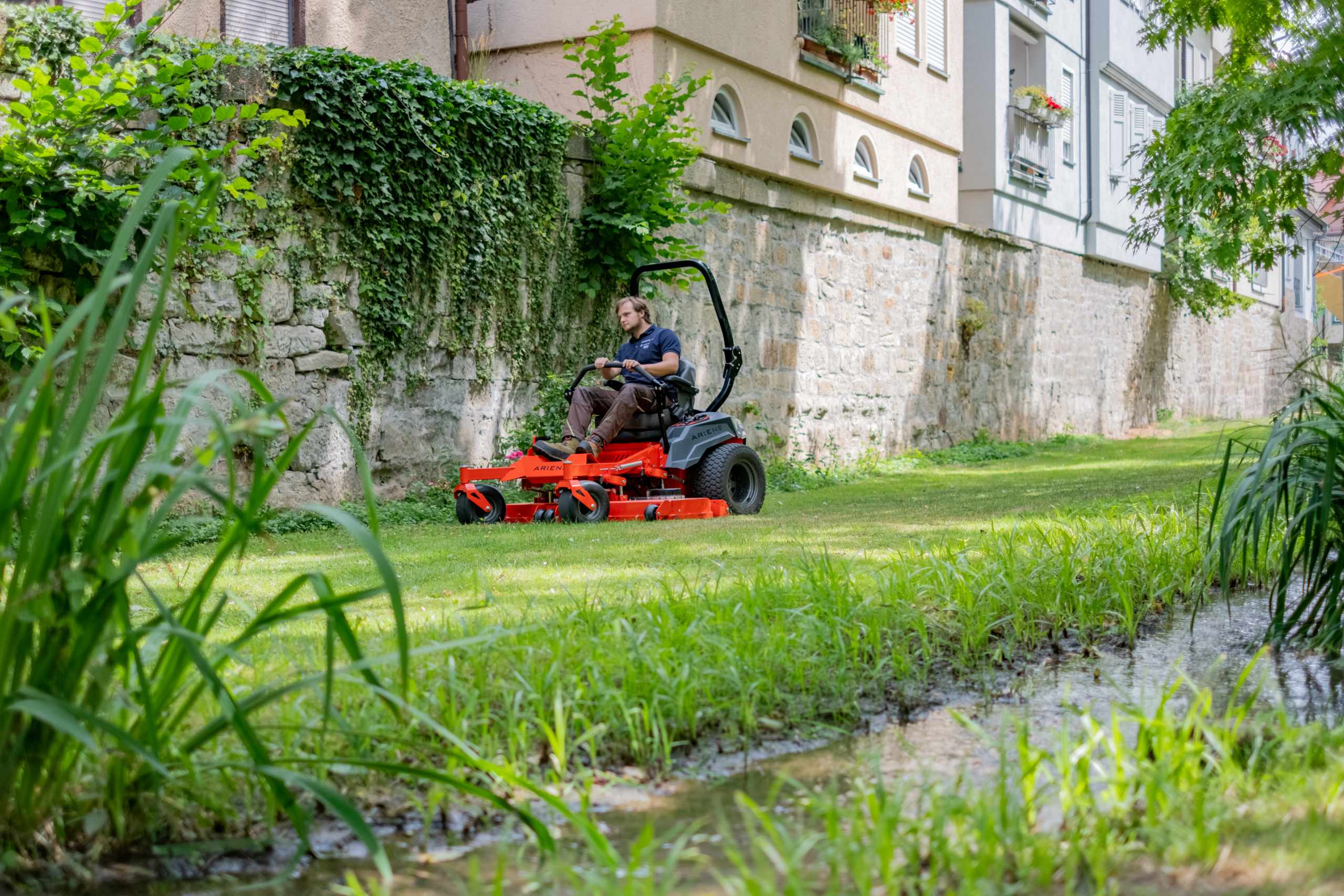

Battery-powered zero-turn mower. Particularly maneuverable between narrow obstacles and contoured, undulating areas.
Installing batteries in a mower is one thing. Achieving the performance, durability and reliability of a proven professional petrol model is another. Our models with the FusionCore replaceable battery system meet this demand.

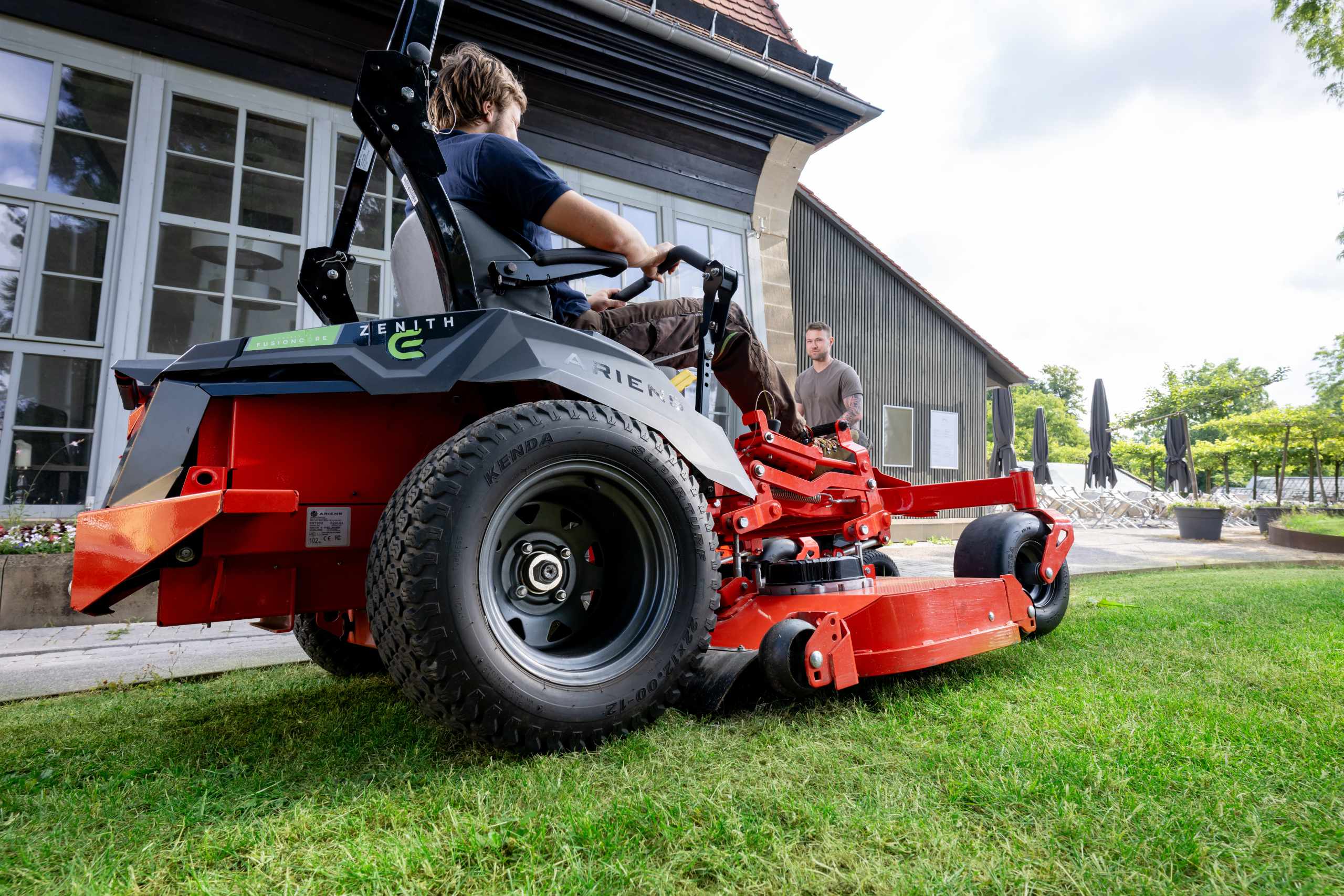

The ZENITH E 48R is the first professional electric zero-turn mower with interchangeable batteries. Designed to mow medium to large lawns for a whole day. The “R” on the ZENITH E 48R stands for “rear-discharge”. Advantage: The clippings are not thrown onto paths or into flower beds. The mown grass is discharged to the rear, between the wheels. Adjustable comfort seat for maximum driving comfort. With a cutting width of 122 cm, it is particularly manoeuvrable between narrow obstacles and on contoured, undulating surfaces. Professional warranty included.
- Powered by four interchangeable FusionCore lithium-ion 56V DC, 4kWh batteries
- Features patent-pending spindle technology, designed to absorb impact with minimal damage to spindles
- Achieve five hours continuous cutting on one charge (dependent on cutting conditions)
- Charge time of 5.3 – 12 hours (depending on charger)
- Features a 122cm (48″) fabricated rear discharge deck constructed of strong 7-gauge steel
- Industry-leading frame design
- ROPS fitted as standard for added operator protection
- Foot-operated, vertical pin selector deck lift system with 15 cutting positions
- High-back, full suspension seat
- Range of optional accessories is available
- 5-year or 1500 hours warranty/ 3-year battery warranty
Einsätze
Features & Benefits
The battery system of the ZENITH E consists of four interchangeable battery packs, each weighing 22.5 kg. The capacity of each individual Fusion Li-ion battery pack is 4 kWh. Total capacity: 4 x 4 kWh = 16 kWh. The ZENITH E can mow with just two battery packs and drive with just one.

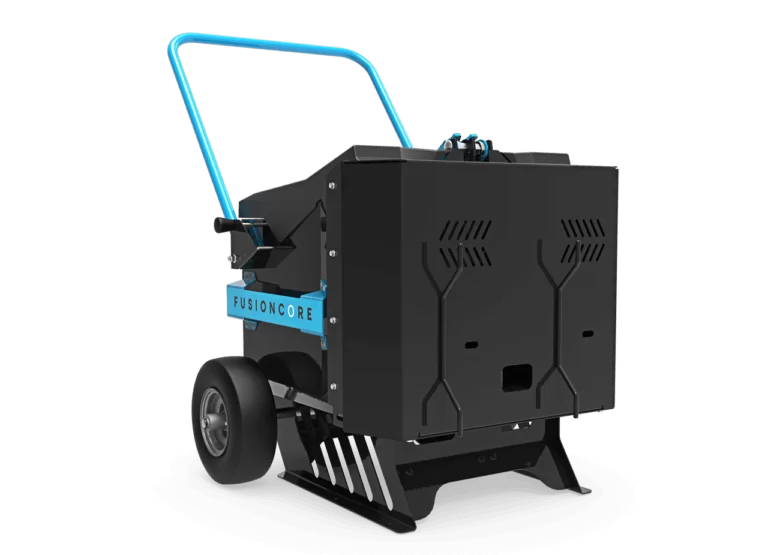

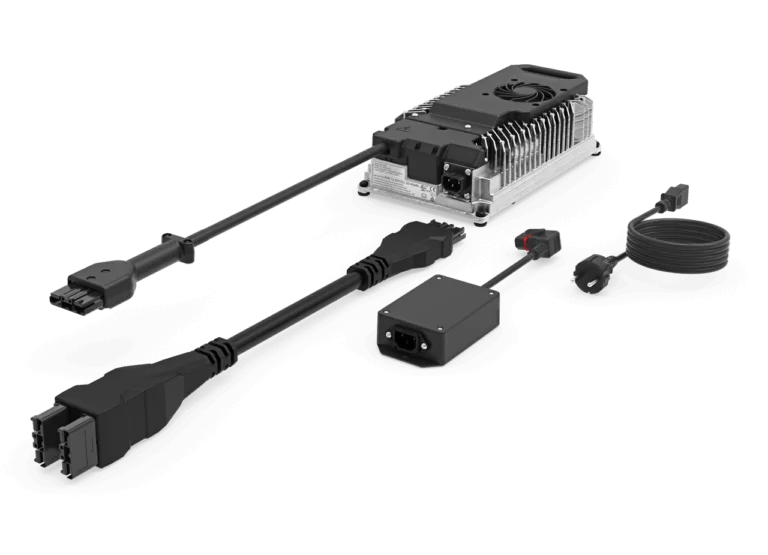

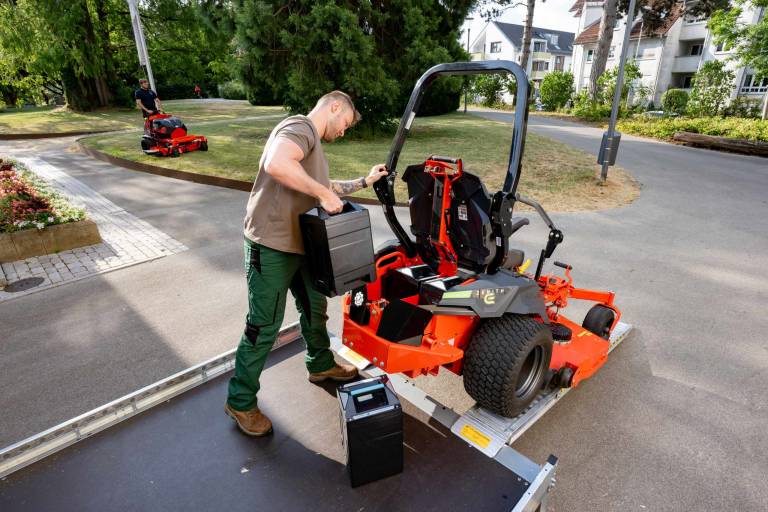

With four battery packs, you can mow for a maximum of 5 hours. After that, they can be replaced with full batteries in a matter of seconds. The charging time for four battery packs, with optional quick charger, is only 5:20 hours!
Ce système en attente de brevet permet à la ZENITH E de compenser les différences de puissance des batteries. Elle ne prélève de l'énergie sur les batteries pleines que jusqu'à ce qu'elles atteignent le même niveau de charge que les batteries moins chargées. L'énergie est d'abord prélevée sur les batteries entièrement chargées, avant d'être ensuite prélevée de manière égale sur les quatre batteries, ce qui permet d'obtenir une puissance constante qui préserve les cellules.
The ZENITH E has an ECO mode switch. The highest blade speed is not required when the amount of clippings is low or when travelling at a slower speed. In this case, use the ECO mode to reduce the blade speed.
Two independently operating, brushless electric motors with extra strong magnets, increased number of windings and recuperation function when braking. Objective: Low heat generation and long service life.
Coupling the electric motors with a planetary gearbox with double reduction.
Objective: The same smooth, jerk-free ride as a professional zero-turn mower with a petrol engine and hydrostat. Result: Drive the ZENITH E once and compare for yourself!
The mowing deck is the most heavily loaded component of a mower. Stability is particularly important here. The ZENITH E has a 14 cm deep, fully welded mowing deck made of 4.5 mm thick sheet steel, 20 mm steel edge, enclosed anti-scalp wheels and a welded 4-point suspension. The FUSIONCORE electric blade motors deliver a maximum of 3 x 3,500 watts when required. To protect the motor in the event of collisions, the blades are mounted on a slip clutch. This significantly reduces hard impacts on the motor. The air flow of the new X-Factor III mower deck with side discharge is optimised for the cleanest cut and lowest noise level.
Maximum driving comfort is essential for working productively and safely for hours on end. Keeping hard shocks and vibrations away from the driver is particularly important for his well-being and health. The hydro-pneumatic suspension of the driver's seat can be precisely adjusted to the driver's body weight. Adjustable armrests and a high backrest allow the driver to find their ideal sitting position.
The standard rollover protection system with safety belt (ROPS) offers additional protection for the driver. It is foldable and ergonomically tilted backwards to prevent painful bumping of the elbow while driving.

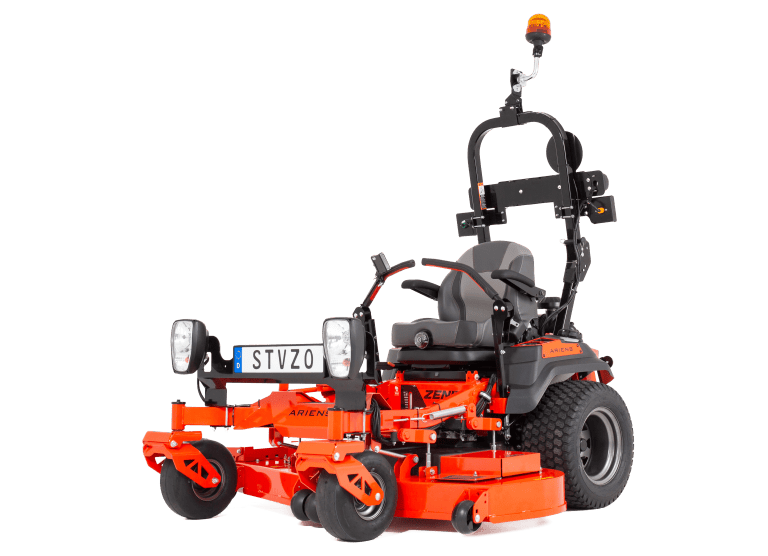

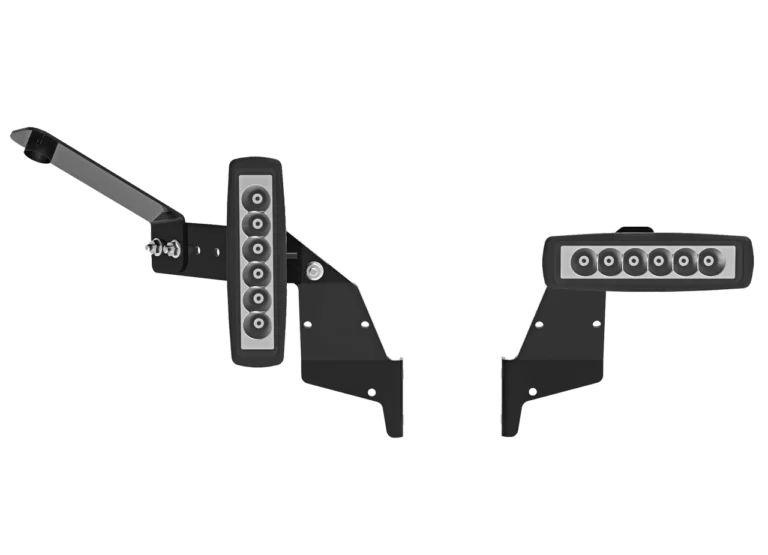

A new lighting kit is available for use on public roads. Installation by specialised dealers.
