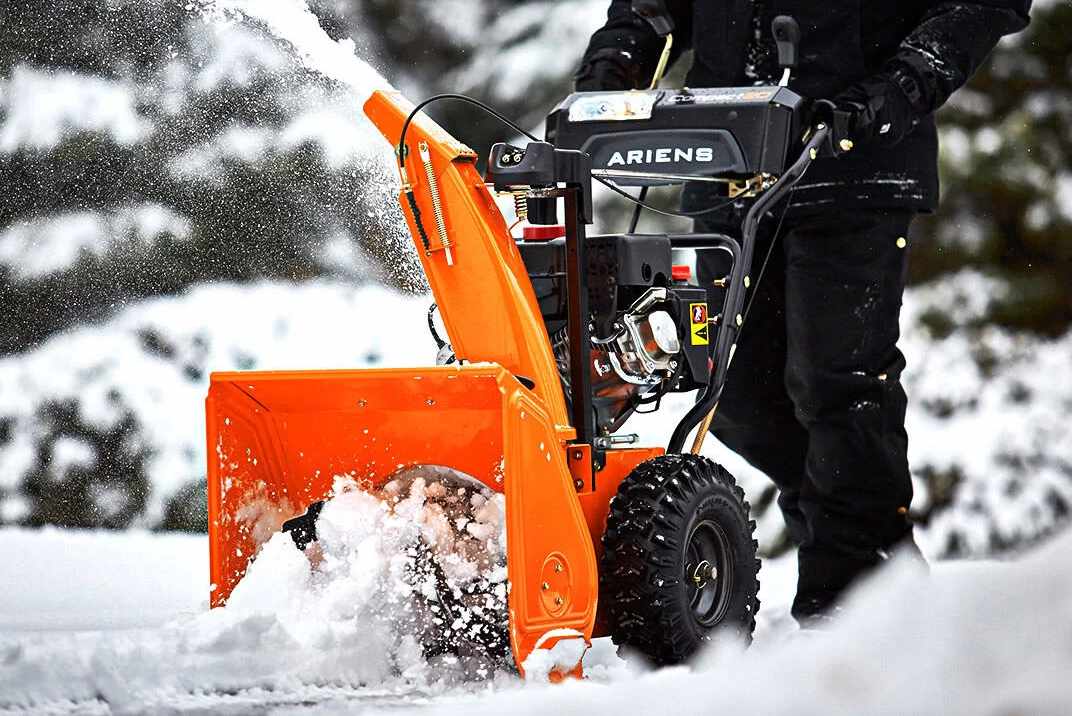

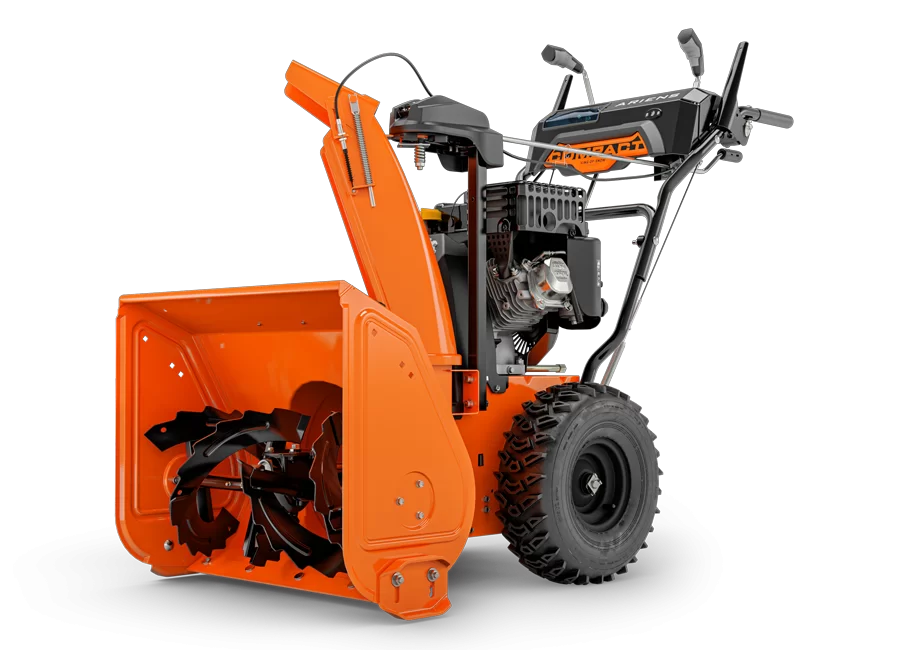

COMPACT 24

Clearing Width: 61 cm / 24"
Traction Drive: Mechanikus

Ready for use in just a few minutes. Convenient with electric start.

Take the snow by storm. Don’t let its size fool you, there’s a lot of power packed into every Ariens® COMPACT. It was designed to be easy enough to take out for a light dusting of snow and reliable enough to tackle up to 52 tons per hour. The COMPACT Series is designed for effortless agility without sacrificing legendary Ariens power.

COMPACT 24 has compact dimensions but is powerful in clearing. With AUTO-TURN, it is incredibly easy to maneuver. It is built entirely of metal and equipped with a finely tuned gearbox. It throws snow from 0.9 meters to 12.2 meters.

  • Featuring a 61cm (24″) clearing width that moves 54 tonnes of snow per hour
  • Reliable Ariens AX 208cc engine and electric start
  • Steel serrated 27.9 cm (11″) auger delivers exceptional performance through all types of snow conditions
  • 90 day commercial 3-year domestic warranty

Einsätze

AutoTurn® Electric start

Features & Benefits

All-steel construction

Sturdy, welded steel sheet with pressed beads and reinforced edges are the secret behind the long service life of Ariens snow blowers.

Auto-turn steering

Drive straight ahead with the rear axle locked for maximum grip. As soon as you steer the machine, the axle is unlocked and turning on the spot is child's play. A patented invention from Ariens.

Electric start

You can start the Compact models either with the rope starter or conveniently by pressing a button on the electric starter, which is connected to a 230 V socket. Very convenient at low temperatures.

Cast-iron gear case

The gearbox of the auger is a highly stressed part. We put a lot of effort into making it particularly stable. Because it is so stable, we also give a 5-year guarantee on it.

Grippy snow tires

Special snow profile for maximum traction. 38 cm (15") diameter.

Technische Daten

Model Number 920329
Engine Ariens AX 208 cm³
Stage Type Kétfokozatú
Engine Displacement 208
Maximum Power 4,9 / 6,7 kW/hp @ 3,650 rpm
Max. Torque 12,78 Nm
Starting System 230 V & Húzókötél
Traction Drive Mechanikus
Drive Axle Auto-Turn
Gears Forward / Reverse 6 / 2
Clearing Width 61 cm / 24"
Throwing distance 0,9 - 12,2 m
Tonnes per hour 52
Chute Rotation 2,5 x Gyors Fordulat, 205°
Auger Diameter 27.9 cm
Auger Type Acél, Fogazott
Auger housing 24" (61 x 50 cm)
Tyre size 15" x 5-6"
LED Light 1
Skid Shoes Acél, Fordítható
Scraper Bar Acél, Állítható
Deflector Control Távolról Kezelhető
Lenght 135
Width 67 cm
Height 110 cm
Weight 100 kg
Gear Case Warranty 5 Év Lakossági / 1 Év Kereskedelmi
Product Warranty 3 Év Lakossági / 90 Nap Kereskedelmi
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Zubehör

Hókabin

Védje magát az időjárás ellen egy tágas, robusztus, acélvázas Ariens Sno-Thro® kabinnal. Minden modellhez.

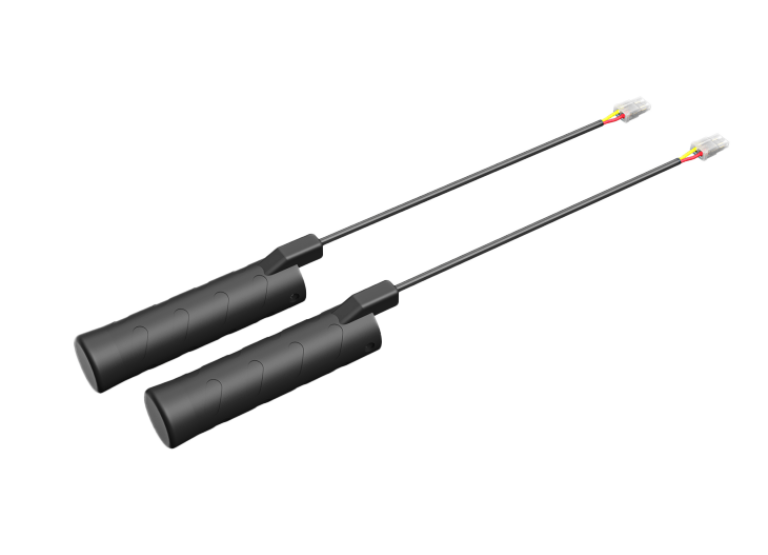

Fűtött kézfogantyúk

Maradjon kényelmesen a leghidegebb körülmények között is ezzel az ergonomikusan tervezett fűtött fogantyúval. Be- és kikapcsoló gomb is tartozik hozzá. A CLASSIC és COMPACT modellekhez.

LED műszerfal reflektor

Az Ariens OEM LED reflektor csere készlet, amelyet az összes 2011-es és újabb Ariens hótoló modellel lehet használni, amelyek eredetileg halogén lámpával rendelkeznek.

Elől elhelyezhető súlycsomag - 4,5 kg

Kemény hó esetén a csigaházra helyezett plusz súly növeli a kaparóél nyomását a talajon.

Vágócsavar

Eredeti vágócsavar. A CLASSIC, COMPACT, DELUXE, PLATINUM és PROFESSIONAL modellhez.

Hóeltávolító lapát

Ha hó és jég rakódott fel az Ariens Sno-Thro kilövéscsatornájára és lapátkerékére, a Hóeltávolító Lapát a tökéletes eszköz a eltávolításához.

Tisztító lapát ecsettel

Az Ariens tisztító eszköz segít a hó és jég eltávolításában a kipufogó cső és a lapátkerekű hófúvó gépekről.

Hótoló fedő

Az Ariens hótoló fedő megóvja a berendezést, egész évben védelmet nyújt az Ariens hótolóhoz. Az Ariens fedők tartós, mosható és szaggatásálló 300 denier polieszterből készülnek.

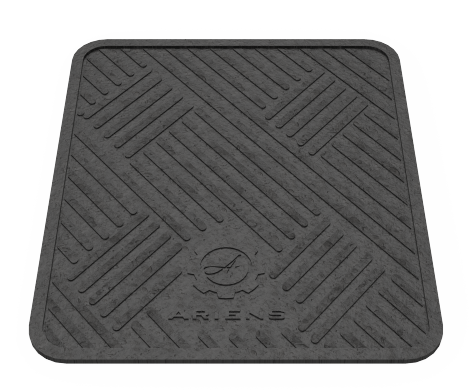

Padlószőnyeg 83x83 cm

Védje meg garázsa vagy műhelye padlóját az üzemanyag, olaj, rozsdafoltok és karcolások ellen ezzel a nehéz teherbíró padlószőnyeggel.

Nem lecsiszoló csúszó talp

Tartós polietilén anyag, amely védelmet nyújt az otthon körüli díszítő és érzékeny felületeknek a karcolódás és a károsodás ellen.
