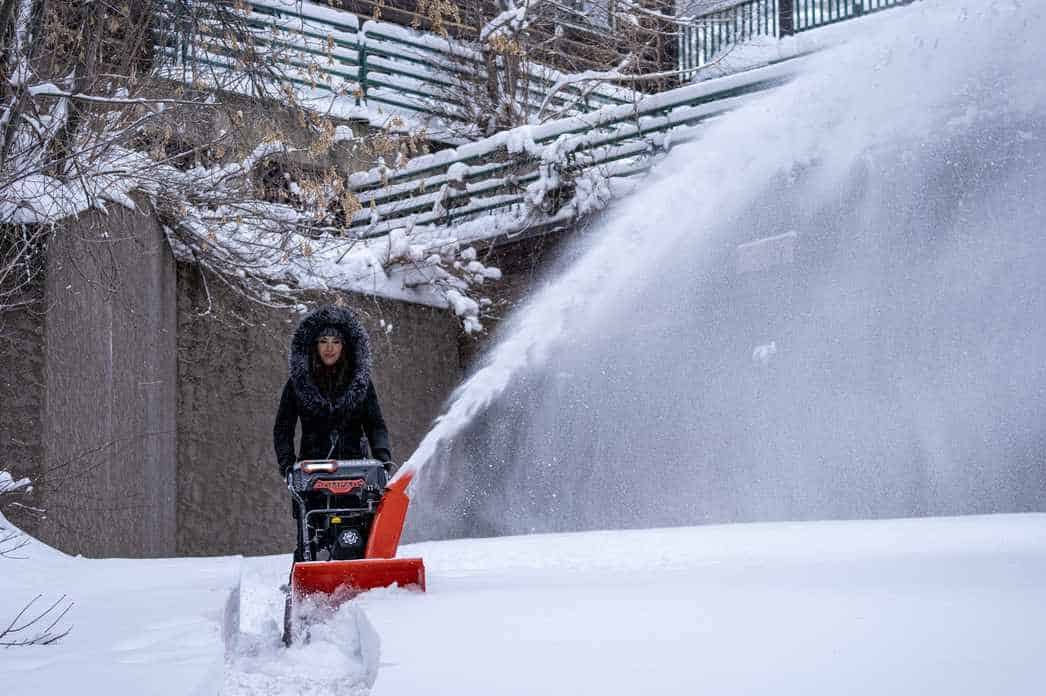

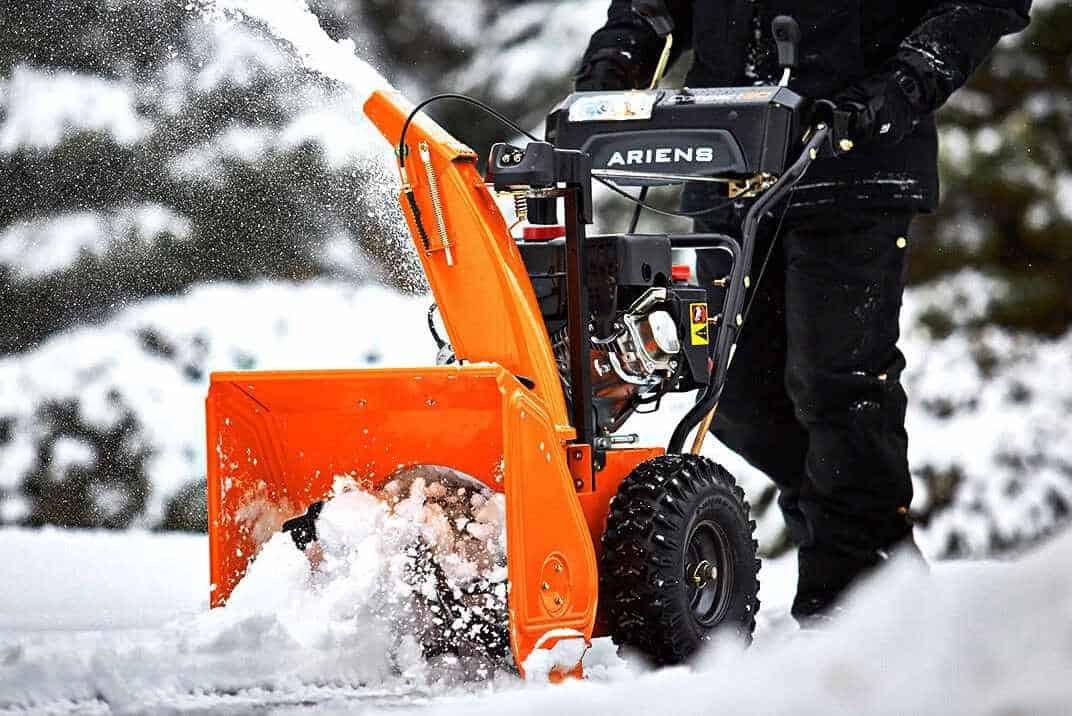

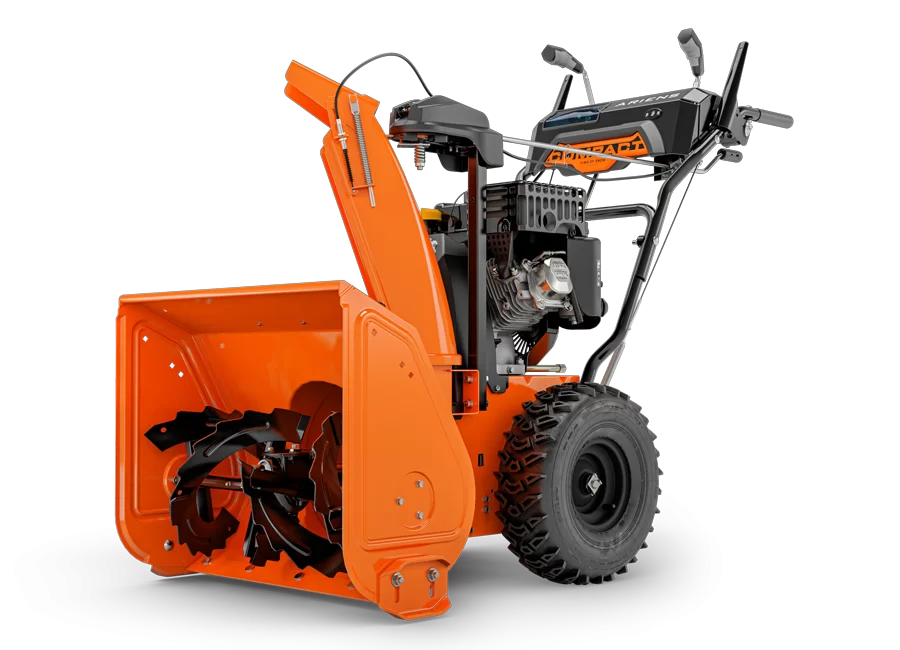

COMPACT 24

Ryddebredde: 61 cm / 24"
Drift med trekkraft: Mekanisk

Klar til bruk på bare noen få minutter – praktisk med elektrisk start.

Ta snøen med storm. Ikke la størrelsen lure deg – det er mye kraft pakket inn i hver eneste Ariens® COMPACT. Den er designet for å være enkel å bruke til lette snøfall, men også pålitelig nok til å håndtere opptil 52 tonn snø i timen. COMPACT-serien er laget for smidig manøvrering uten at det går på bekostning av den velkjente Ariens-kraften.

COMPACT 24 har kompakte dimensjoner, men er svært effektiv når det gjelder snørydding. Med AUTO-TURN er den utrolig lett å manøvrere. Maskinen er helkonstruert i metall og utstyrt med en presist justert girkasse. Den kaster snø fra 0,9 til 12,2 meter.

  • Ryddebredde: 61 cm (24″) – håndterer opptil 54 tonn snø i timen
  • Driftssikker Ariens AX 208 cc-motor med elektrisk start
  • Robust, tagget stålskrue på 27,9 cm (11″) sikrer utmerket ytelse under alle snøforhold
  • Garanti: 90 dager for kommersiell bruk, 3 år for privat bruk

Einsätze

AutoTurn® Electric start

Features & Benefits

All-steel construction

Sturdy, welded steel sheet with pressed beads and reinforced edges are the secret behind the long service life of Ariens snow blowers.

Auto-turn steering

Drive straight ahead with the rear axle locked for maximum grip. As soon as you steer the machine, the axle is unlocked and turning on the spot is child's play. A patented invention from Ariens.

Electric start

You can start the Compact models either with the rope starter or conveniently by pressing a button on the electric starter, which is connected to a 230 V socket. Very convenient at low temperatures.

Cast-iron gear case

The gearbox of the auger is a highly stressed part. We put a lot of effort into making it particularly stable. Because it is so stable, we also give a 5-year guarantee on it.

Grippy snow tires

Special snow profile for maximum traction. 38 cm (15") diameter.

Tekniske data

Modellnummer 920329
Motor Ariens AX 208 cm³
Trinn Type To-trinns
Slagvolum 208
Maksimal effekt 4,9 / 6,7 kW/hp @ 3,650 rpm
Maks. dreiemoment 12,78 Nm
Start system 230 V & snorstart
Drift med trekkraft Mekanisk
Drivaksel Auto-Turn
Gir fremover / bakover 6 / 2
Ryddebredde 61 cm / 24"
Kasteavstand 0.9 - 12.2 m
Tonn per time 52
utkaster rotasjon 2,5 x Quick Turn, 205°
skoveldiameter 27.9 cm
skoveltype Serratert stål
skovelhus 24" (61 x 50 cm)
Dekkstørrelse 15" x 5-6"
LED-lys 1
Glidesko Vendbart stål
Skrapelist Justerbart stål
Deflektor kontroll Remote
Lengde 135
Bredde 67 cm
Høyde 110 cm
Vekt 100 kg
Garanti for girkasse 5 år privat / 1 år kommersiell
Garanti 3 år privat / 90 dager kommersiell
Endringer i teknologi, utstyr og pris forbeholdes. Ingen krav kan utledes fra informasjon eller illustrasjoner.

Tilbehør

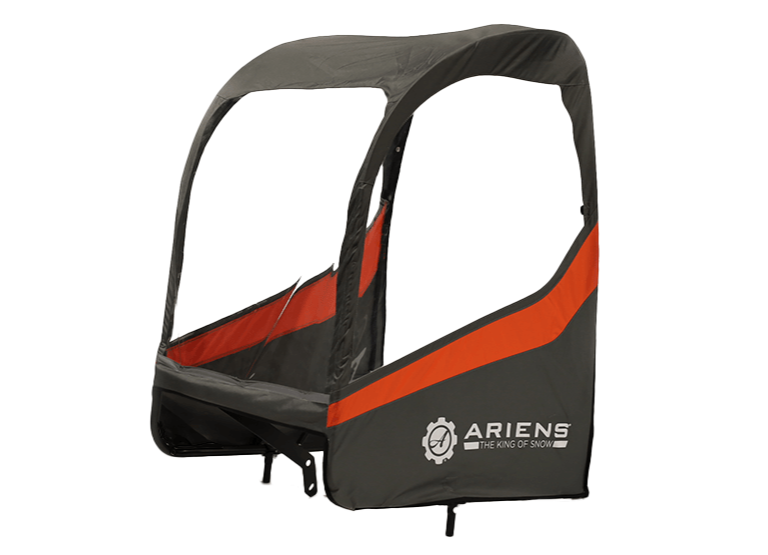

Snow cab

Protect yourself from the elements with a spacious, rugged, steel-frame Ariens Sno-Thro® cab. For all models.

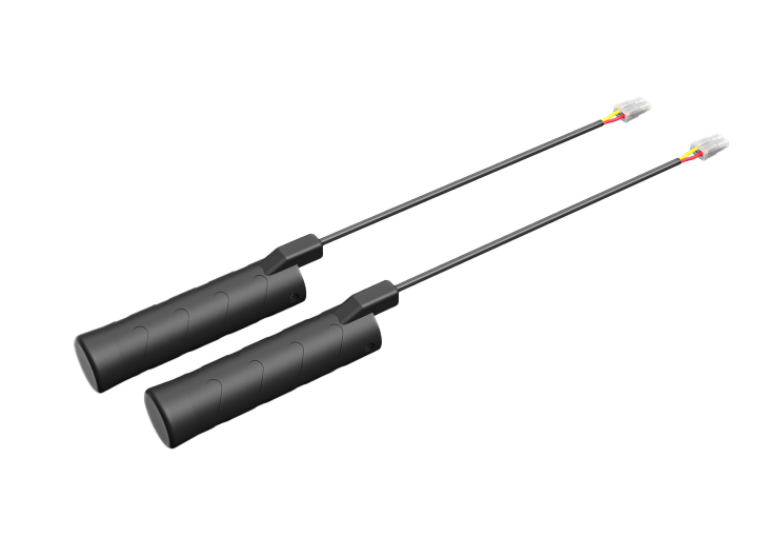

Heated hand grips

Stay comfortable in the coldest conditions with these ergonomically designed heated handle grips. On/off switch included. For CLASSIC and COMPACT.

LED dash headlight

Ariens OEM LED headlight replacement kit to be used on all Ariens snow-blowers model years 2011 and newer that have halogen light original.

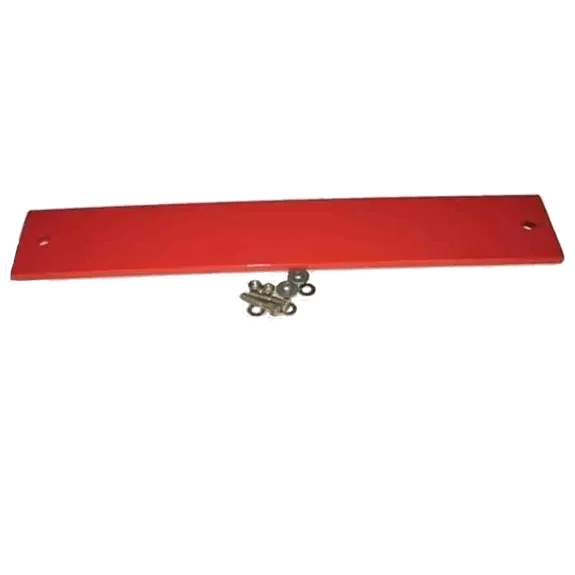

Front weight kit - 4,5kg

In case of firm snow, the additional weight on the auger housing increases the pressure of the scraper edge to the ground.

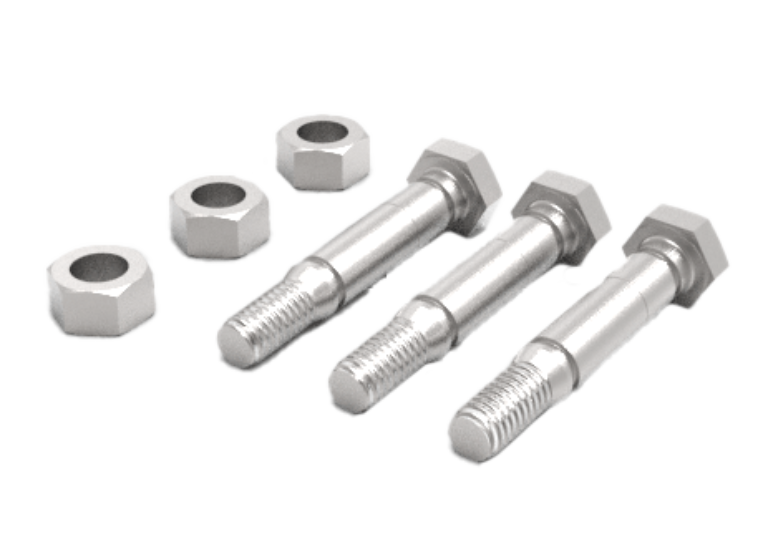

Shear bolt

Original shear bolt. For CLASSIC, COMPACT-, DELUXE-, PLATINUM und PROFESSIONAL models.

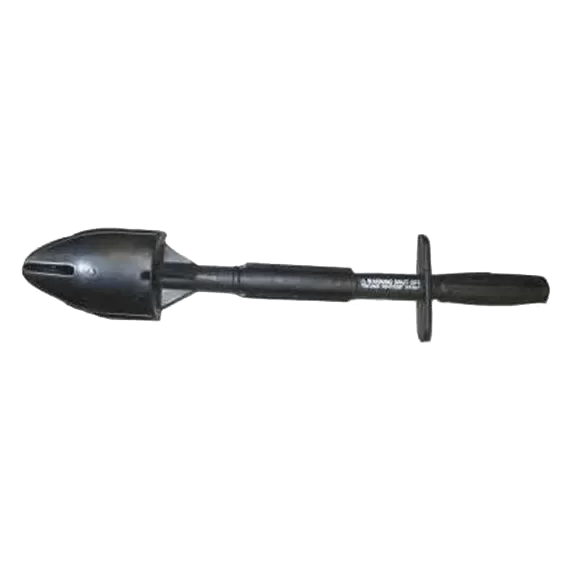

Snow Clean out shovel

If there is built-up snow and ice on the discharge chute and impeller of your Ariens Sno-Thro, the Clean-Out Spaded Tool is the perfect accessory to help remove it.

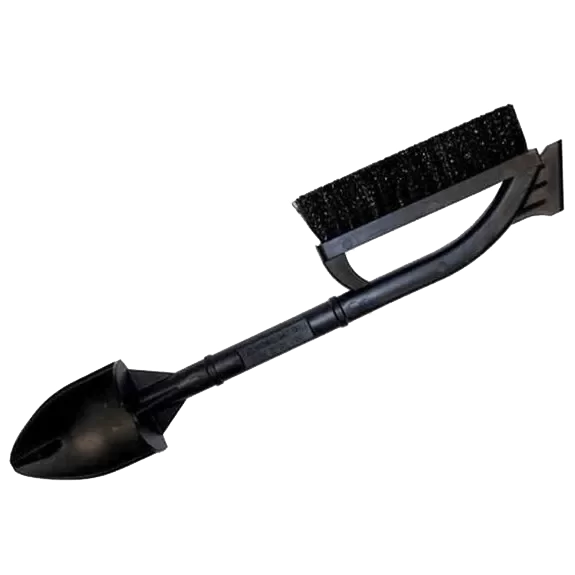

Clean out shovel with brush

The Ariens Clean-Out Tool cleans snow and ice from the discharge chute and impeller of your Ariens snow blower.

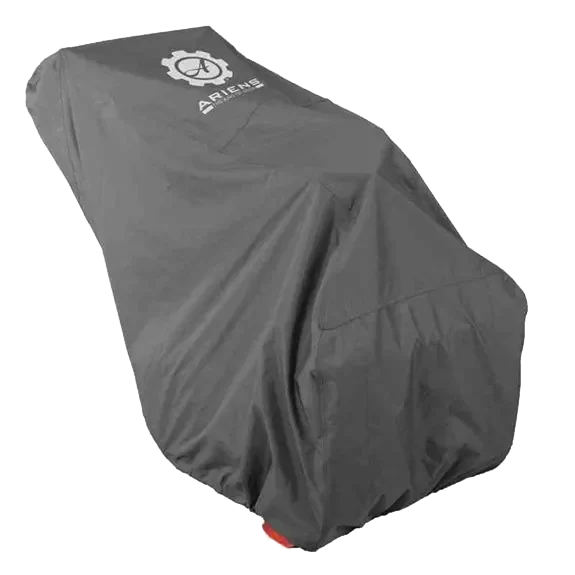

Cover snow blower

Designed to protect your investment, the Ariens snow cover provides year-round protection for your Ariens snow blower. Ariens covers are constructed of tough, durable, washable and tear-resistant 300 denier polyester.

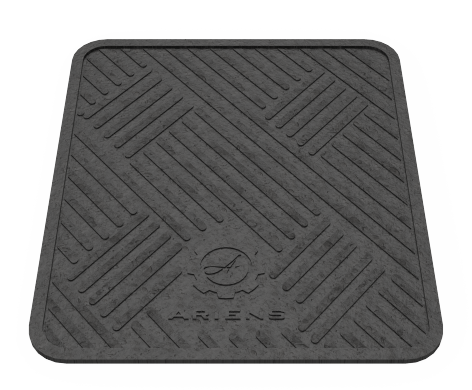

Floormat 83x83cm

Protect the floor of your garage or shed from fuel, oil, rust spots and scratches with this heavy duty floor mat.

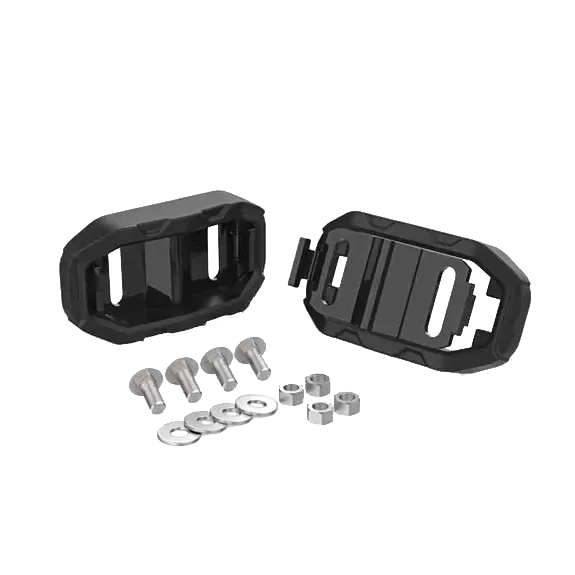

Non abrasive skid shoe

Durable polyethylene material providing protection on decorative and sensitive surfaces around your home from scratches and damage.
