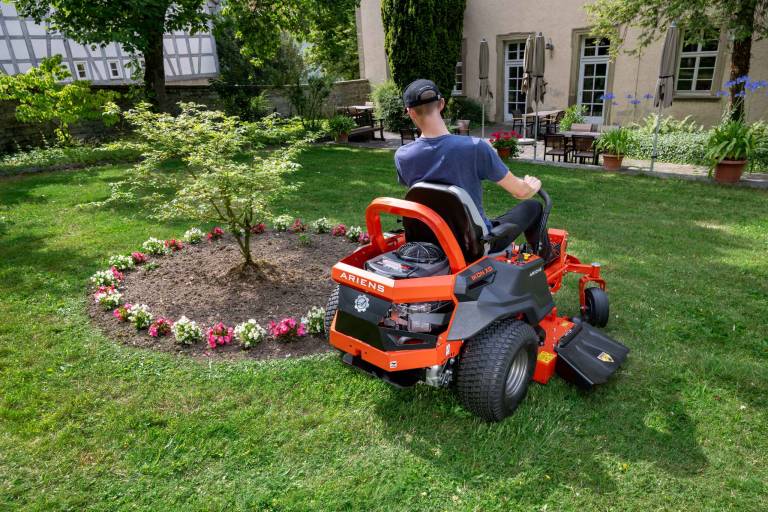

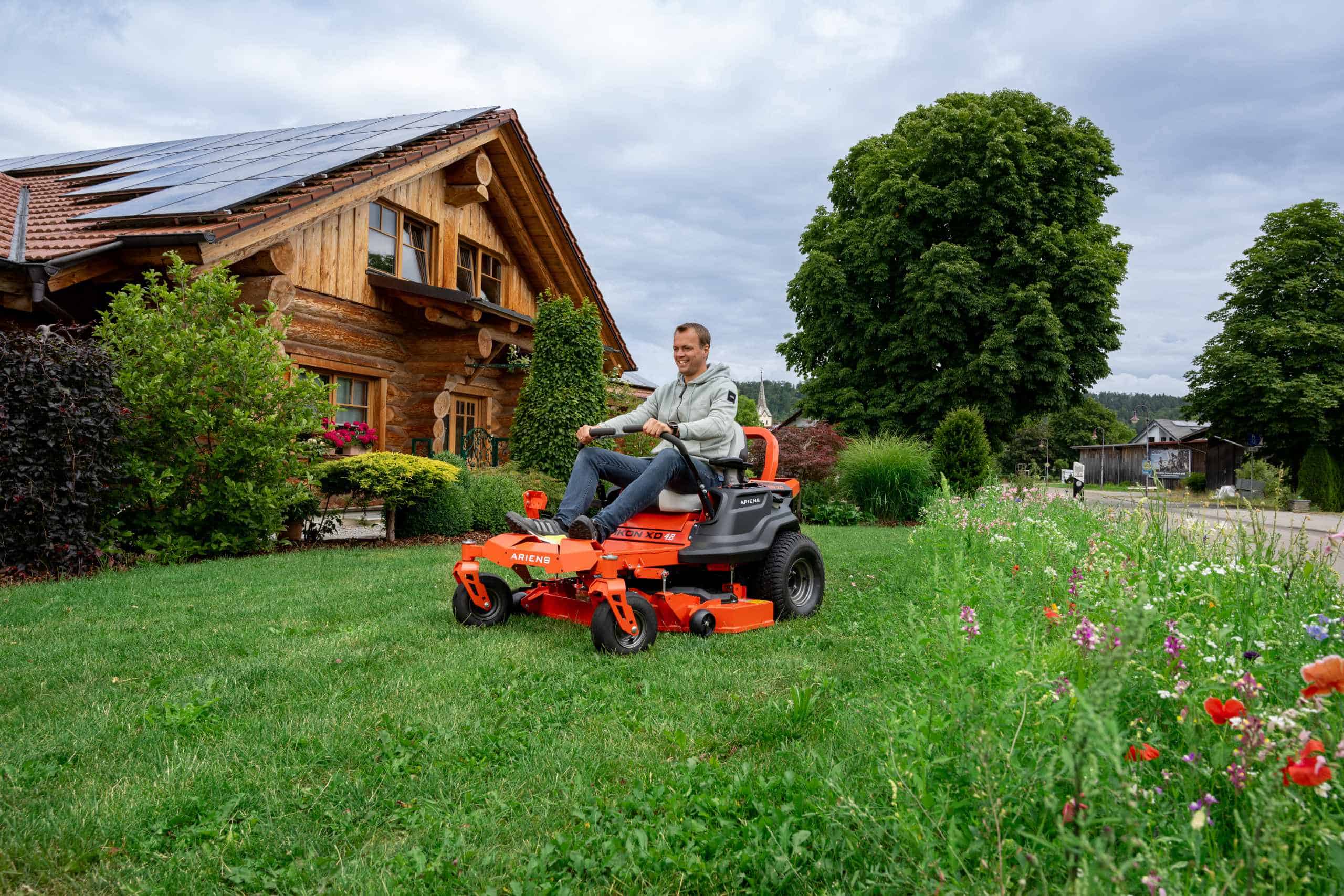

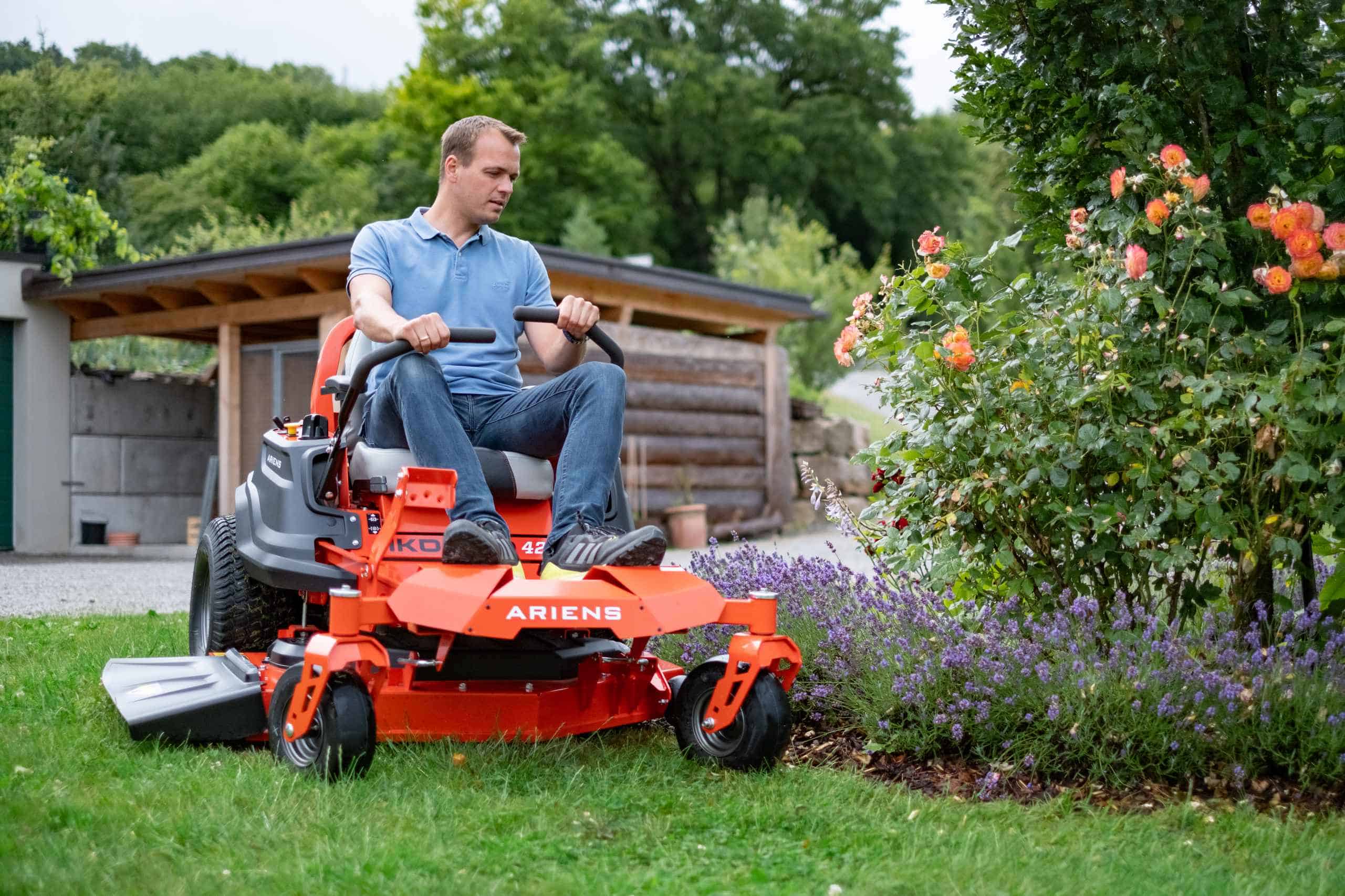

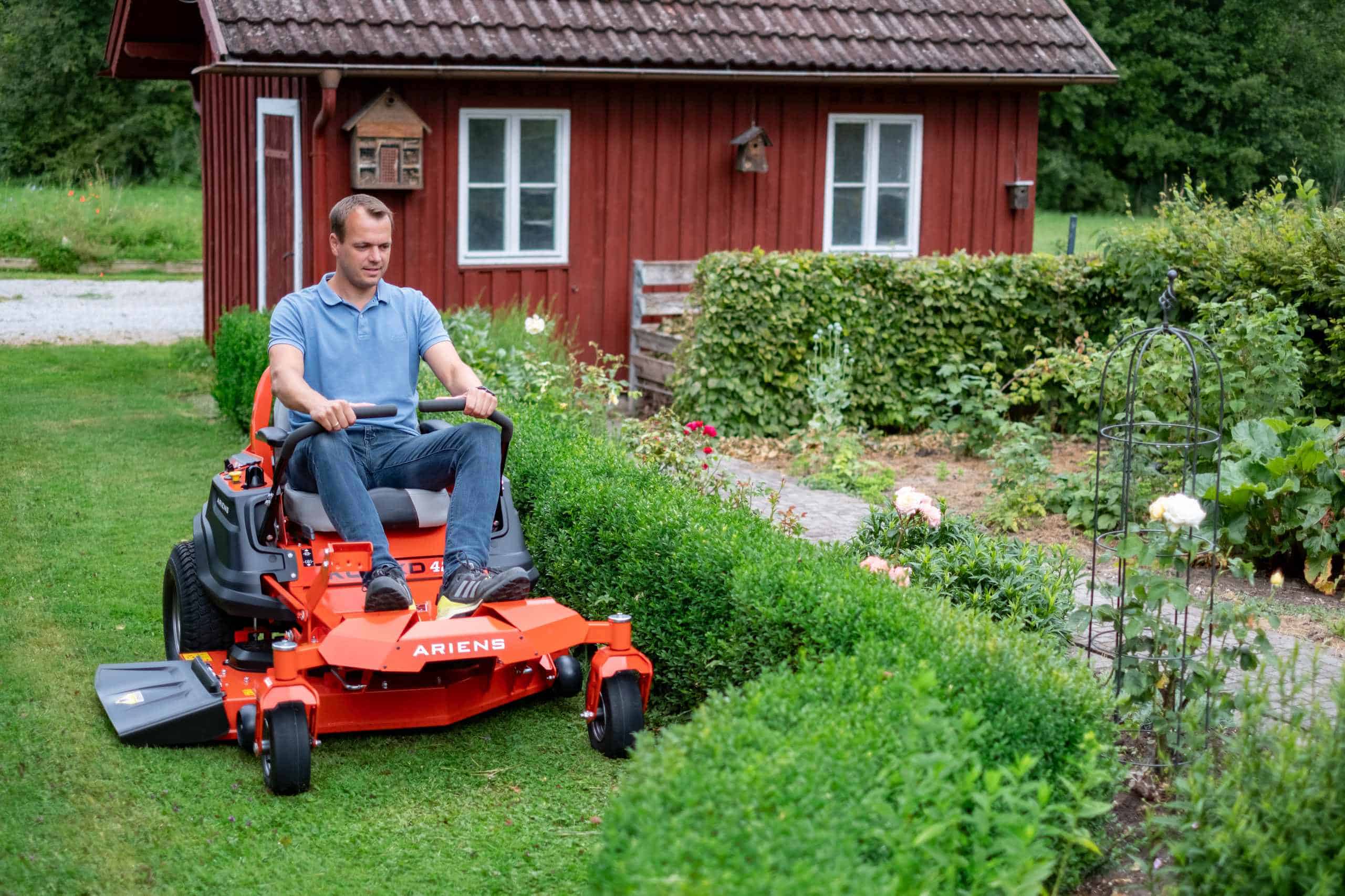

IKON XD 42

Klippebredde: 107 cm (42")
Dekktype: Sideutkast

Komfort og ytelse for store hager

Laget for hager i alle størrelser og fullpakket med funksjoner fra sine større søsken. Nyt økt komfort og ytelse med IKON XD 42. Med en førsteklasses Kawasaki-motor, en klippebredde på 107 cm, en robust rammekonstruksjon i stål og høy komfort, er denne gressklipperen det ideelle valget for mellomstore plener og hager – år etter år.

  • Klippeaggregat: 107 cm (42″) sveist konstruksjon laget av 11-gauge stål
  • Motor: Kawasaki® FR651 726cc for kraft og pålitelighet
  • Klippehøydejustering: Dreieknapp med 13 forskjellige høydeinnstillinger
  • Ramme: Rørformet stålkonstruksjon for ekstra holdbarhet
  • Sete: Komfortabelt høyrygget sete med armlener og polstrede kontrollarmer
  • Tilbehør: Et bredt utvalg av tilleggsutstyr er tilgjengelig
  • Garanti: 3 år eller 300 timer

Einsätze

Semi-Pro Private Petrol Optional mulching kit Ride-On (sitting) Side discharge Flat terrain Undulating terrain Hilly terrain Small areas Medium-sized areas

Features & Benefits

Commercial-style deck

10.2 cm deep, made of 2.9 mm thick sheet steel with reinforced edge and 4-point suspension. Powerful air flow and extra large ejection for a clean cut. Anti-scalp rollers prevent contact with the ground.

Comfort seat

The comfortable, adjustable seat with high backrest makes longer mowing intervals less tiring.

Large tyres

The large-diameter tyres with a wide footprint offer excellent traction and a smooth and comfortable ride.

Integrated hydrostatic wheel motors

The continuously variable, hydrostatic drive (combination of oil pump, oil motor and mechanical gearbox in one housing) delivers an enormous torque of 291 Nm and ensures smooth driving and the most precise reactions. It is also maintenance-free.

Rotary selector switch for cutting height adjustment

Ergonomic quick selector switch for the 13 cutting heights - from 3.8 cm to 11.4 cm. Convenient lifting of the cutting deck using the foot pedal.

Premium engines

The name Kawasaki stands for absolute reliability, high performance and durability when it comes to engines. 726 cm³ OHV 4-stroke engine. Max. 15.4 kW (20.6 hp)/3,600 rpm.

Tekniske data

Modellnummer 915340
Motor Kawasaki® FR651 V-Twin OHV
Slagvolum 726 cm³
Drivsystem Hydro-Gear® EZT® 2200 Transaxles
Maksimal motoreffekt 14.5 kW / 19.4 hp at 3,600 rpm.
Drivstoffkapasitet 10.5 l
Maks. hastighet forover / bakover 11.3 km/h / 4.8 km/h (7 mph / 3 mph)
Dekktype, Bakutkast / Sideutkast /
Komposteringssett optional
Dekkmateriale 2.9 mm sheet steel with double thickness around blade support
Dekkonstruksjon welded
Dekkløftesystem foot operated
Antall kniver 3
Spindelmateriale Steel
Spindelaksel Steel
Spindeldrift V-belt
Spindelclutch Electric Warner®
Klippebredde 107 cm (42")
Klippehøyder 3.8 cm - 11.4 cm (1.5" - 4.5")
Klippeposisjoner 13
Hjul foraksel optional
Forhjul 11 x 4-5
Bakhjul (tommer) 22 x 8-8
Sete High back padded seat w/ armrests
Timeteller
Vekt 270 kg
Lengde 197 cm
Bredde 138 cm w/ chute; 112 cm w/ mulch kit
Høyde 102 cm
Begrenset garanti maskin 3 years / 300 hrs.
Endringer i teknologi, utstyr og pris forbeholdes. Ingen krav kan utledes fra informasjon eller illustrasjoner.

Tilbehør

Mulch kits

For installation in side discharge cutter decks. With every rotation of the blade, the mower sucks up grass in the closed cutting chamber, where the clippings are cut several times before they fall finely chopped onto the lawn.

Striping kit

There is nothing more pristine in the spring and summer than a newly mown lawn with stripes. Add that finishing touch with a striping kit that easily mounts to ZENITH, APEX and IKON XD side discharge models.

Trailer hitch kit

Transform your Ariens zero-turn into a versatile machine simply by adding the hitch. The kit's robust design allows you to tow a range of accessories.

LED headlight kits

Mow longer, later, and safer with a headlight kit from Ariens. For mounting on the side frame. For ZENITH, APEX and IKON XD.

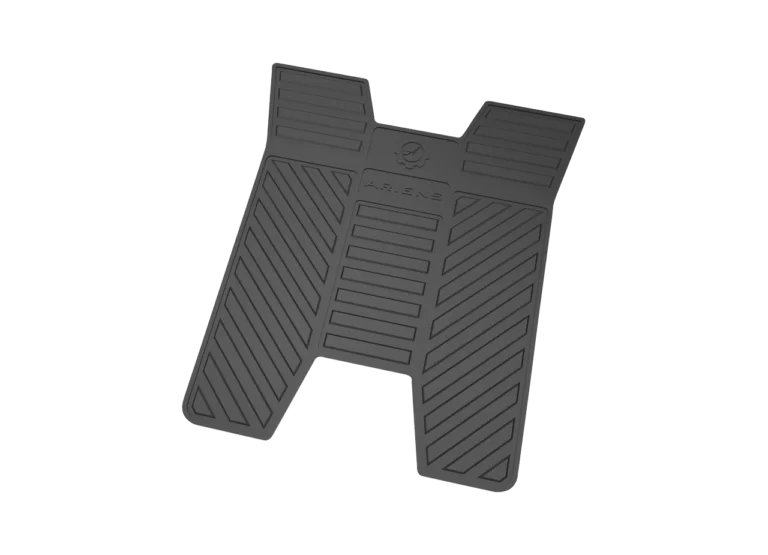

Floor mat (IKON XD)

For the IKON XD. Increases driving comfort. The mat absorbs vibrations on the feet and prevents feet from slipping while driving and when dismounting. 100% weatherproof rubber. Easy to remove for cleaning.

Zero-turn cover

Protect your investment and extend the life of your equipment with an Ariens zero-turn cover. Fits EDGE, IKON XD and APEX models.
