ARROW E 52
Batteridrevet stand-on Zero-Turn klipper med stor kapasitet – uten utslipp
Stand-on Zero-Turn klippere kombinerer tempo, kompakt design og smidighet. Den stående arbeidsstillingen er ergonomisk og avlaster rygg og skuldre gjennom hele arbeidsdagen.
ARROW E 52 er en profesjonell, elektrisk stand-on klipper med utskiftbare FusionCore-batterier. Den patentsøkte spindelteknologien reduserer belastning ved støt, og QuickSwap-systemet gir kapasitet til heldags klipping (avhengig av forhold). Klippdekket er et sveiset 132 cm (52″) sideutkast klippdekk i 4,5 mm stål, og mulchingsett kan leveres som tilleggsutstyr. Ladetiden er 5,3–12 timer, avhengig av lader.
- Drives av fire utskiftbare FusionCore litium-ion 56V DC, 4 kWh batterier
- Patentsøkt spindelteknologi absorberer støt med minimal belastning på spindlene
- QuickSwap-system gir kapasitet til heldags klipping (avhengig av forhold)
- Ladetid 5,3–12 timer (avhengig av lader)
- Har et sveiset 132 cm (52″) sideutkast klippdekk i 4,5 mm stål
- Mulchingsett tilgjengelig som tilleggsutstyr
- Brukervennlig betjening
- Sammenleggbar ståplattform for enklere transport og lagring
- ECO-modus forlenger batteritiden
- LED-display viser nøkkelinformasjon
- Fotassistert høydejustering av klippdekket
- 5 års eller 1500 timers garanti / 3 års batterigaranti
*Bilder og illustrasjoner er veiledende. Det faktiske produktet kan avvike.
Einsätze
Features & Benefits
4 individual 56V battery packs of 4 kWh each = 16 kWh total capacity. Premium Panasonic Li-NMC cells.
The ARROW E uses the same four 56V battery packs as the ZENITH E. You can mow at full power even with just two batteries. Even a single battery is sufficient for transporting the machine. Fast charging of the four batteries from 0-100% in just 5:20 hours.
The high-performance spindle motors of the knives are equipped with a slip clutch. In the event of a collision with a foreign object, it allows the blade to "slip" and thus protect the motor from damage. If the worst comes to the worst, the cutter shafts and lower bearings can be replaced.

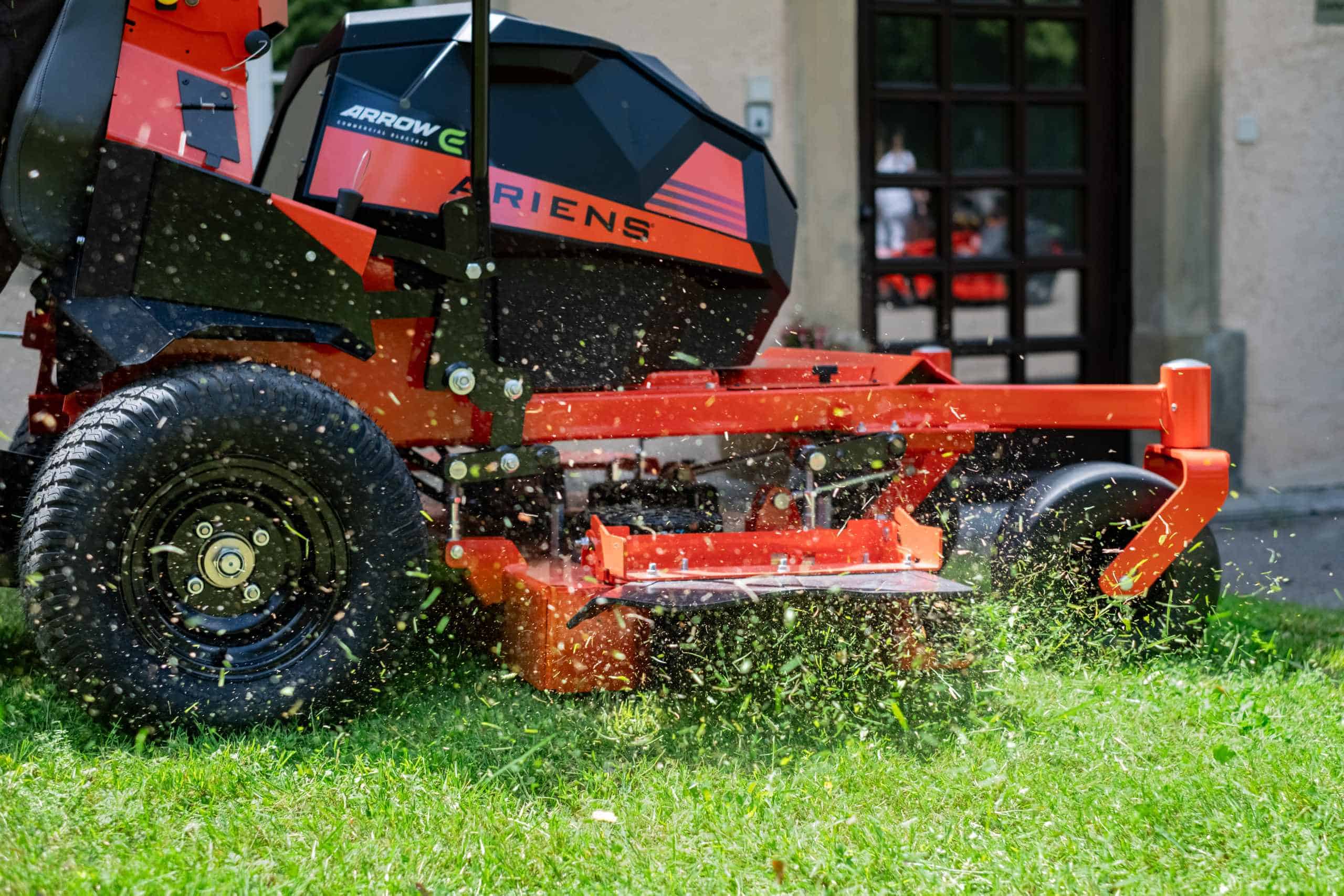

Quality has its weight. The solid mowing deck of the ARROW E is welded from 4.5 mm thick sheet steel. The deck height is adjusted smoothly using a combined system of foot pedal and manual lift.

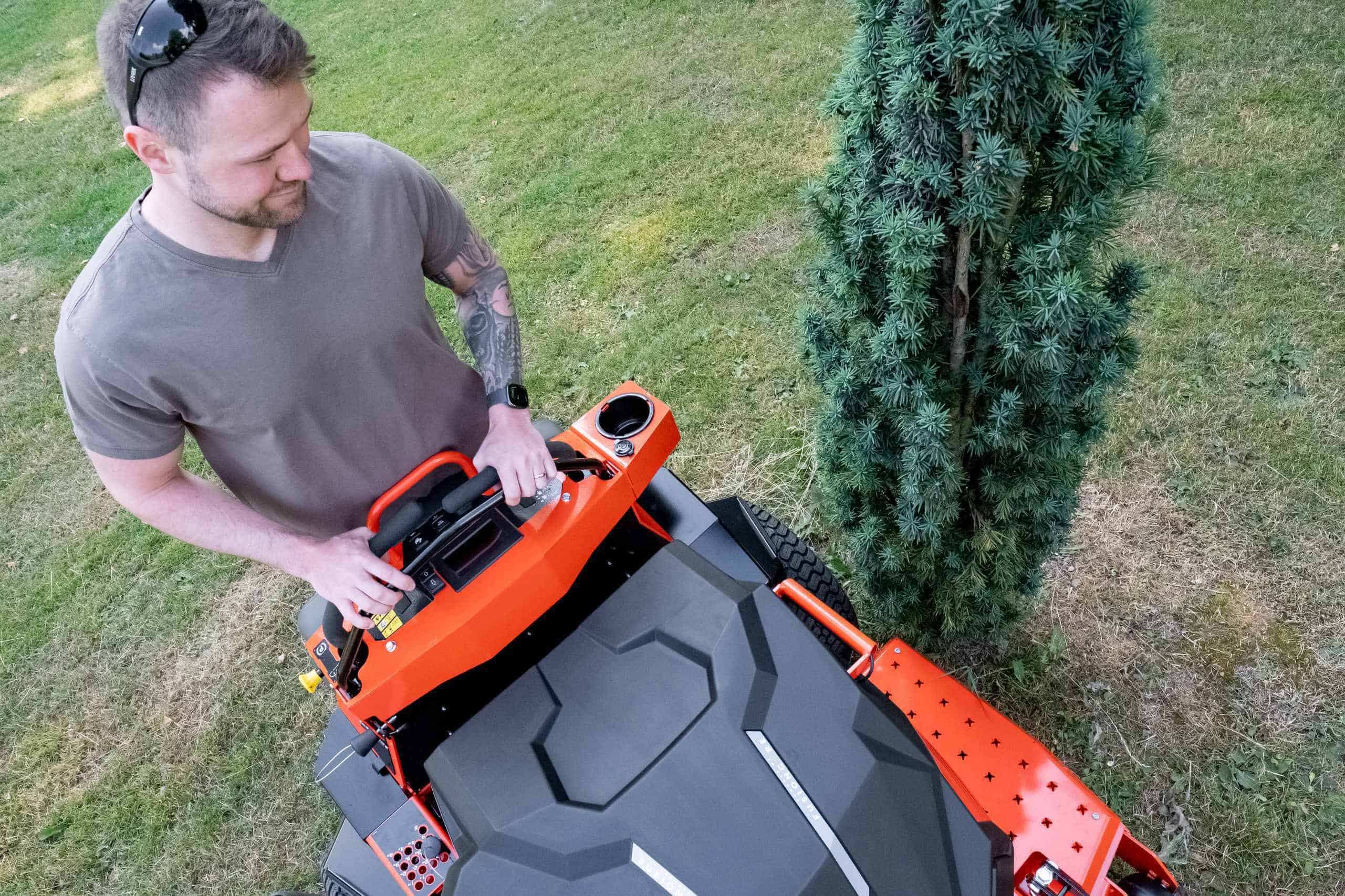

The color LED display keeps you constantly up to date.
• Charge status of all batteries
• Operating modes.
• Operating hours counter
• System diagnostics
• Fault messages
No external device is required for diagnostics.
The ARROW E has an ECO mode switch. The highest blade speed is not required when the amount of clippings is low or the driving speed is slow. In this case, use the ECO mode to reduce the blade speed.
The spring-mounted driver's platform can be folded upwards for transportation. It can also be used when working under low-hanging branches or when driving on slopes of up to 20°. This turns the ARROW E into a walk-behind mower in no time. By the way: No suspension system in the world is as good as human legs. This is a major advantage of stand-on mowers for the health of the driver.
All functions of the machine are clearly visible and within easy reach of the operator. The maximum travel speed can be limited via a quick action mechanism with magnetic plug. Also features electric parking brake and two driving speed levels.
