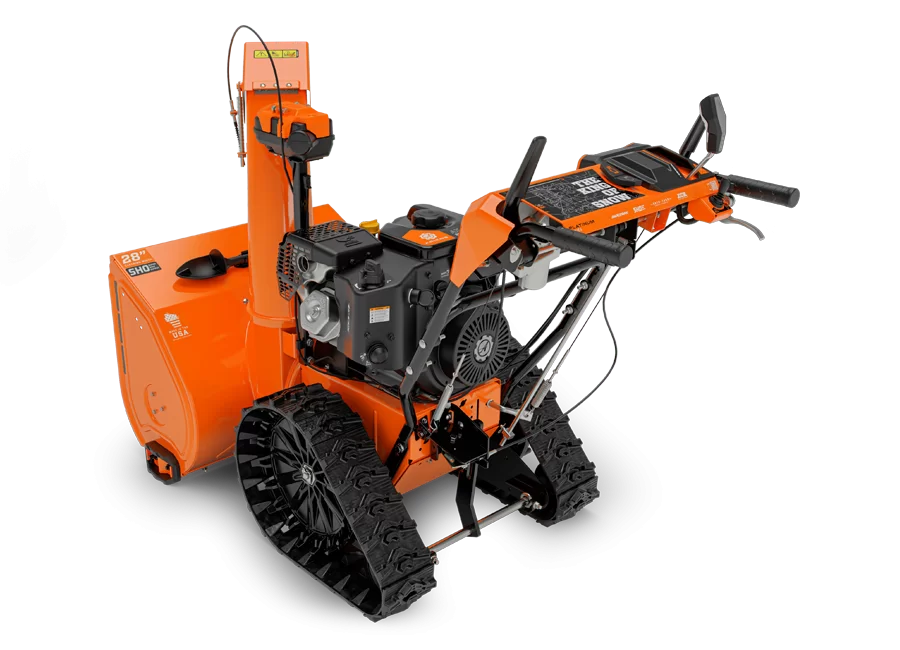

PLATINUM 28 RAPIDTRAK® – Snow blower

Testiranje uređaja Uputstvo za upotrebu Specifikacije

Clearing Width: 71 cm / 28"

Traction Drive: Mechanical RAPIDTRAK

Made for lots of snow and maximum traction

Pure power against snow. When you get behind your PLATINUM, you’ll want to keep going – driveway after driveway. These units were built for high-volume workloads, hence their standard hand-warmers and Super High Output (SHO) impellers. The PLATINUM Series is loaded with plenty of other features sure to fit your snow removal needs.

Featuring a wide 71cm (28″) clearing width that moves 77 tonnes of snow per hour
Powerful 369cc Ariens AX EFI engine
Blows snow up to 17 m
36 cm (14″) auger and impeller diameter
Tall housing height of 53 cm for deeper snow
Auto-Turn trigger-less steering
Interlocking handles for one-handed operation
Ariens exclusive Rapidtrak™ technology is capable of tackling any terrain

Einsätze

RapidTrak™ AutoTurn® SHO blower wheel Electric start

Features & Benefits

Heated handgrips

Dash-controlled heated handgrips keep your hand warm for greater control and extra comfort for longer.

Auto-turn steering

Drive straight ahead with the rear axle locked for maximum grip. As soon as you steer the machine, the axle is unlocked and turning on the spot is child's play. A patented invention from Ariens.

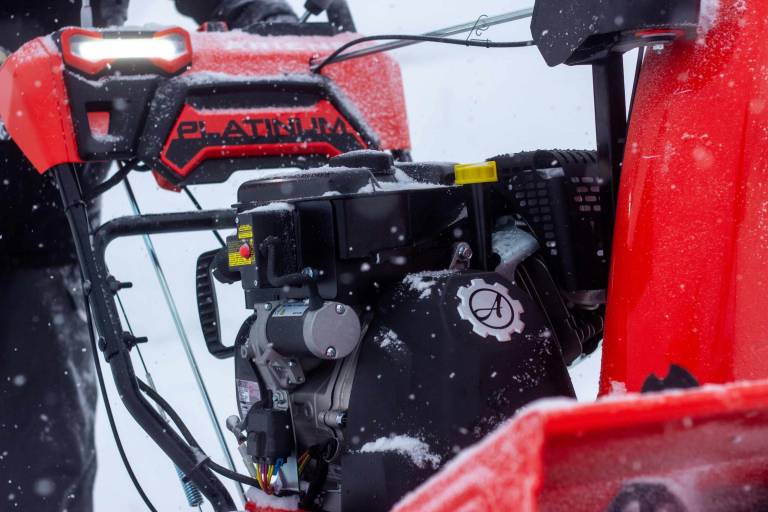

EFI Engine

The Electronic Fuel Injection (EFI) engine starts easier and is more fuel efficient, with faster power adjustment. Standard on the PLATINUM series models.

LED Headlight

Ultra-bright lighting comes standard on all Platinum Series Sno-Thro® models.

SHO Impeller

Ariens SHO technology means Super High Output. Or to put it more simply: the bucket wheel is particularly powerful and throws the snow from the upstream milling machine faster and further. Up to 83 tons/hour max.

Quick-Turn chute rotation

Turn your chute instantly with the push of a button.

Tehnički podaci

Model Number 921335

Engine Ariens AX 369 cm³ EFI

Stage Type Two Stage

Engine Displacement 369

Maximum Power 7,5 / 10,2 kW/hp @ 3,650 rpm

Max. Torque 23,1 Nm

Starting System 230 V & Recoil

Traction Drive Mechanical RAPIDTRAK

Drive Axle Auto-Turn

Gears Forward / Reverse 6 / 2

Clearing Width 71 cm / 28"

Throwing distance 0.9 - 16.7 m

Tonnes per hour 77

Chute Rotation Quick Turn, 200°

Auger Diameter 35.6 cm

Auger Type Steel Serrated

Auger housing 28" (71 x 53 cm)

Tyre size 16 x 4.8-8"

LED Light 1

Handle heating

Double belt drive

SHO impeller

Skid Shoes Steel Reversible

Scraper Bar Steel Adjustable

Deflector Control Remote

Lenght 149

Width 76 cm

Height 115 cm

Weight 128 kg

Gear Case Warranty 5 Year Residential / 1 Year Commercial

Product Warranty 3 Year Warranty / 90 Day Commercial

Zadržavamo pravo promena u tehnologiji, opremi i cenama. Na osnovu informacija ili ilustracija ne mogu se izvesti nikakve tvrdnje. Model na fotografiji može se vizuelno razlikovati od modela u prodavnici.

Dodaci

Snow cab

Protect yourself from the elements with a spacious, rugged, steel-frame Ariens Sno-Thro® cab. For all models.

Snow chains kit

Ultra-grip snow chains for strong traction on ice and packed snow. Available for all wheels.

Non abrasive skid shoe

Durable polyethylene material providing protection on decorative and sensitive surfaces around your home from scratches and damage.

LED dash headlight

Ariens OEM LED headlight replacement kit to be used on all Ariens snow-blowers model years 2011 and newer that have halogen light original.

Front weight kit - 4,5kg

In case of firm snow, the additional weight on the auger housing increases the pressure of the scraper edge to the ground.

Drift cutter kit

For high and heavy snowdrifts. The blades cut lateral snow that is higher than the diameter of the auger. For DELUXE, PLATINUM and PROFESSIONAL.

Clean out shovel with brush

The Ariens Clean-Out Tool cleans snow and ice from the discharge chute and impeller of your Ariens snow blower.

Snow Clean out shovel

If there is built-up snow and ice on the discharge chute and impeller of your Ariens Sno-Thro, the Clean-Out Spaded Tool is the perfect accessory to help remove it.

Cover snow blower

Designed to protect your investment, the Ariens snow cover provides year-round protection for your Ariens snow blower. Ariens covers are constructed of tough, durable, washable and tear-resistant 300 denier polyester.
