MAMMOTH 850

testing a deviceOperator's manualData sheet

The versatile implement carrier for winter service.

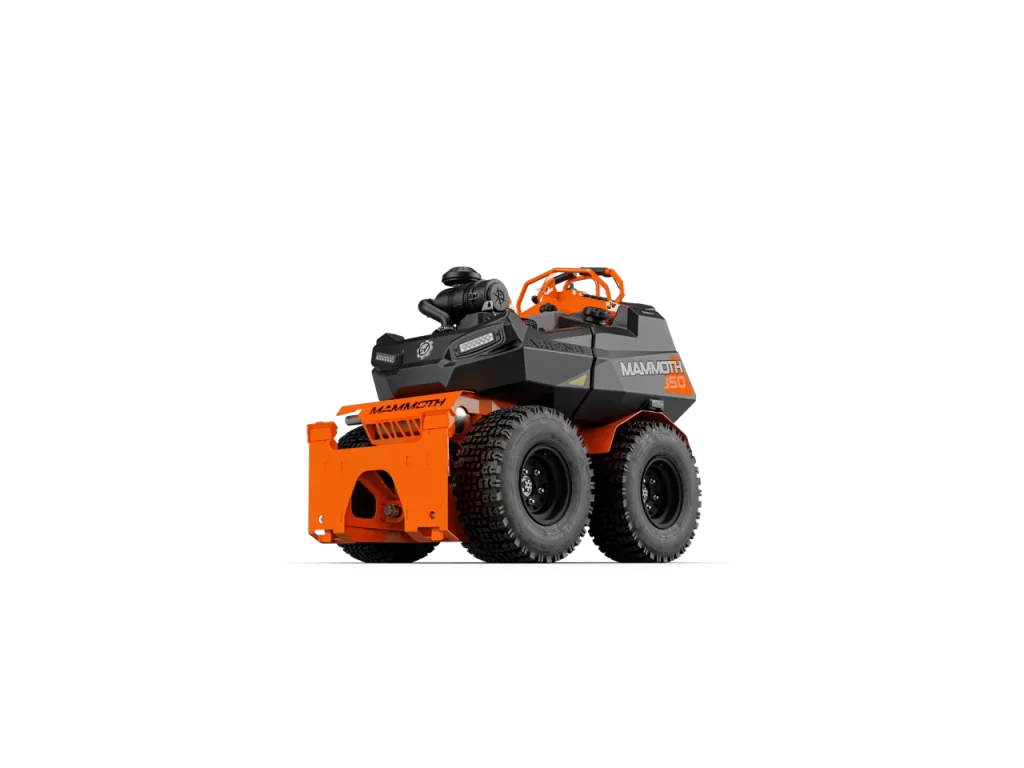

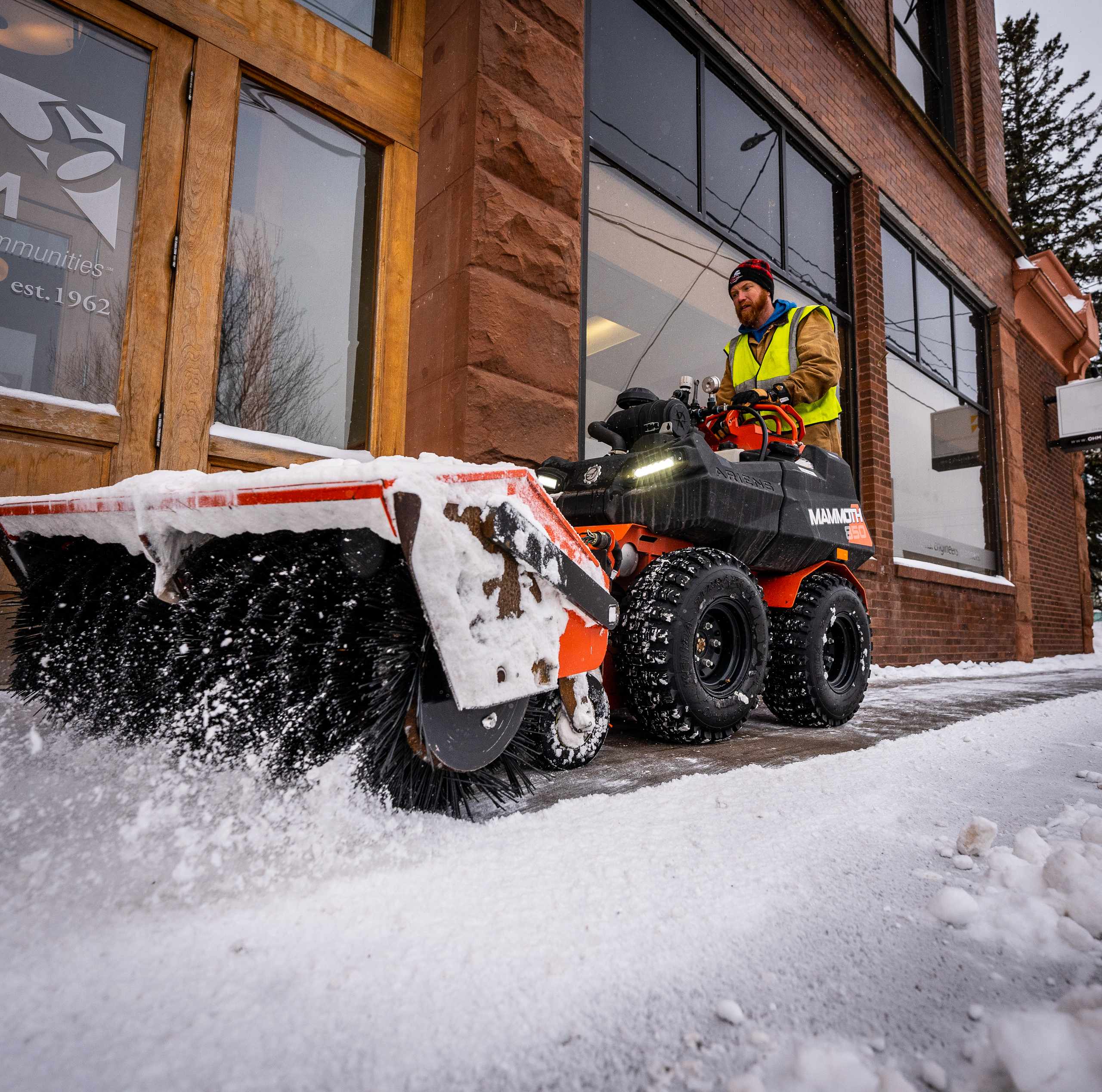

The Ariens MAMMOTHTM Series, a premier heavy-duty snow removal vehicle, is designed for the most demanding tasks. Equipped with a potent 28.5hp Kawasaki 850V-EFI engine, it delivers unmatched efficiency and strength in snow clearing. Its four-wheel drive, supported by robust 22” Terra-trac tires, provides exceptional traction and maneuverability in challenging snowy landscapes. The Mammoth Series offers diverse attachments, such as plow blades and snow blowers, catering to various snow removal requirements. This versatility and power make it a top choice for professional and commercial snow clearing operations.

Powerful Engine: Equipped with a 28.5hp Kawasaki 850V-EFI engine for efficient, high-performance snow clearing.

Advanced Traction: Features four-wheel drive with 22” Terra-trac tires for superior maneuverability in snowy conditions.

Versatile Attachments: Offers a range of tools including plow blades and snow blowers, perfect for different types of snow removal tasks.

Features & Benefits

Best-in-class engine

29.5 hp Kawasaki 850V-EFI engine, and Electronic Fuel Injection for cold days and reliable starting.

Four-wheel driven power

Parker HP2 Pumps and Parker Engines provide power and control to all four wheels.

Convenient dash layout

Controls are at your fingertips. One hand drives while the other works the attachment joystick. Heated hand grips come standard.

Technical Data

Model Number 951301
Engine Kawasaki® 850V EFI
Engine Displacement 852
Maximum Power 21,7 / 29,5 kW/hp @ 3,600 rpm
Max. Speed Forward / Backward 12,9 km/h / 6,4 km/h
Max. Torque 62
Starting System Electric
Traction Drive Hydrostatic, 4WD
Gears Forward / Reverse fully variable
LED Light 2 LED front, 1 LED back
Handle heating
Hour Meter
Engine Oil SEA 10W-40
Lenght 147 cm; 174 cm with platform
Width 91 cm
Height 128 cm
Weight 495 kg
Fuel capacity 37,1 l
Product Warranty 2 Year or 500 Hours
Attachments System ARIENS "SNOWZILLA" Quick-attachement system
Attachment Lift Electric
Attachments Drive PTO with electric clutch
Attachment Adjustment Electric joystick control
Changes in technology, equipment and price are reserved. Of information or illustrations no claims can be derived.
