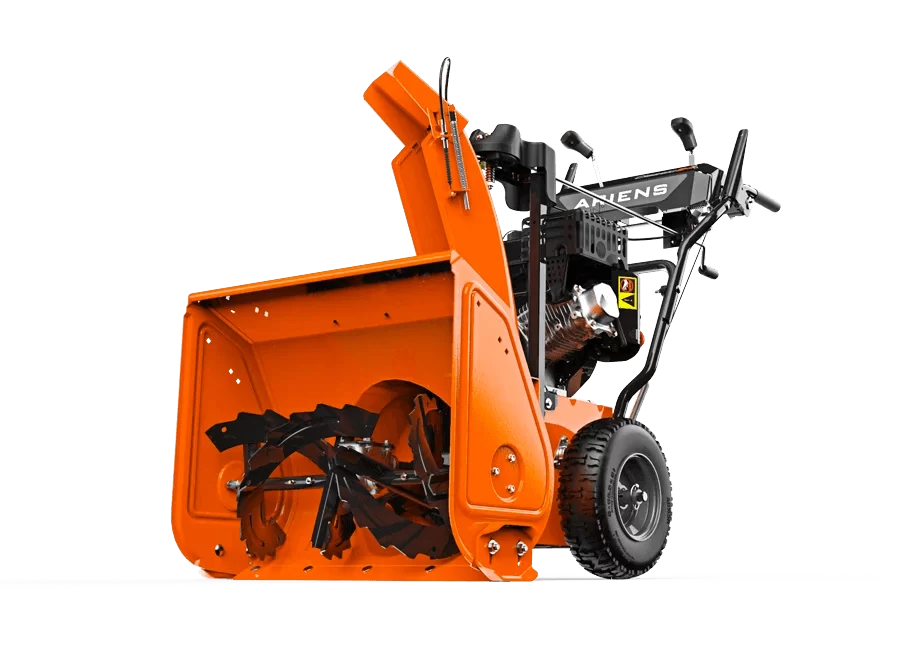

CLASSIC 24 - Snow blower

testing a device Operator's manual Data sheet

Clearing Width: 71 cm / 28"

Traction Drive: Mechanical

Simple and robust. Made for many winters and your property.

The forecast is calling for nothing it can’t handle.

All-steel construction yet lightweight and easy to control, this machine was made for serious snow removal. Its interlocking levers let you operate one-handed when throwing snow and driving, while its steel serrated auger makes a quick meal out of whatever mother nature dishes out. Heavy and wet? Light and fluffy? The CLASSIC throws it all.

The CLASSIC 24 is so robustly built that it will provide years of service.

Clearing width 60 cm (24″)
Powerful 208 cm³ Ariens engine
230 V electric start and rope start as standard
Maximum capacity: 52 tonnes per hour
The user-friendly design allows the driver to operate the machine comfortably and easily with one hand
Wheel drive without differential, one wheel can be disengaged via a safety plug.

Features & Benefits

All-steel construction

From the handlebars to the housing to the serrated auger, the Classic’s robust, all-steel construction is built to last decades.

Product Warranty

Three-year residential, 90-day commercial warranty. The peace of mind that Ariens has you covered.

Remote chute and cap

A 2.5X quick-turn chute and 205° of rotation puts snow in its place.

Ariens AX 208cc engine

Strong and efficient, Ariens’ 9.5 foot-pounds of torque moves snow with ease.

Electric start

Push-button starting for quick, easy use in the most extreme temperatures.

Warranty

Ariens is known across the globe for manufacturing durable, high-performance machines – and our warranty system in the EMEAA region reinforces that reputation. When professionals and homeowners invest in Ariens Zero-Turn mowers or snow throwers, they aren’t just buying powerful equipment – they’re gaining access to one of the most trusted warranty programs in the industry.

Technical Data

Model Number 920328

Engine Ariens AX 208 cm³

Stage Type Two Stage

Engine Displacement 208

Maximum Power 4,9 / 6,7 kW/hp @ 3,650 rpm

Max. Torque 12,78 Nm

Starting System 230 V & Recoil

Traction Drive Mechanical

Drive Axle Lockable

Gears Forward / Reverse 6 / 2

Clearing Width 71 cm / 28"

Throwing distance 0.9 - 12.2 m

Tonnes per hour 52

Chute Rotation 2,5 x Quick Turn, 205°

Auger Diameter 27.9 cm

Auger Type Steel Serrated

Auger housing 24" (61 x 50 cm)

Tyre size 13" x 4"

Skid Shoes Steel Reversible

Scraper Bar Steel Adjustable

Deflector Control Remote

Lenght 132

Width 67 cm

Height 113 cm

Weight 80 kg

Gear Case Warranty 3 Year Residential / 90 Day Commercial

Product Warranty 3 Year Residential / 90 Day Commercial

Changes in technology, equipment and price are reserved. Of information or illustrations no claims can be derived.

Accessories

Snow cab

Protect yourself from the elements with a spacious, rugged, steel-frame Ariens Sno-Thro® cab. For all models.

Heated hand grips

Stay comfortable in the coldest conditions with these ergonomically designed heated handle grips. On/off switch included. For CLASSIC and COMPACT.

LED dash headlight

Ariens OEM LED headlight replacement kit to be used on all Ariens snow-blowers model years 2011 and newer that have halogen light original.

Front weight kit - 4,5kg

In case of firm snow, the additional weight on the auger housing increases the pressure of the scraper edge to the ground.

Shear bolt

Original shear bolt. For CLASSIC, COMPACT-, DELUXE-, PLATINUM und PROFESSIONAL models.

Clean out shovel with brush

The Ariens Clean-Out Tool cleans snow and ice from the discharge chute and impeller of your Ariens snow blower.

Snow Clean out shovel

If there is built-up snow and ice on the discharge chute and impeller of your Ariens Sno-Thro, the Clean-Out Spaded Tool is the perfect accessory to help remove it.

Cover snow blower

Designed to protect your investment, the Ariens snow cover provides year-round protection for your Ariens snow blower. Ariens covers are constructed of tough, durable, washable and tear-resistant 300 denier polyester.

Floormat 83x83cm

Protect the floor of your garage or shed from fuel, oil, rust spots and scratches with this heavy duty floor mat.

Non abrasive skid shoe

Durable polyethylene material providing protection on decorative and sensitive surfaces around your home from scratches and damage.
