ARROW 36

Cutting Width: 91 cm (36")
Deck Type: Side Discharge

Maximal manövrerbarhet på lutande ytor

Stand-on-klippare är bekväma och snabba – men framför allt kompakta, smidiga och yteffektiva. Din rygg och dina muskler kommer att tacka dig för den upprätta arbetsställningen.

Med sin Kawasaki FS600-motor och ett 91 cm (36″) klippdäck är ARROW 36 det professionella valet för klippning på alla typer av ytor.

  • 91 cm (36″) klippdäck tillverkat av 4,5 mm stålplåt.
  • Drivs av en Kawasaki FS600 V-Twin 600 cc-motor.
  • Höjdjustering via fotpedal och stift i 15 lägen.
  • Tillbehör finns tillgängliga för utökad funktionalitet.
  • 5 års eller 1000 timmars garanti – ingen timbegränsning under de första 2 åren**.



Einsätze

PRO Petrol Optional mulching kit Stand-on (stående plattform) Side discharge Fladt terræn Ujævnt terræn Kupert terreng Medium-sized areas Large areas

Merkmale & Vorteile

Easy access and high manoeuvrability

Both the 81 cm (32″) and 91 cm (36″) mowing decks provide access to hard-to-reach mowing areas and make it easier to work in confined spaces. Mounting and dismounting takes just seconds.

Folding platform

The upright position of the driver on the platform offers the user a better view of the cutting deck than with a ride-on mower. Vibrations and impacts on the operator's back are reduced - a working day is less stressful. The platform's folding mechanism allows a quick transformation from a ‘stand-on’ to a ‘walk-behind’ mower, giving the user maximum versatility in narrow and low passages.

Adjustable speed control

Enables the driver to limit the maximum speed of the machine in confined working environments.

Operating elements

All functions are within easy reach and ergonomically controllable from the driver's position.

Cutting height adjustment

Less effort required to raise the mower deck, a combination of foot pedal and hand lever and a vertical pin system make it easier to adjust the cutting height.

Premium engine

A Kawasaki FS600 V-Twin premium engine provides power, performance and fuel efficiency.

Lower center of gravity

The geometry and weight distribution ensure greater stability on inclines and a more pleasant feeling of safety for the rider.

Technische Daten

Model Number 994303
Engine Kawasaki® FS600 V-Twin OHV
Engine Displacement 603 cm³
Drive System Hydro-Gear® ZT-3100 Transaxles
Maximum engine Power 12.7 kW / 17 hp at 3,600 rpm.
Fuel Capacity 22,7 l
Max. Speed Forward / Backward 12.8 km/h / 4.8 km/h ( 8 mph / 3 mph)
Deck Type, Rear discharge / Side discharge /
Mulching Kit Valfritt
Deck Material 4,6 mm stålplåt
Deck Construction welded
Deck Lift System foot pedal and hand lever
Number of blades 2
Spindle Material Smidd aluminium
Spindles drive V-rem
Spindle Clutch Electric Ogura®
Cutting Width 91 cm (36")
Cutting Hights 3.8 cm - 12.7 cm (1.5" - 5.0")
Cutting Positions 15
Front Wheels 11 x 4.00-5 semi-pneumatic
Rear Wheels (inch) 18 x 8.5 - 8
Driver Platform Upphängd, hopfällbar
Hour Meter
Weight 357 kg
Length 160 cm, driver plattform folded; 190 cm, driver plattform unfolded
Width 124 cm m/ utkast; 94 cm m/ mulch-kit
Height 122 cm
Limited Warranty Machine 5 years / 1000 hours, no hour limit in the first 2 years
Warranty Battery (Years) 3
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Zubehör

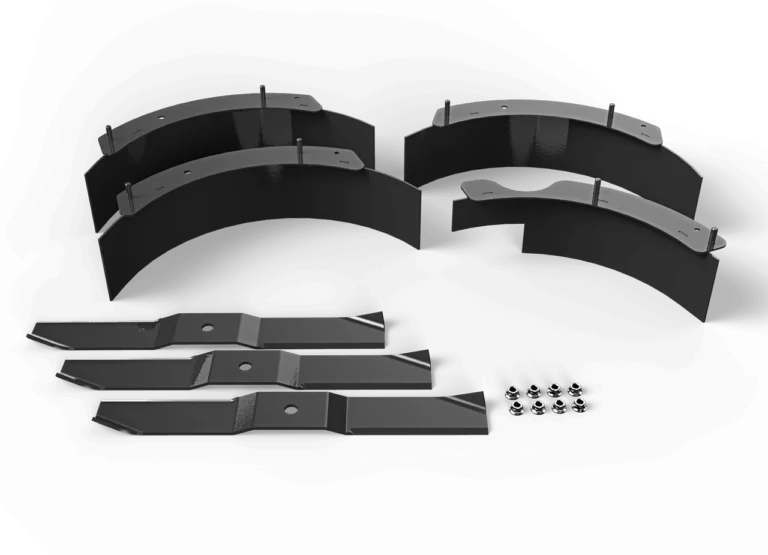

Mulch kits

For installation in side discharge cutter decks. With every rotation of the blade, the mower sucks up grass in the closed cutting chamber, where the clippings are cut several times before they fall finely chopped onto the lawn.
