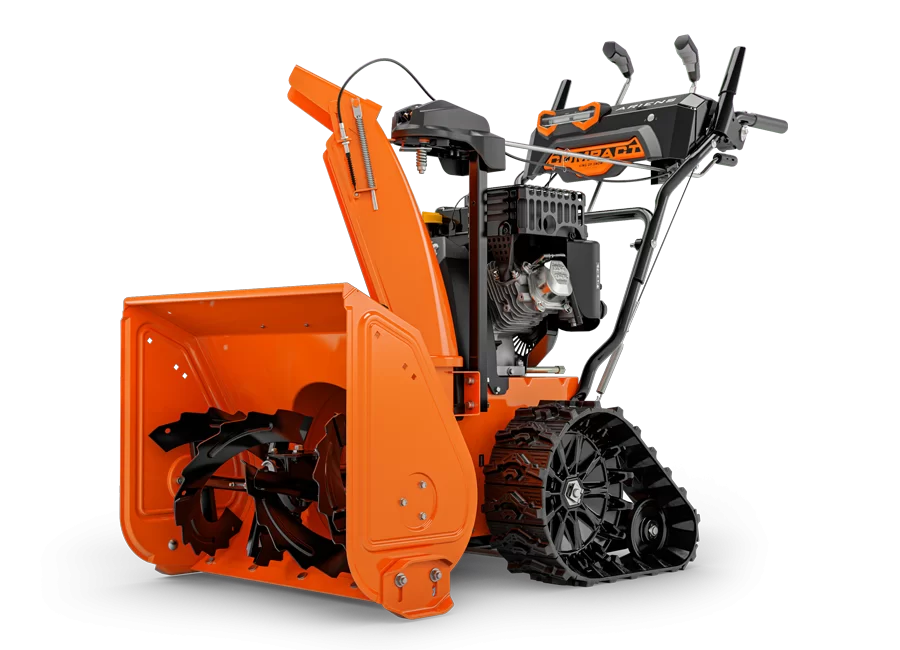

COMPACT 24 RAPIDTRAK

Clearing Width: 61 cm / 24"
Traction Drive: Mekanisk RAPIDTRAK

Lätt att manövrera och enkel att hantera med starkt fäste

Ta dig an snön med kraft. Låt dig inte luras av storleken – i varje Ariens® COMPACT finns gott om styrka. Den är konstruerad för att vara lätt att ta fram för ett tunt lager snö, men tillräckligt pålitlig för att hantera upp till 52 ton i timmen. COMPACT-serien är skapad för smidig manövrering utan att kompromissa med Ariens legendariska kraft.

  • Ariens® AX 208 cm³-motor med elstart
  • Robust växelhus i gjutjärn
  • Ariens exklusiva RapidTrak™-teknik klarar alla typer av underlag

Einsätze

RapidTrak™ AutoTurn® Electric start

Merkmale & Vorteile

All-steel construction

Sturdy, welded steel sheet with pressed beads and reinforced edges are the secret behind the long service life of Ariens snow blowers.

Auto-turn steering

Drive straight ahead with the rear axle locked for maximum grip. As soon as you steer the machine, the axle is unlocked and turning on the spot is child's play. A patented invention from Ariens.

Electric start

You can start the Compact models either with the rope starter or conveniently by pressing a button on the electric starter, which is connected to a 230 V socket. Very convenient at low temperatures.

Gjutjärnsväxellåda

Snäckskruvens växellåda är en hårt belastad del. Vi har lagt stor vikt vid att göra den särskilt stabil. Tack vare dess hållbarhet erbjuder vi även 5 års garanti på den.

Snødekk med høy gripeevne

Spesialmønstret snøprofil gir maksimal trekkraft. Diameter 38 cm (15").

Reversible steel skid shoes

Heavy-duty steel skid shoes are reversible and can be used on both sides. Sturdy and durable.

Technische Daten

Model Number 920330
Engine Ariens AX 208 cm³
Stage Type Tvåstegs
Engine Displacement 208
Maximum Power 4,9 / 6,7 kW/hp @ 3,650 rpm
Max. Torque 12,78 Nm
Starting System 230 V & snörstart
Traction Drive Mekanisk RAPIDTRAK
Drive Axle Auto-Turn
Gears Forward / Reverse 6 / 2
Clearing Width 61 cm / 24"
Throwing distance 0.9 - 12.2 m
Tonnes per hour 52
Chute Rotation 2,5 x Quick Turn, 205°
Auger Diameter 27.9 cm
Auger Type Serraterat stål
Auger housing 24" (61 x 50 cm)
Tyre size 12" Traks
LED Light 1
Skid Shoes Vändbart stål
Scraper Bar Justerbart stål
Deflector Control Remote
Lenght 135
Width 67 cm
Height 110 cm
Weight 100 kg
Gear Case Warranty 5 år privat / 1 år kommersiell
Product Warranty 3 år privat / 90 dagar kommersiell
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Zubehör

Snow cab

Protect yourself from the elements with a spacious, rugged, steel-frame Ariens Sno-Thro® cab. For all models.

Heated hand grips

Stay comfortable in the coldest conditions with these ergonomically designed heated handle grips. On/off switch included. For CLASSIC and COMPACT.

LED dash headlight

Ariens OEM LED headlight replacement kit to be used on all Ariens snow-blowers model years 2011 and newer that have halogen light original.

Front weight kit - 4,5kg

In case of firm snow, the additional weight on the auger housing increases the pressure of the scraper edge to the ground.

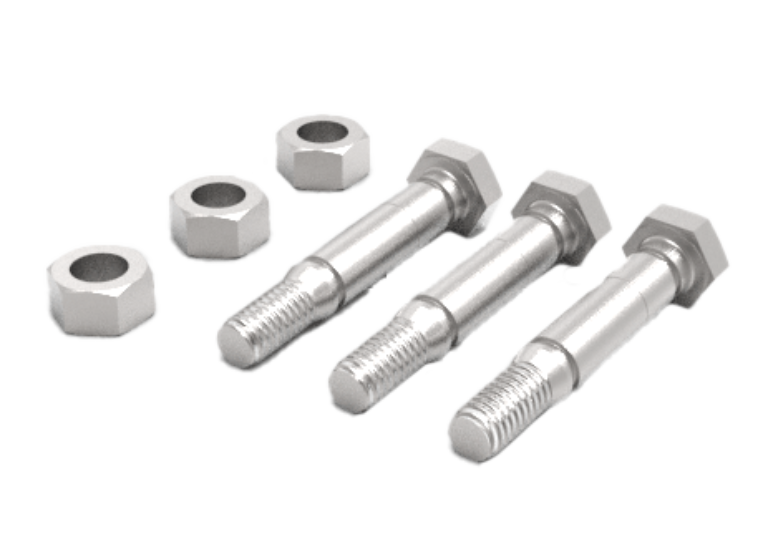

Shear bolt

Original shear bolt. For CLASSIC, COMPACT-, DELUXE-, PLATINUM und PROFESSIONAL models.

Snow Clean out shovel

If there is built-up snow and ice on the discharge chute and impeller of your Ariens Sno-Thro, the Clean-Out Spaded Tool is the perfect accessory to help remove it.

Clean out shovel with brush

The Ariens Clean-Out Tool cleans snow and ice from the discharge chute and impeller of your Ariens snow blower.

Cover snow blower

Designed to protect your investment, the Ariens snow cover provides year-round protection for your Ariens snow blower. Ariens covers are constructed of tough, durable, washable and tear-resistant 300 denier polyester.

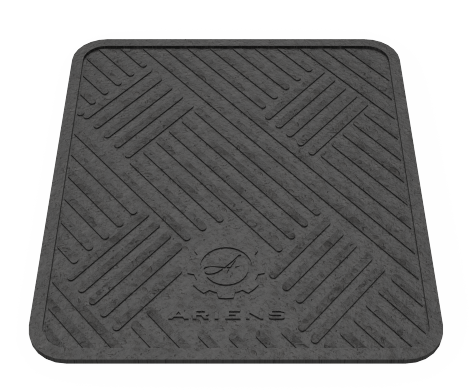

Floormat 83x83cm

Protect the floor of your garage or shed from fuel, oil, rust spots and scratches with this heavy duty floor mat.

Non abrasive skid shoe

Durable polyethylene material providing protection on decorative and sensitive surfaces around your home from scratches and damage.
