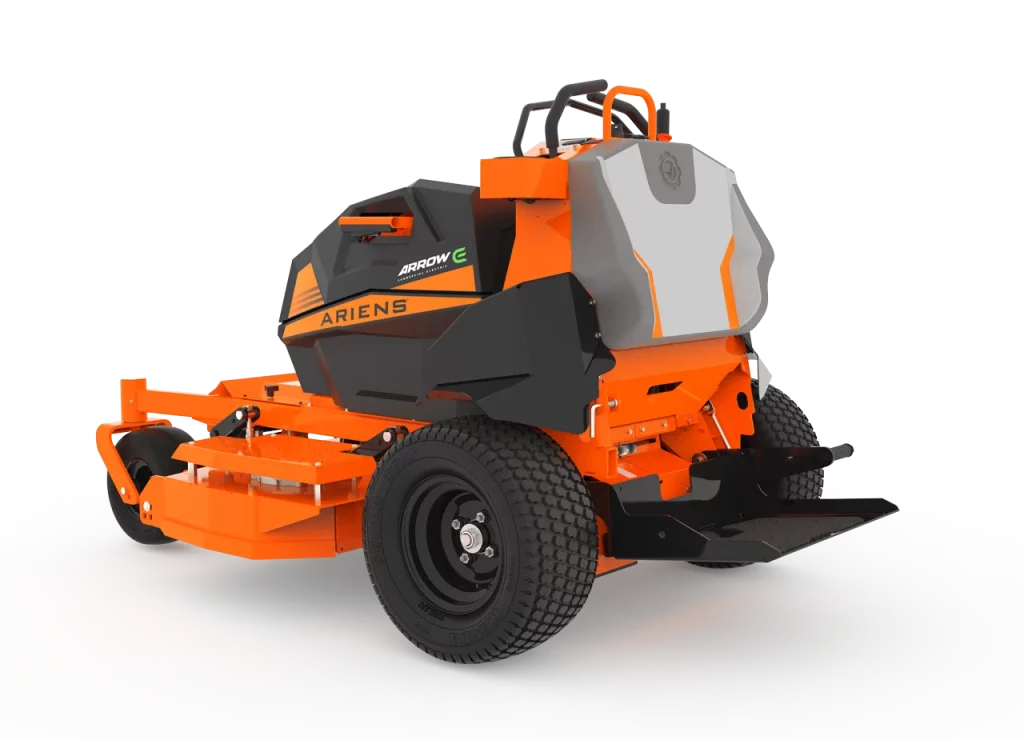

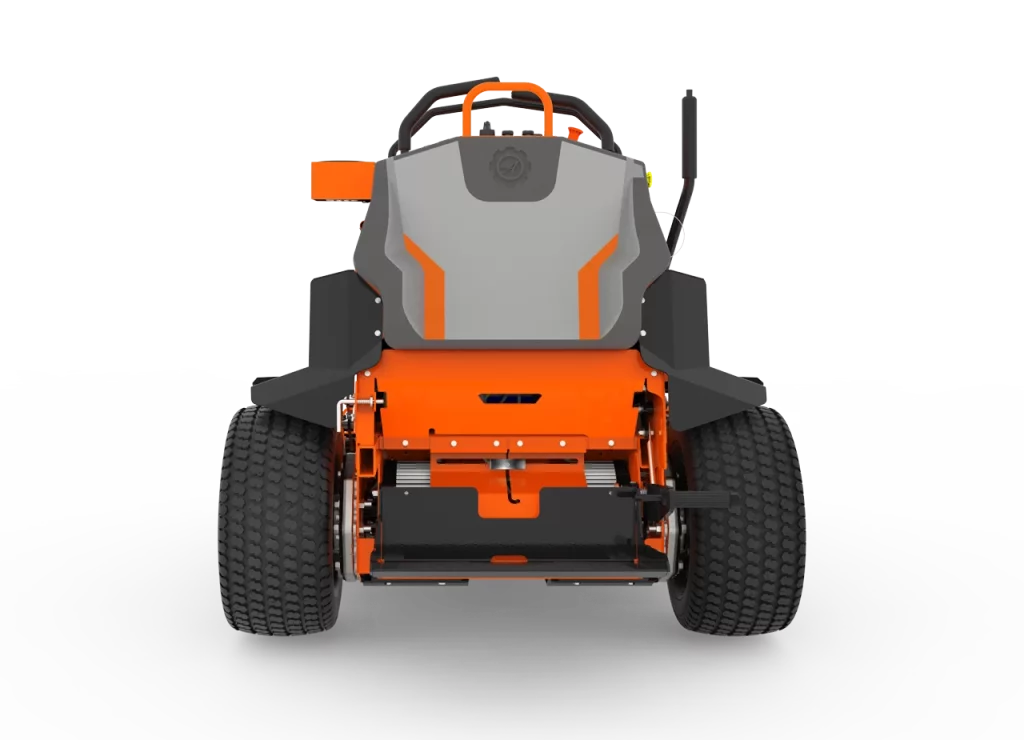

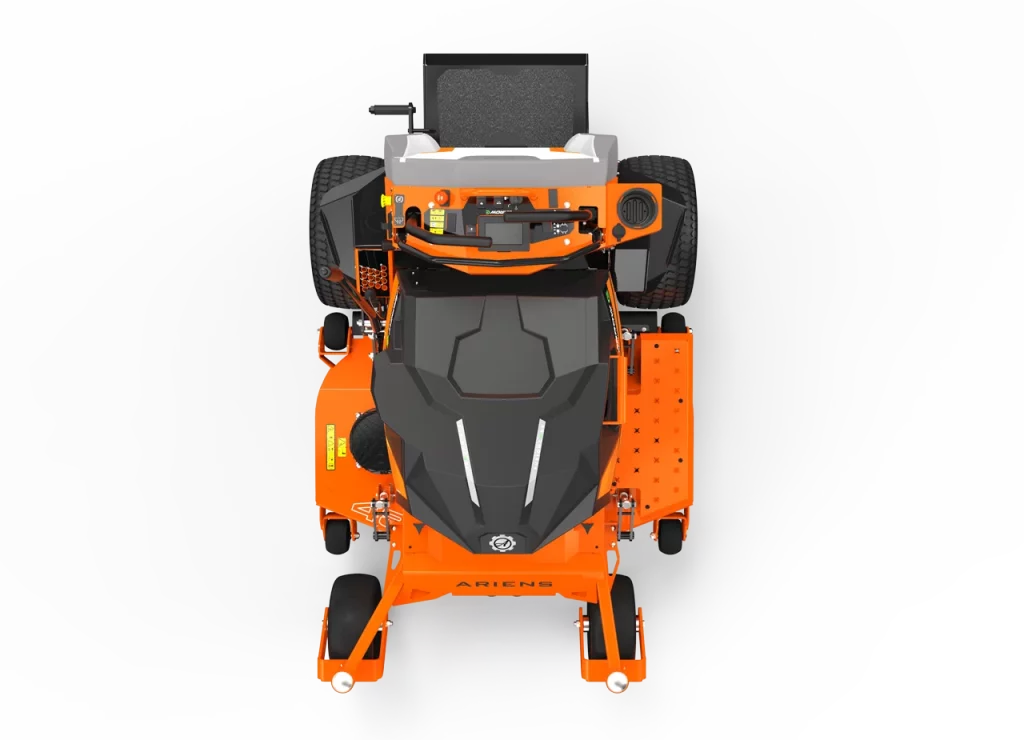

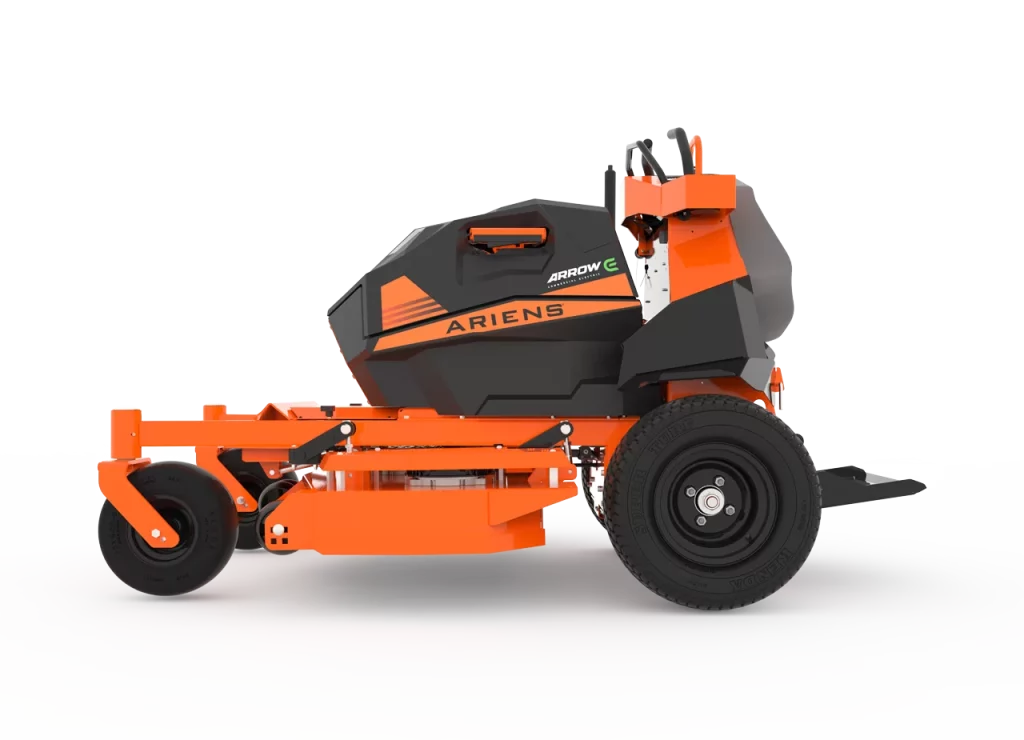

ARROW E Serie

4 individual 56V battery packs of 4 kWh each = 16 kWh total capacity. Premium Panasonic Li-NMC cells.

The ARROW E uses the same four 56V battery packs as the ZENITH E. It delivers optimal performance with just two batteries. Even a single battery is sufficient to move the machine. All four batteries can be recharged from 0–100% in just 5 hours and 20 minutes using premium cells.

The high-performance spindle motors of the knives are equipped with a slip clutch. In the event of a collision with a foreign object, it allows the blade to "slip" and thus protect the motor from damage. If the worst comes to the worst, the cutter shafts and lower bearings can be replaced.

Qualität hat sein Gewicht. Das massive Mähdeck des ARROW E ist aus 4,5 mm starkem Stahlblech geschweißt. Die Höhenverstellung des Decks erfolgt leichtgängig über ein kombiniertes System aus Fußpedal und Handhebel.

The color LED display keeps you constantly up to date.

• Charge status of all batteries
• Operating modes.
• Operating hours counter
• System diagnostics
• Fault messages

No external device is required for diagnostics.

The ARROW E has an ECO mode switch. The highest blade speed is not required when the amount of clippings is low or the driving speed is slow. In this case, use the ECO mode to reduce the blade speed.

The spring-mounted driver's platform can be folded upwards for transportation. It can also be used when working under low-hanging branches or when driving on slopes of up to 20°. This turns the ARROW E into a walk-behind mower in no time. By the way: No suspension system in the world is as good as human legs. This is a major advantage of stand-on mowers for the health of the driver.

All functions of the machine are clearly visible and within easy reach of the operator. The maximum travel speed can be limited via a quick action mechanism with magnetic plug. Also features electric parking brake and two driving speed levels.
